• Model NO.：MT400
• High Speed：10m,Min
• Inverter：ABB, Schneider
• Contact：Schneider
• Haul off：Servo Motor
• Stacke：Winder
• Cutter：Dust Free Cutter
• Relay：Celduc
• Screw/Barrel：Conical
• Capacity：300kg,Hr
• Motor：Weg
• Transport Package：Wood
• Specification：ce
• Trademark：Middle tech industry
• Origin：Zhangjiagang City
• HS Code：84772090
• Production Capacity：30 Unit,Year

Basic Info.

Model NO. MT400 High Speed 10m/Min Inverter ABB/ Schneider Contact Schneider Haul off Servo Motor Stacke Winder Cutter Dust Free Cutter Relay Celduc Screw/Barrel Conical Capacity 300kg/Hr Motor Weg Transport Package Wood Specification ce Trademark Middle tech industry Origin Zhangjiagang City HS Code 84772090 Production Capacity 30 Unit/Year

Product Description

Plastic PVC/UPVC 6 cavities Corner Bead Profile Extrusion Machine

 It special design for the automatic corner bead extrusion line, punching machine and net gluing machine.


With different design, it can design for 2 cavities, 4 cavities, 6 cavities, 8 cavities mould. The extrusion speed can be various from 5m/min-10m/min. And the punching speed can based on the extrusion speed.

And we also absorb European technology with automatic net glue machine.




Working flown of the pipe production line

Technical data

Model/data	Max width	Extruder model	Motor power	Max capacity
MT180	180mm	MT51/105	22kw	120kg/h
MT240	300mm	MT65/132	37kw	260kg/h
MT600	600mm	MT80/156	55kw	400kg/h
MT800	800mm	MT92/188	90/100kw	650kg/h

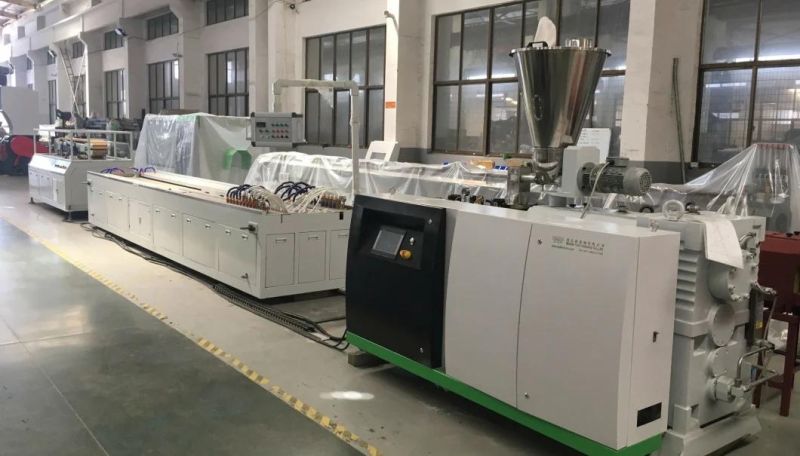

Work flow and detailed configuration:

Feeder	• To feed material into extruder;

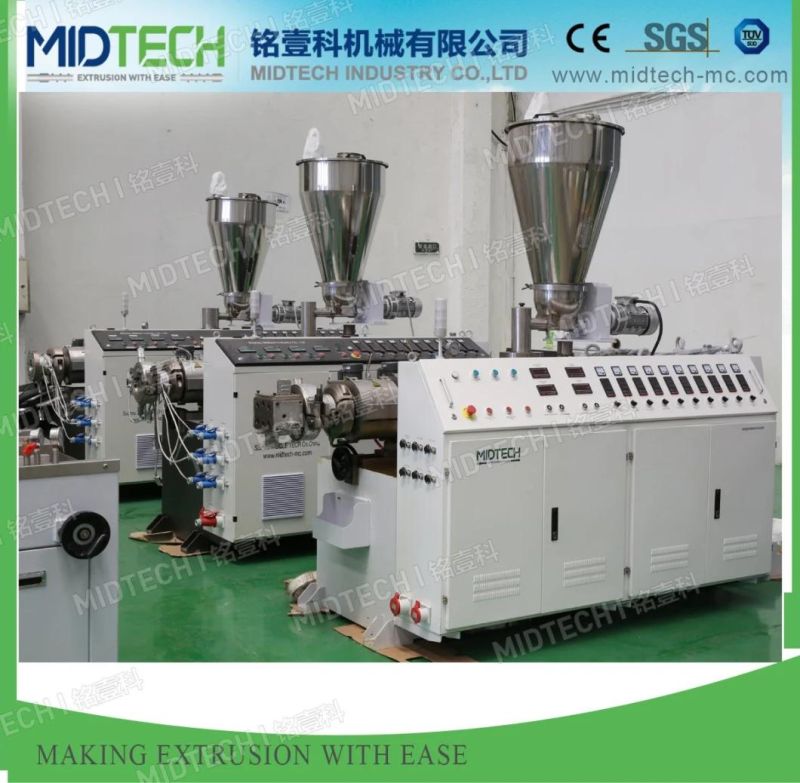

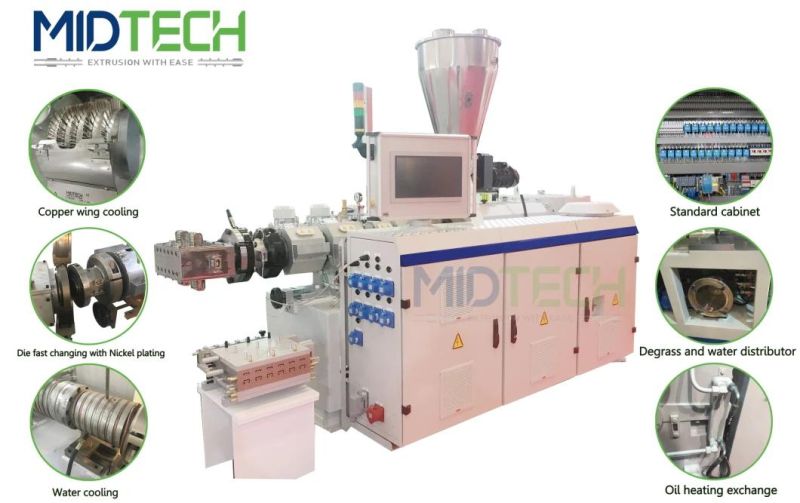

Extruder	•World famous brand electrical component: Siemens, Schneider, ABB etc;  • High torque gearbox with adopts NSK/SKF bearing;  • Siemens/WEG original motor achieved global after service;  • Bimetallic screw and barrel;  • Intelligent PLC controlling system with human-friendly interface.
Die head	• 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile

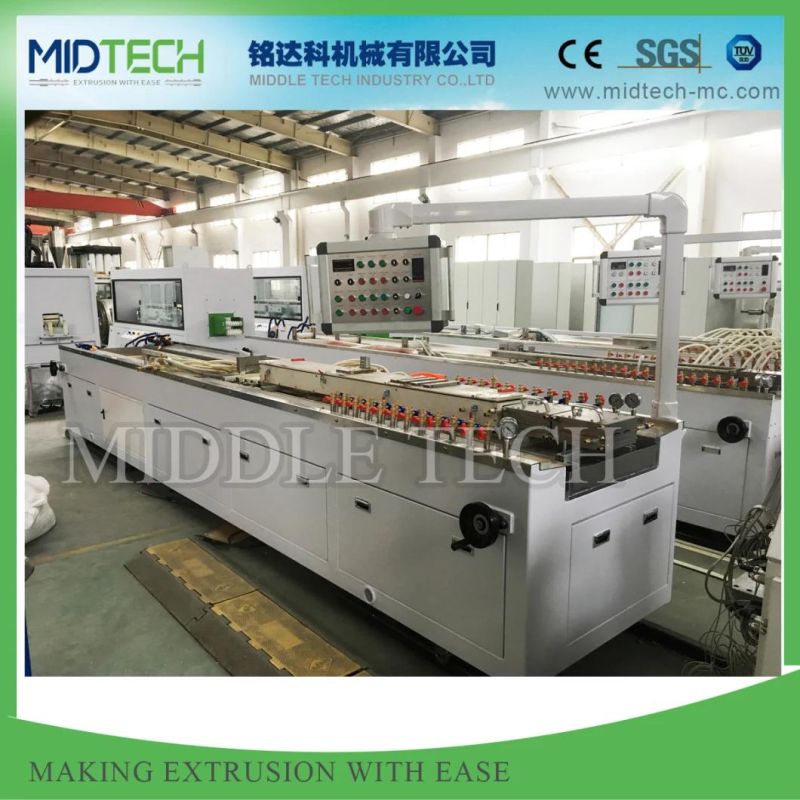

Calibration table	• Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation
Haul off	• Upper/lower caterpillar driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material
Cutter	• Lifting saw cutter with adopts double station dust collection system •Synchronous drivingby air cylinder or servo motor control
Stacker	• Stainless steel304 as touching material • Discharge driving by air cylinder
Online punching machine	• Automatic punching machine with various speed control
