• Model NO.：FT-1000 double layer
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Model：Ft-1000
• Mode：Ft-1200
• Machine Color：Orange or Blue
• Extruder：Double
• Transport Package：Wooden Case,Wooden Block,in Nude
• Specification：CE
• Trademark：Fangtai
• Origin：China
• HS Code：84778000
• Production Capacity：1 Set, Month

Basic Info.

Model NO. FT-1000 double layer Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Model Ft-1000 Mode Ft-1200 Machine Color Orange or Blue Extruder Double Transport Package Wooden Case/Wooden Block/in Nude Specification CE Trademark Fangtai Origin China HS Code 84778000 Production Capacity 1 Set/ Month

Product Description

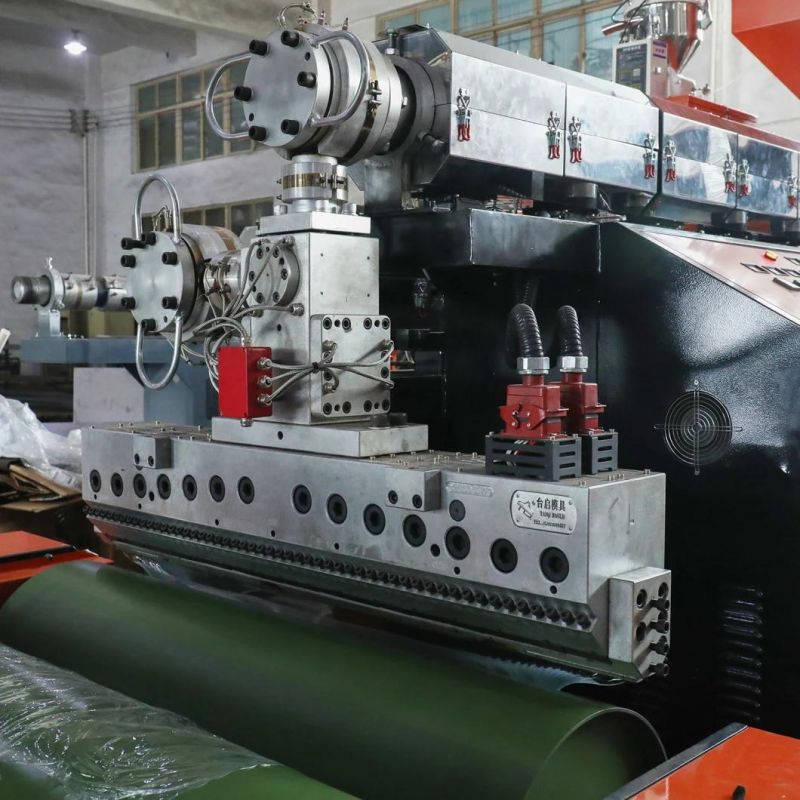

FT-1000 double layer stretch film making machine


Use
stretch film machine/ cling film mchine uses LDPE and LLDPE to produce casting stretch film(could produce one-side sticky film and the other side normal), adopting double screws and double two hoppers. This co-extrusion stretch film is widely used in packing area for architecture, auto parts, hardware parts, etc.

Characteristics

Screw and cylinder are all made of 38 CrMoALA after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.
The cooling device adopts cycle water cooling which provide the best transparent effect of the stretch film

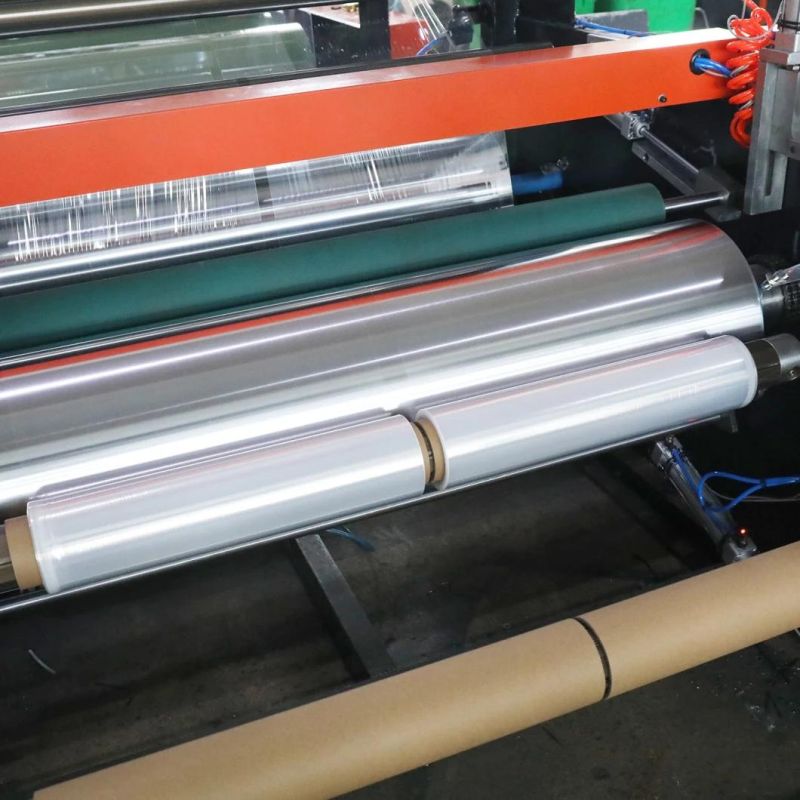

Rewinder adopts with friction-rewinding-type, with cutter device for edge correcting.

OPTIONAL EQUIPMENT
 AUTO DRY HOPPER
GLUE PUMP




Model	FT-500 double extruder	FT-600 double extruder	FT-1000 double extruder
Diameter of Screw Stem	φ55mm*2	φ55mm*2	φ65mm*2
L/D Ration of Screw	30:1	30:1	30:1
Material of Screw & Barrel	38 CrMoALA	38 CrMoALA	38 CrMoALA
Rational Speed of Screw Stem	10-120rpm	10-120rpm	10-120rpm

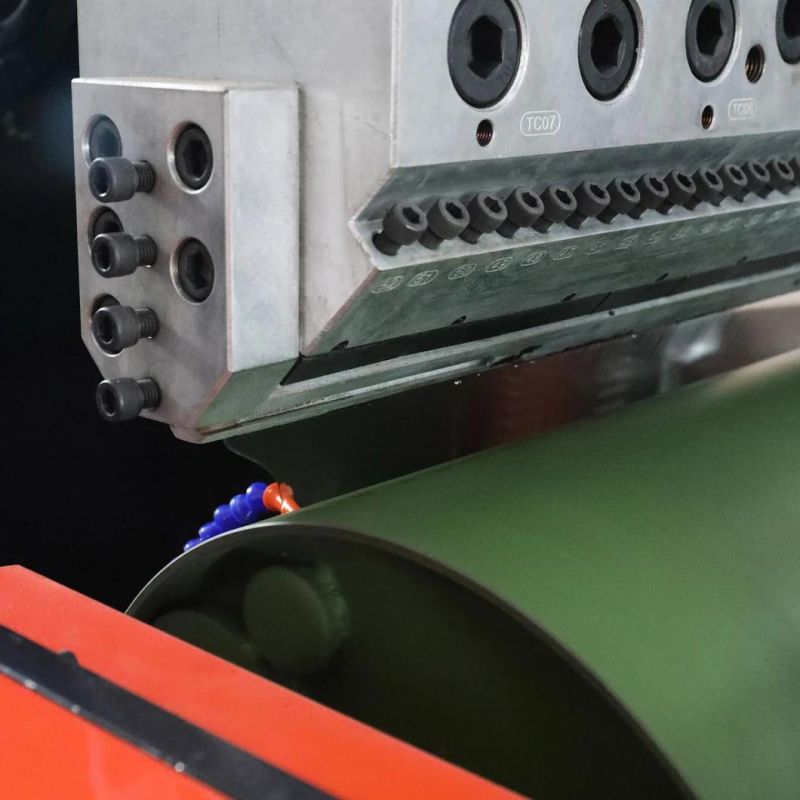

Width of T-die Head	650 mm	750 mm	1250 mm
Heating Way	Casting-aluminum heating device	Casting-aluminum heating device	Casting-aluminum heating device
Width of Traction Roller	650 mm	750 mm	1250 mm
Width of Products	200-500mm	200-600mm	1000mm
Thickness	0.015-0.05mm	0.015-0.05mm	0.015-0.05mm
Main motor power	15kw*2	15kw*2	18.5kw*2
Heating Power	30kw	30kw	51kw
Max. output(kg/h)	40	40	100
Machine weight	3T	3T	5.5T
Overall Dimensions (L*W*H)	4500*2600*2550mm	4500*2800*2550mm	7500*4500*3200mm

Ruian Fangtai Machinery Co., Ltd. is a professional manufacturer of plastic packaging machinery and paper packaging equipment., we have more than ten years of producing machine history. The main products are: Bubble film making machine, stretch film making machine, printing machine, film blowing machine, bag making machine, and so on. Rely on high technology, customer foremost, perfect after-sales service, we produce exquisite machines and equipment, and develop new machines. The bubble film making machine and stretch film making machine have got the CE certification, entering European Union countries.

We hold the mission of "quality comes first, customer foremost", constantly improve their internal mechanisms, and after-sales service system. Pay close attention to internal management; Positive feedback to achieve a virtuous circle, excellent equipment manufacturers and the public.

We also have the customers from worldwide, including Middle East, Asia, and Africa. Our machines are warmly welcome among our customers. We believe that we will do more to meet our customers′ needs with best service. We pursuit mutual benefit and common development and we are willing to work with all sectors to establish long-term and stable business relationships. We sincerely welcome new and old customers, domestic and international presence.



Our Service

Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also  accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing. Our engineer is onlie for helping you with technical support, also our engineer can come to your factory to help you install and test the machine.And we will  sent you manual and video.
Q3. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case  it broken within one year ,we will sent you for free.
FAQ
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
