• Assembly Structure：Integral Type Extruder
• Screw：Multi-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Film Packing or Wooden Box Packing
• Specification：6200 x 2000 x 4000mm
• Trademark：WT
• Origin：China
• Production Capacity：100

Basic Info.

Assembly Structure Integral Type Extruder Screw Multi-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package Film Packing or Wooden Box Packing Specification 6200 x 2000 x 4000mm Trademark WT Origin China Production Capacity 100

Product Description

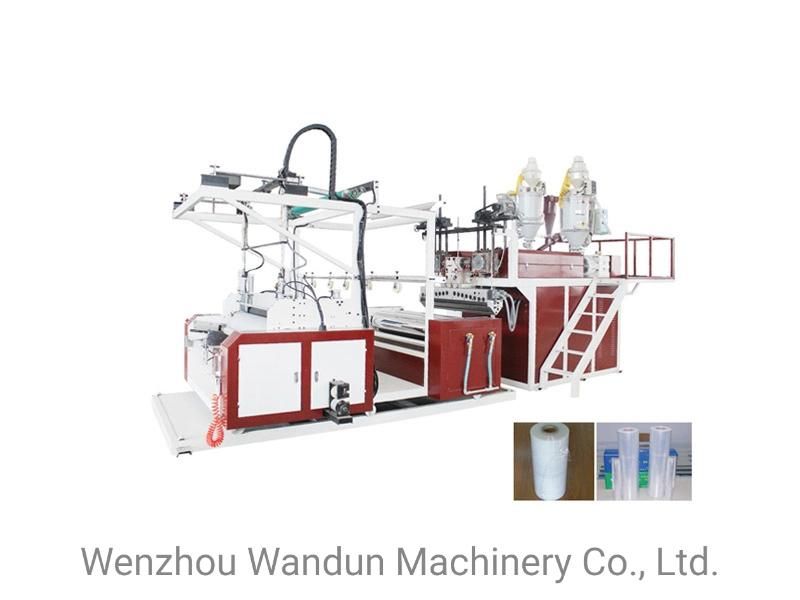

Double layers stretch film extruder /stretch film making machine



Introduction:

·lt is entire frequency conversion control, movement stable. highly effective and the low energy consumption.
·The product adopts the craft of one time forming.
·lt can produce one-side and two-side sticks for stretch film, fresh-keeping film.
·The special side material rollout element by round-trip.

Main Technical Parameter:


Model	WTW-600	WTW-800	WTW-1500
Screw Diameter	50mm*2	55mm*2	90mm/65mm
L/D ratio	32:1	32:1	32:1
Screw Barrel Material	38CRMOLA	38CRMOLA	38CRMOLA
Die width	750mm	1250mm	1850mm
Film Width	600mm	500-1000mm	500-1500mm
Film Thickness	0.015-0.05mm	0.015-0.05mm	0.015-0.05mm
Rollout Diameter	300mm	300mm	300mm
Output	20-50kg/h	50-100kg/h	80-150kg/h
Main Motor Power	7.5kw*2	11kw*2	30kw/15kw
Heating Power	30kw	45kw	55kw
Overall dimension	4800*2000*2600mm	6000*2600*2600mm	7500*3200*3500mm
Total Weight	3500kg	4500kg	6500kg
