Plastic Pipe Parallel Twin Screw Extruder
Jiangsu Beier Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PVC
- Screw：Twin-Screw
- Automation：Automatic
- Computerized：Computerized
- Transport Package：Wood Pallet and PE Film
Base Info
- Model NO.：BRP75,26,90,26,93,28,107,26,110,28,120,26,130,26
- Specification：ISO9001, CE
- Trademark：BEIER
- Origin：China
- HS Code：84772090
- Production Capacity：100sets,Year
Description
Basic Info.
Model NO. BRP75/26,90/26,93/28,107/26,110/28,120/26,130/26 Specification ISO9001, CE Trademark BEIER Origin China HS Code 84772090 Production Capacity 100sets/YearProduct Description
BRP Series Parallel Twin Screw Extruder
Advantages

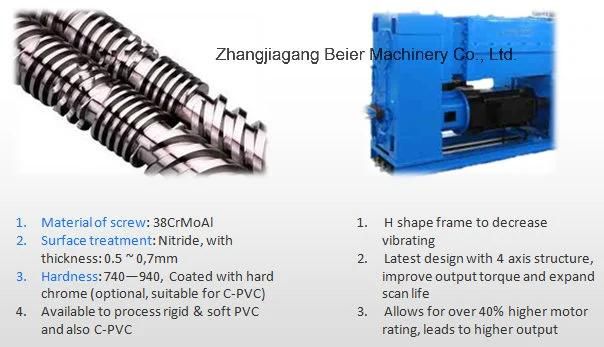

1. Available to rigid and soft PVC included C-PVC
2. Unique screw design to achieve higher plasticizing and products quality
3. Core self-circulation temperature control for screw. More accurate temperature control system
4. Gearbox of high torsion balance to realize stable running, low oil temperature available
5. Automatic and visible circulation system of lubricant on gear box

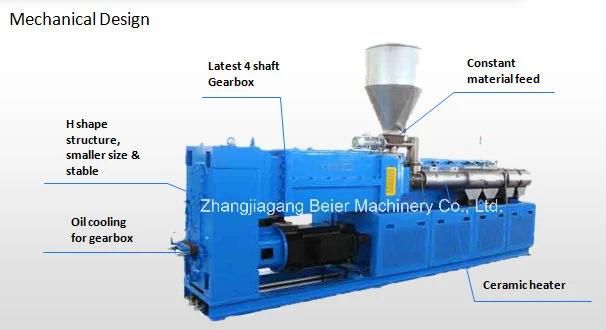

6. H shape frame to decrease vibrating
7. PLC (Simatic Multi Panel) operation panel to ensure synchronization.
8. Energy conservation, easy to maintenance.
Technical Parameter
| Model | BRP75 | BRP90 | BRP93 | BRP107 | BRP110 | BRP120 | BRP130 |
| Screw diamter(mm) | 75 | 90 | 93 | 107 | 110 | 120 | 130 |
| Motor power (kw) | 37 | 55 | 67 | 75 | 90 | 110 | 132 |
| Max.rotating speed(rpm) | 45 | 45 | 41 | 38 | 38 | 32 | 30 |
| L/D | 26:1 | 26:1 | 28:1 | 26:1 | 28:1 | 26:1 | 26:1 |
| PVC pipe output (kg/h) | 350 | 450 | 600 | 800 | 850 | 1100 | 1200 |
