• Model NO.：XS600
• Computerized：Computerized
• Certification：ISO9001:2008, CE, CE, ISO
• Service Life：≥15 Years
• Voltage：380V
• Structure：Vertical
• After-Sales Service：Video Technical Support, Online Support, Engineers
• Transport Package：Wood Case
• Specification：by custom
• Trademark：XINMECHAN
• Origin：China
• Production Capacity：60 PCS,Month

Basic Info.

Model NO. XS600 Computerized Computerized Certification ISO9001:2008, CE, CE, ISO Service Life ≥15 Years Voltage 380V Structure Vertical After-Sales Service Video Technical Support, Online Support, Engineers Transport Package Wood Case Specification by custom Trademark XINMECHAN Origin China Production Capacity 60 PCS/Month

Product Description

Brief introduction
The shredder is also known as the shredder crusher, reduces the size of the shredded material by cutting, tearing and squeezing.

How the shredder works

The shredder uses a gear motor directly connected to the worm, directly mounted on the active shaft of the shredder. The speed of drive shaft is varied through the gear transmission, so that the main drive shaft spiral tooth plate forms a relative motion. The spiral tooth discs on the main drive shaft are staggered so that the material entered will be squeezed, torn and cut, thus broken to smaller particles.

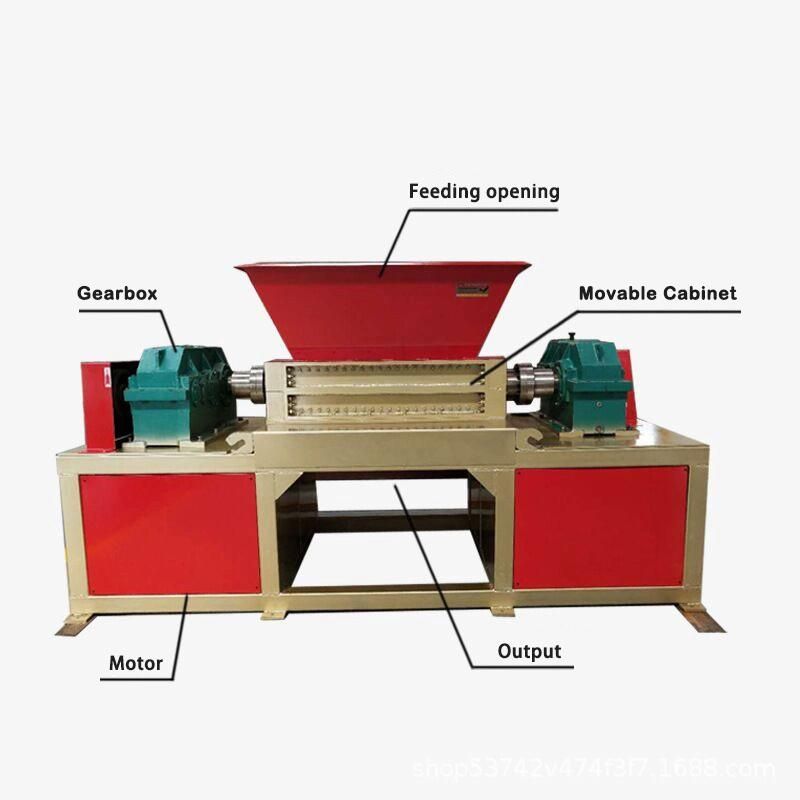

Parts of the shredder

1. Body
The main body of the equipment is produced in the whole one, using high-quality steel plate welding to eliminate the stress, to ensure the stability of the equipment in the long heavy load.

2. Movable knife / fixed knife
The tool material is made of alloy tool steel forging blanks, precision machining through multiple heat treatment and low temperature frozen heat treatment technology, and the overall toughness hardness is consistent, can be repaired repeatedly to ensure the performance and service life. The fixed knife is mounted with hooks to optimize the tool replacement function and make tool maintenance replacement more efficient.

3. Bearings/seals
The housing is flattened and disassembled, can quickly remove movable knife, fixed knife, bearing and other components, easy to maintain and replace tools. The unique sealing structure effectively blocks the contact between broken materials and grease. Even if shredding liquid materials, the bearings and gears can also be protected.

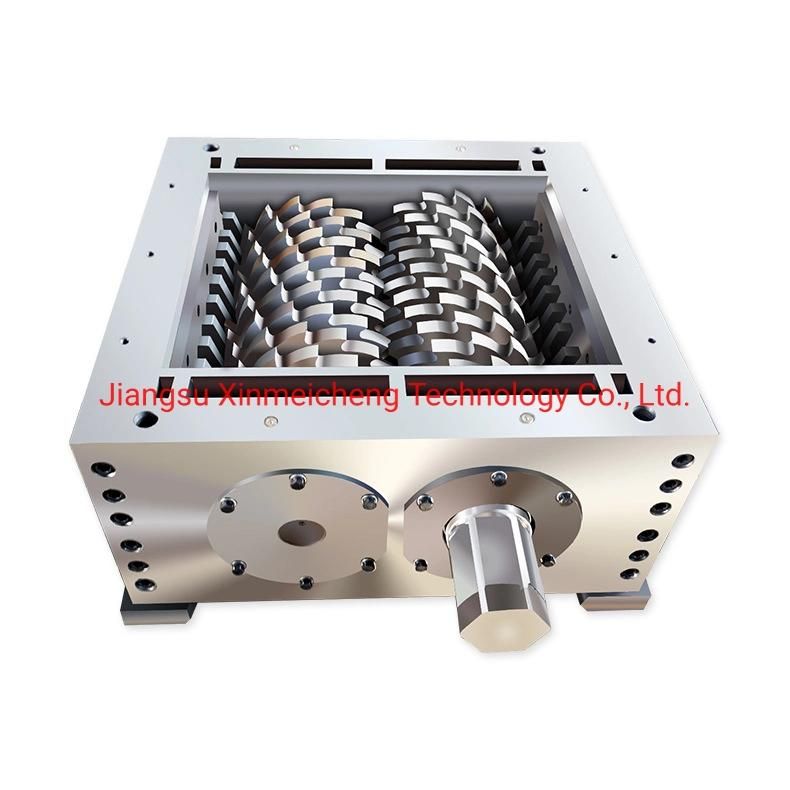

4. Knife shaft
The knife shaft is made of high-strength heavy-duty steel material, more reasonably match with tools for cutting to provide a strong power.

Application

The shredding machine is used for shearing urban household waste, solid hazardous waste and industrial solid waste etc.

Shredder performance features

1. This product can shred large blocks of material, basket material, pipe, sheet, wood, tires, scrap metal barrels, large roll film which a shaft shredder is difficult to break.
2. The outer frame is of thick plate precision processing of the combination of the structure, with large angle hexagonal column of the powerful rotating shaft, large caliber solid input hopper. So you can rest to throw large-scale raw materials into the machine.
3. The rotary knife is designed and processed under consideration of the thickness, shape, order and other aspects, ensuring high strength, sharp blade with excellent work performance.
4. The machine is operated with low noise, less dust.
5. The tool blades are made by special alloy steel, durable.


 Specification sheet

Model	Knife spec. (mm)	Power	Blade Qty	Transmission	Rotary speed	Overall size(m)
300 Type	Φ100*20	3kw	12	250	13-20	1.2*0.45*1.2
400 Type	Φ200*20	4kw	18	250	13-20	1.3*0.5*1.25
450 Type	Φ160*20	5.5kw	20	250	13-20	1.35*0.57*1.3
500 Type	Φ200*20	7.5kw	25	300	13-20	1.7*0.55*1.35
600 Type	Φ220*20	11kw*2	30	300*2	13-20	2.4*0.85*1.45
600D	Φ260*20	15kw*2	30	300*2	13-20	2.4*0.85*1.45
800 Type	Φ200*20	15kw*2	32	400*2	13-20	2.15*0.87*2.2
1000 Type	Φ300*25	30kw*2	32	650*2	13-20	3.4*1.25*2.2
1200 Type	Φ400*30	55kw*2	38	650*2	13-20	4.15*1.25*2.2
1500 Type	Φ400*30	75kw*2	48	750*2	13-20	4.15*1.25*2.2
2000 Type	Φ530*50	90kw*2	38	850*2	13-20	5.25*1.78*2.2

Remark
Above parameter sheet is just for your reference.
The final specification will be adjusted according to buyer's actual requirement, such as the dimension of the material to shred, the size of the particles, the capacity etc, which affect the selection of the model, the number of the shafts, motors, transmissions, knife specification and so on.
