PVC Sheet Calender/Calendering Production Line

Beijing Huatengzhengcheng Industry and Trade Co., Ltd.
  • Type:Planetary Roller
  • Material Processed:PVC
  • Roller:Five
  • Roller Structure:Porous Type
  • Roller Orientation:L-Type
  • Automation:Automatic

Base Info

  • Computerized:Computerized
  • Certification:CE
  • Customized:Customized
  • Condition:New
  • Application:Rigid,Semi-Rigid,Soft PVC Film,Sheet
  • Size:Customized
  • Power:75kw-450kw
  • Keyword:Planetary Extruder
  • Transport Package:Plywood
  • Specification:CE
  • Trademark:B-TRUST
  • Origin:China
  • Production Capacity:350-4000kg,H


Basic Info.

Computerized Computerized Certification CE Customized Customized Condition New Application Rigid/Semi-Rigid/Soft PVC Film/Sheet Size Customized Power 75kw-450kw Keyword Planetary Extruder Transport Package Plywood Specification CE Trademark B-TRUST Origin China Production Capacity 350-4000kg/H

Product Description

Product Flow Chart

Rigid PVC Sheet Calendering Line
Main application: vacuum forming PVC sheet, medical packaging PVC sheet, PVC magcard material,PVC poker sheet, PVC clock face, colored PVC sheet etc.

Semi-rigid PVC Sheet Calendering Line
Main application: printable flex, AD material, flex banner, decoration material(wood grain film,marble film etc.)

Soft PVC Sheet Calendering Line
Main application: various kinds of inflatable toys, raincoat material, salt film, agricultural film, packing for home textile etc.

Quick Details 5 Roll Calender Line PVC Sheet Laminating Machine
Processing TypePlastic Thermoforming Machine
Product TypePlastic Sheet
Place of OriginChina(Mainland)
Brand NameHT
Model Number510x1500
WarrantyOne year
After-sales Service ProvidedEngineers available to service machinery overseas
Applicationpvc sheet
ColorGreen, Customized
Type5 roll
Roller Size510x1500mm
Product Width1200mm
Product Thickness0.06-0.6mm
Production Speed5-50m/min

PVC Film/Sheet Calendering line
1.Automatic Weighing System
For powder measuring&liquid measuring
Function: auto dosing, auto feeding, PLC auto control.

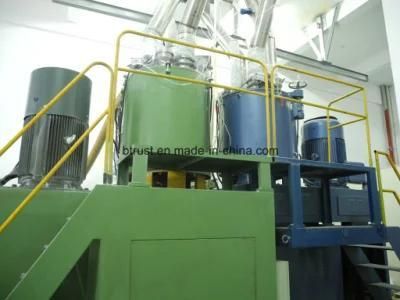

2.Super Mixer
Jacketed barrel,pheumatic discharging,stainless steel surface
3.Cooling Mixer
Jacketed barrel,pheumatic discharging,stainless steel surface
4.Planetary extruder
Perfect plasticizing & homogenizing quality,excelent self-cleaning screws, long service life,
electric power savings    , short formula change times,maximum CaCO3 /filler plastification capacity,low
cost,competitive Product quality
5. Mixing Roll
Bearing standing:iron casting processing with lubricating holes, auto. material turnover device,adjustable air cylinder control,gyro spinning type
6.4-roll Calender machine/5-roll calender machine/6-roll calender machine
Application:high quality rigid,simi-rigid and soft PVC sheet.
Composition:body, roller unit,gap adjusting device,roller suspension & bending device,cross device,stock stop device,reduction gearbox,main rotary unit,cardan,lubrication system,oil-pressure system,bottom roller scrap take-off device,piping,power off ON-OFF
7.embossing, cooling,scrap cutting unit and platform scale
Parts of Machine:leading outlet unit,embossing wheel unit,cooling wheel unit,waste film trimming,piping
8.Dual axial type auto. center  winder
Profile steel welded frame, tempering treatment, tension control system
9.AC Motor and control system
Location: calender machine and its rear segment ,main circuit switch, other circuits switch and protection circuit
10.Roller temperature control system
Temperature control: oil-type die heater,electric heating; micro-computer working system; all-in-one fail-safe, displaying and controlling entrance, exit of hot kerosene and temperature setting, with excellent functions of automatic safety protection
11.Conveyors and scrap winders
12.Die heater(heated-used cooling wheel in rear segment)
