• Model NO.：YCQ-2L-8E
• Color：Orange
• Pcl：Mitsubishi
• Cylinder：SMC
• Blow Valve：Mac
• Bottle Material：Pet
• Cavity：8
• Transport Package：Wooden Package,According to Customer′s Request
• Specification：CE ISO SGS
• Trademark：Eceng
• Origin：Zhangjiagang Jiangsu
• HS Code：8477300000
• Production Capacity：50per Year

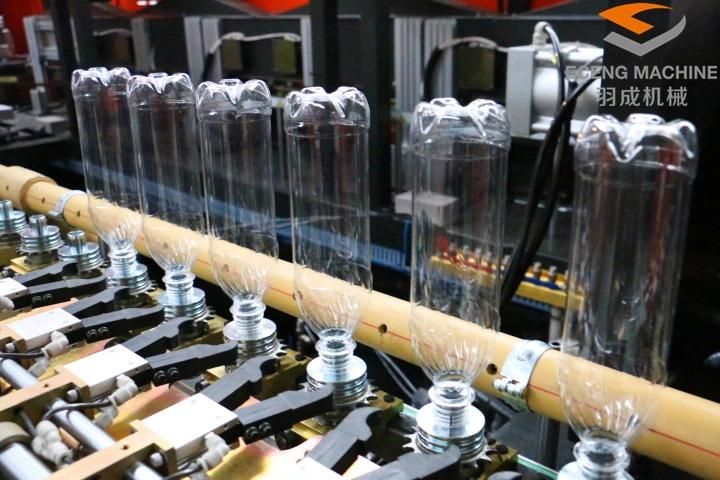

Bottle type specification

 cavity8theory output (PCS/HR)8000-9000Max. volume (L)2LBottle mouth maximum overall diameter (mm)28-38mmBottle biggest diameter100mmBottle maximum height330mm
Power specificationsLight tube quantity32pcsLight tube power1.5kwMaximum heating power48kwAll electric machine installation51kwActual consumption35.7kw
Air pressure specificationWork pressure7-9kg/cm2Low-pressure gas consumption1600Ltr/minBlow bottle pressure25-35kg/cm2Higher -pressure gas consumption4800 Ltr/min
Frozen water specificationWork pressure5-6 kg/cm2Temperature range10Consumption12000kcal/hrFrozen water flow88Ltr/minMachine specificationSize of the machine8.45x1.6x1.9 (m)Weight of the machine5ton

After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get  the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Transportation:
   It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.

Market:
   Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Idea:
   Abide by the logos of "Sincerity, Development, innovation, Win-Win" constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!

   welcome to you visit our factory!!!


Contact person:  Zoe xu
Mob.No.: 0086 13862216759
