Low Cost Raw Material Plastic Pet Broom and Brush Bristles Filament Yarn Extruder Machine

Qingdao Zhuoya Machinery Co., Ltd.
  • Type：Filament Extruder
  • Plastic Processed：Pet, PP, PE
  • Product Type：Extrusion and Drawing
  • Feeding Mode：One Feed
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw

Base Info

  • Model NO.：SJ75, 80, 90
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Raw Material：Recycyled Pet Water Bottle Flakes
  • Applications：Rope, Brush, Broom
  • Transport Package：Plastic Film Wrapping and Plywood Pallets
  • Specification：380V,3,50Hz
  • Trademark：ZHUOYA
  • Origin：Qingdao, China
  • HS Code：84772090
  • Production Capacity：200sets,Year

Description

ModelZYLS-75ZYLS-80ZYLS-90Screw L/D30:130:130:1Gearbox model200225225Main motor18.5kw22/30kw30/37kwCapacity(kg/h)80-100kg100-120kg120-140kgMould Dia.200200200Filament Dia.0.05-2.5mm0.05-2.5mm0.05-2.5mm
Equipment Configuration ListNo.Name Quantity1SJ75/SJ80/SJ90 single screw extruderOne set 2Die headOne set 3Water-cooling tankOne set 4First tensile machineOne set 5Pre-heating machineOne set 6Second tensile machineOne set 7Third tensile machineOne set 8Oil bath tank One set 9Pneumatic tensionerOne set10Two position winderOne set
Production Procedure

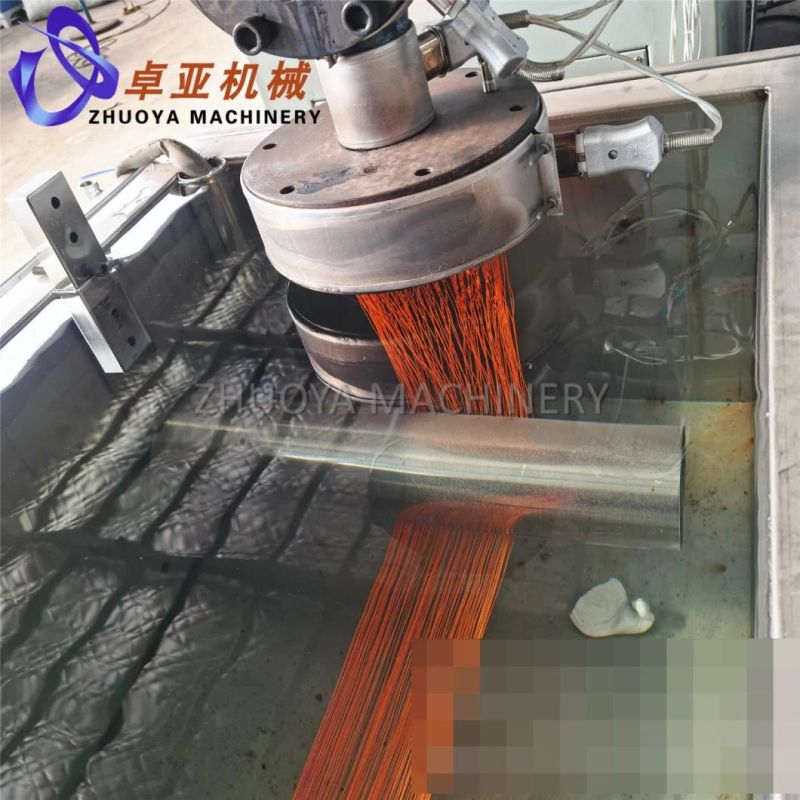

Automatic material loader→high efficiency extruder→screen changer→spineret(mould)→cooling water tank→first pulling and stretching unit→hot water tank→second pulling and stretching unit→oil coating→winding→shaping→cutting.

Application

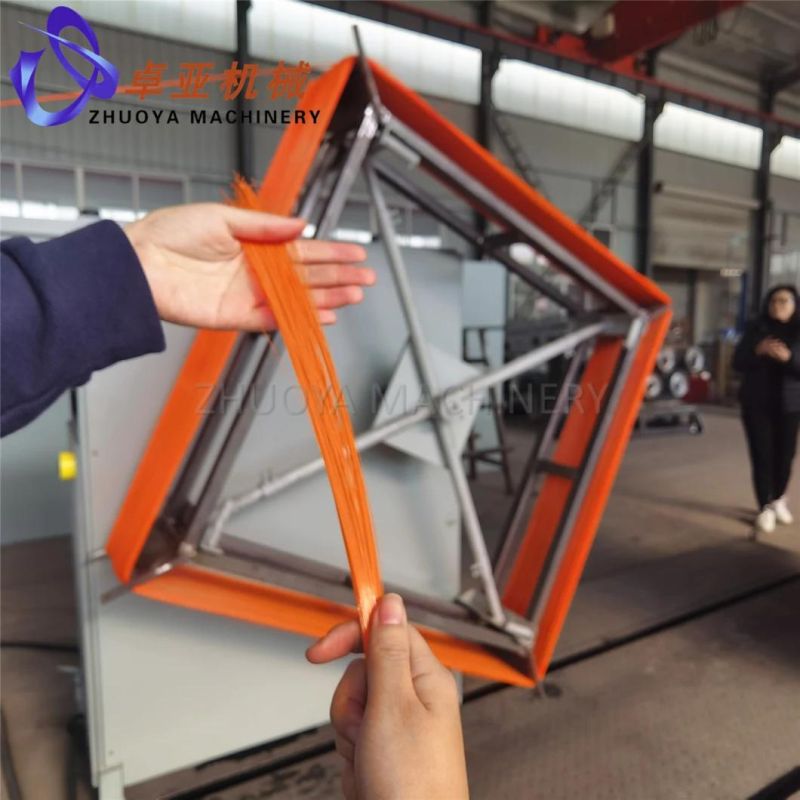

House broom filament , cleaning brush filament, Christmas tree  needle filament, and safety net yarn etc.

Low Cost Raw Material Plastic Pet Broom and Brush Bristles Filament Yarn Extruder MachineLow Cost Raw Material Plastic Pet Broom and Brush Bristles Filament Yarn Extruder MachineLow Cost Raw Material Plastic Pet Broom and Brush Bristles Filament Yarn Extruder MachineLow Cost Raw Material Plastic Pet Broom and Brush Bristles Filament Yarn Extruder Machine
Low Cost Raw Material Plastic Pet Broom and Brush Bristles Filament Yarn Extruder Machine

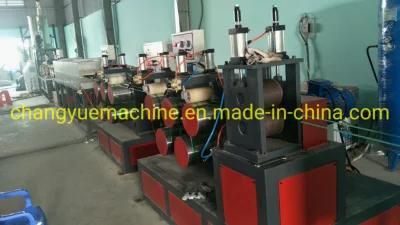

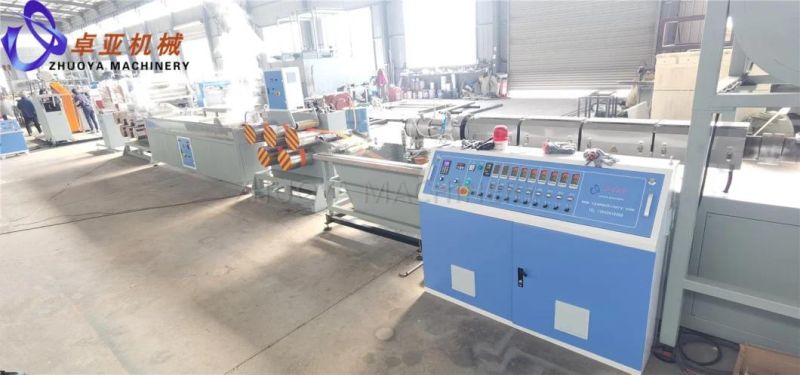

Machine Related Pictures
Low Cost Raw Material Plastic Pet Broom and Brush Bristles Filament Yarn Extruder Machine
Low Cost Raw Material Plastic Pet Broom and Brush Bristles Filament Yarn Extruder Machine

Service

Pre-service:
Professional engineers to provide pre-sales technical advice and guidance supporting the planning, such as unit selection, matching, room design, answer difficult questions encountered by the user during use and provide technical guidance.

The sale:
Our company will send professional and technical personnel to the installation site for installation and commissioning of the unit after receiving user notification , and do a good job with the user acceptance.
Standard unit responsible for guiding installation, commissioning.

After-service:
The warranty period: from the date of acceptance or the date of one year warranty accumulated 1,000 hours (whichever occurs both), as a result of parts factory assembled negligence or improper design and selection of raw materials and other reasons caused the damage or other unit fault, may be responsible for the warranty by the supplier.

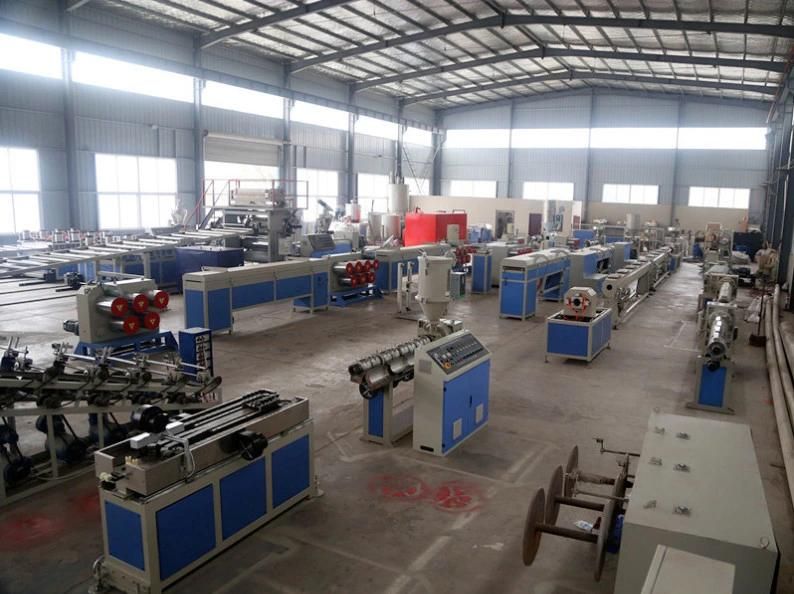

Company Information

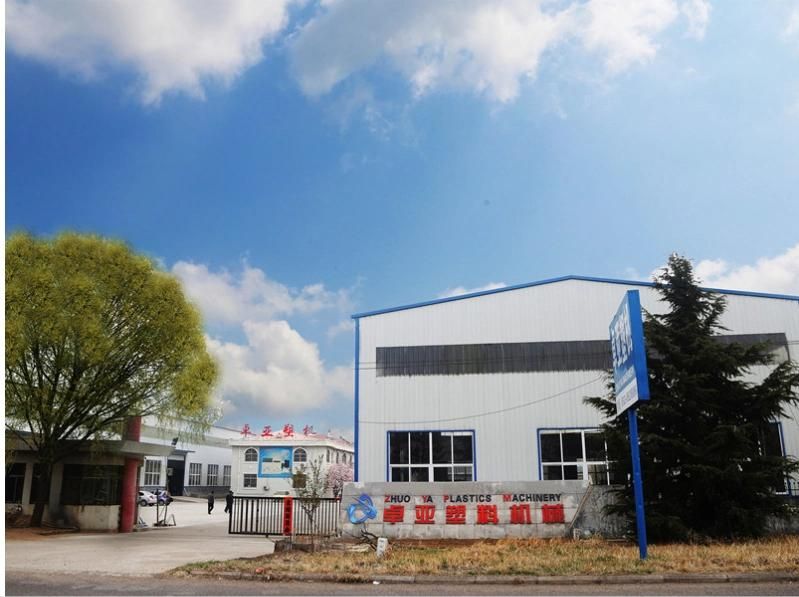

Qingdao Zhuoya Machinery Co., Ltd. is a science and technology knowledge-intensive corporation integrated with research and development, fabrication, sales and service, professionally engaged in the manufacture of plastic filament production line equipment. We are expert in manufacturing plastic broom&brush filament extruding machine, plastic rope filament extruder machine, plastic synthetic hair filament extruder machine, plastic synthetic false eyelash filament extrusion machine,plastic cosmetic brush filament extruder machine, plastic safety net filament production line and other plastic wire extruding machine.

Zhuoya Machinery is the pioneer in the field of PET monofilament extruder machine and Synthetic hair filament/eyelash filament extruder machine. We invest and study the technology to use recycled PET water bottle flakes to make quality broom and brush filament, and produce qualified synthetic hair filament for wigs and eyelash. Zhuoya is always holding the lead in its field and our engineer team is continuously exploing to new field at the same time.

Our extruders are exported to more than twenty countries all around the world such as Russia, Saudi Arabia, Kazakhstan, Canada, Ethiopia, Turkey, Tunisia, Nigeria, Algeria, Mexico, India, Honduras,,Vietnam, Ukraine etc and get a very good reputation among our customers and lots of feedback to improve our machine continuously.

To build stable long-term business relationship with our customers, we provide quality product and circumspect service to guarantee the benefit of our customers and create win-win cooperation.  Located in Qingdao, a beautiful coastal city in Shandong Province, Zhuoya make full use of convenient land, sea and air transportation advantages and high-tech prosperity here to provide customer speed service and quality product.

We warmly welcome customers from the world to visit our factory and build long-term business relationship.
