• Model NO.：FM3-1700
• Machine Weight：6t
• Certification：CE, ISO9001:2008
• Size：L*W*H: 6m * 3.66m * 6.5m
• Voltage：380V 50Hz 3phase
• Transport Package：Plastic Film for Container Shipment
• Specification：3 layers
• Trademark：Xiongqiu Plastic Machinery Co., Ltd.
• Origin：Foshan, Guangdong Province
• HS Code：8477300000

Basic Info.

Model NO. FM3-1700 Machine Weight 6t Certification CE, ISO9001:2008 Size L*W*H: 6m * 3.66m * 6.5m Voltage 380V 50Hz 3phase Transport Package Plastic Film for Container Shipment Specification 3 layers Trademark Xiongqiu Plastic Machinery Co., Ltd. Origin Foshan, Guangdong Province HS Code 8477300000

Product Description

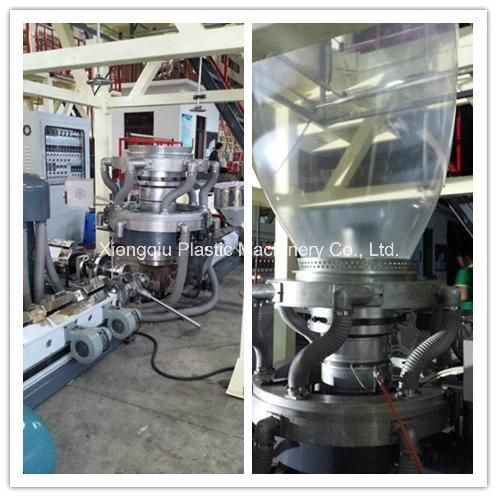

2 extruder mix 3 kinds of materials together and produce co-extrusion complex film which improve the intensity of thin film. Widely used in compound film, insulated film and all kinds of agricultural film field.


model	suitable material	thickness	film width	max output	screw diameter	L/D ratio	temp. controller	barrrel cooling	driving motor
FM3-1700	LDPE/LLDPE/HDPE	0.02-0.20mm	1500mm	125kgs/hr	Φ65mm*2	30:1	12 zone	120w*4	22kw*2

die diameter	air ring diameter	cooling fan	take up width	effective take up width	take up motor	winder width	effective winder width	winder motor
Φ350mm	Φ450mm	3kw	1700mm	1600mm	2.2kw	1700mm	1600mm	50kg

die structure	spiral mandrel die chrome plated surface 40Cr
optional equipment	auto-loader device, film surface treater, air compressor, fast change net, double center winder/cage roll flat winder, rotary die head, double wind air ring

details:

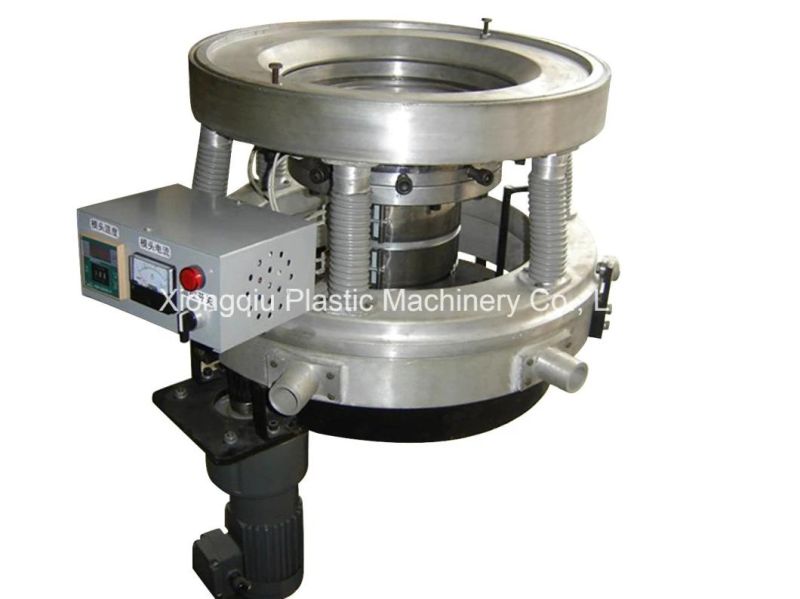

rotary die head
