• Model NO.：XRP600
• Certification：ISO9001:2008, CE
• Name：Xrp600
• Shredding Room：600*600 mm
• Feeding Size for Plastic Pipe：Diameter No More Than 350 mm
• Delivery Time：15-30 Working Days
• Screen Size：40-100mm
• Voltage：According to Customer
• Main Eletrical Equipment：Schneiders
• Weight：2400 Kg
• Rotor Diameter：280 mm
• Blade Materials：D2, DC53
• Bearing：Heavy Duty Bearing
• Hydraulic Station：3kw
• Output：300-600kg,Hr
• Rotary：80 Rpm
• Transport Package：Film or Wooden Case
• Specification：Accoording to Customer
• Trademark：S&K
• Origin：China
• HS Code：84778000
• Production Capacity：80sets,Year

Basic Info.

Model NO. XRP600 Certification ISO9001:2008, CE Name Xrp600 Shredding Room 600*600 mm Feeding Size for Plastic Pipe Diameter No More Than 350 mm Delivery Time 15-30 Working Days Screen Size 40-100mm Voltage According to Customer Main Eletrical Equipment Schneiders Weight 2400 Kg Rotor Diameter 280 mm Blade Materials D2, DC53 Bearing Heavy Duty Bearing Hydraulic Station 3kw Output 300-600kg/Hr Rotary 80 Rpm Transport Package Film or Wooden Case Specification Accoording to Customer Trademark S&K Origin China HS Code 84778000 Production Capacity 80sets/Year

Product Description

XRP Series single shaft shredder machine

Feature & Function:
1. Single shaft shredder has characters as follows: single shaft shredder properties as follows: strong, durable. It is suitable to recycle a variety of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic films, fibers, paper. Shredded particles can be small to 20mm according to different needs. We can provide all kinds of feed hopper; low speed rotary cutter in accordance with customer needs , which will be low noisy and energy saving.
2. Single shaft shredder consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block. The knife block has 4 blades, can be replacing the use of. The knife block along the axis of the base is in multiple rows into type V, and fixed with screws in the radical axis, rotated with the based shaft together, finally comprise a knife disc. The two static knife is fixed on the machine frame. The material is sent to the cutter by the horizontal hydraulic cylinder. The speed is stable and adjustable, and the propulsive force is large and uniform. It is applicable to the recovery of a variety of bulk solid materials, refractory materials, irregular plastic containers and plastic barrels, tubes, films, fibers, paper etc. Spindle speed is 45 ~ 100 rpm/min.
3. We can offer a variety of rotor configurations to suit different applications.Such as:High Performance Rotor,Hard Material Rotor and Soft and Film Rotor.
4. When customers choose the rotor, we can also offer different knives holder to suit different requirement. Such as:Welded Knife holders,Assembled Knife holders and CNC cutting knife holders.

Technical parameters:

Model	Motor (kw)	Diameter of rotor (mm)	Speed (rpm)	Rotating Knife (pcs)	Fixed Knife (pcs)	Hydraulic Motor power (kw)	Weight (kg)
XRP600	22	Φ280	75	26+4	2	2.2	2400
XRP700	30 or 37	Φ280	75	32+4	2	3	3500
XRP800	45	Φ400	75	34+4	2	3	4000
XRP1000	55	Φ400	75	46+4	2	4	5000
XRP1200	75	Φ500	75	68+4	2	7.5	9000

Note:The above Technical parameters is only for your consideration, real technical parameters of shredder machine will be different based on shredding different material requirements, please call us for more information before purchasing.

Application Area:
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:

•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;

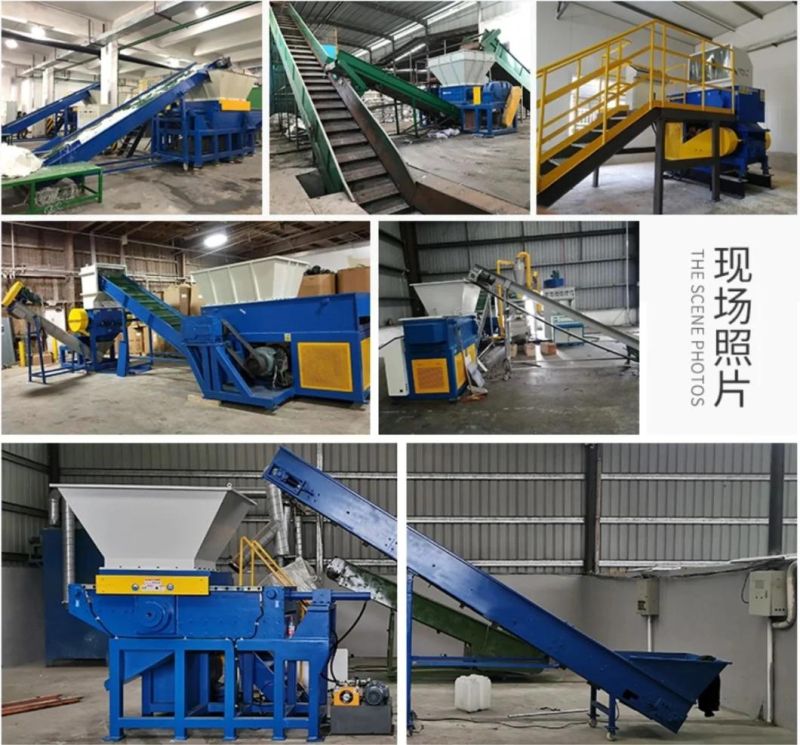

Machine Photos:

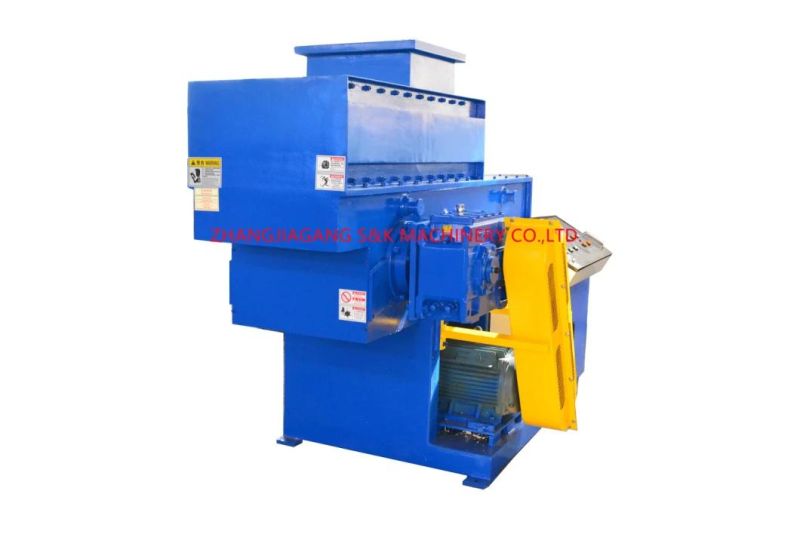

Single Shaft Shredder-XRP600

About us:

Shredding effects:

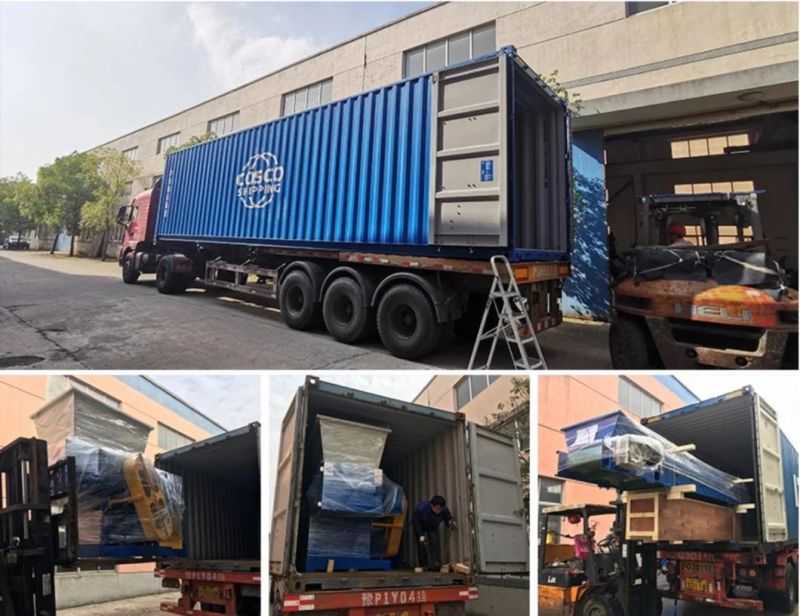

Machine Delivery:

IF YOU WANT TO KNOW MORE DETAILED INFORMATION OF THE MACHINE, PLEASE FEEL FREE TO CONTACT OR EMAIL US.
