• Model NO.：HSD
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Film Thickness：0.1-3.0mm
• Width：Maximum 8000mm
• Transport Package：Standard Export Packing
• Specification：ISO9001: 2008
• Trademark：Huashida
• Origin：Qingdoa, China
• HS Code：8477209000
• Production Capacity：20 Units,Year

Basic Info.

Model NO. HSD Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Film Thickness 0.1-3.0mm Width Maximum 8000mm Transport Package Standard Export Packing Specification ISO9001: 2008 Trademark Huashida Origin Qingdoa, China HS Code 8477209000 Production Capacity 20 Units/Year

Product Description

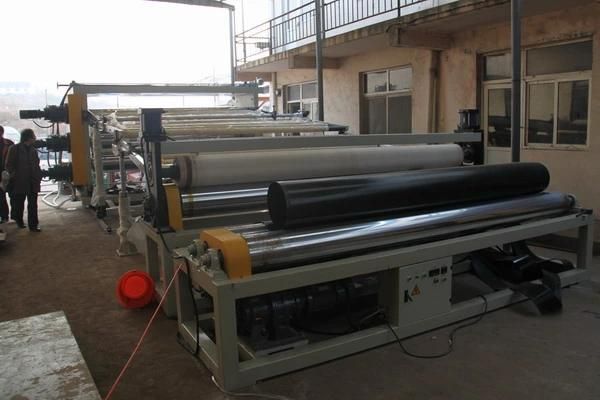

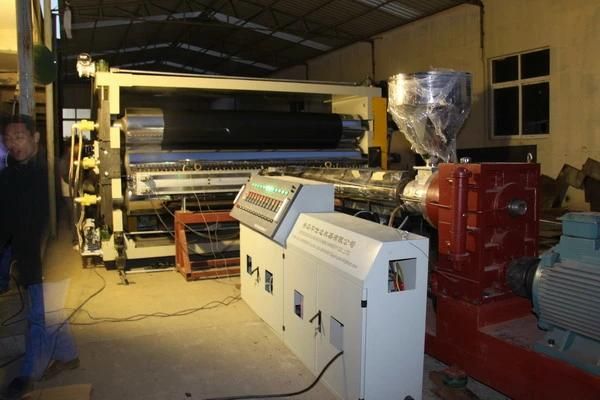

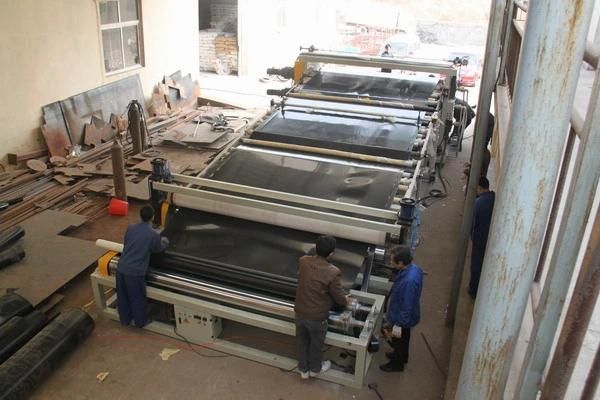

Geo-Membrance Film Extrusion Line Pp/Pet/Eva/Pe Film Production Line


Water-proof Coiled Material/GEO-membrance Film Extrusion Line is a super-large water-proof Coiled material. The mainly material for the film is varioius kinds of polymer, such as PE, PP, PET, PVC, EVA etc. The max width is 8000mm, the thickness from 0.1 to 3.0mm. In order to meet different customers with different requirements, other auxiliary equipment could be arranged.



Application:
GEO-membrance Film Mainly used in the landfill plant, waste water treatment plants, subway project, tunnel construction, artificial lake, industrial water-proof and other projects.

GEO-membrance film characteristics:
1. Width and thickness can be adjusted by online set.
2. High strenght and thoughness.
3. Excellent stress cracking resistance.
4. Large temperature range.
5. Easy operation for construction.
6. Other undergound works

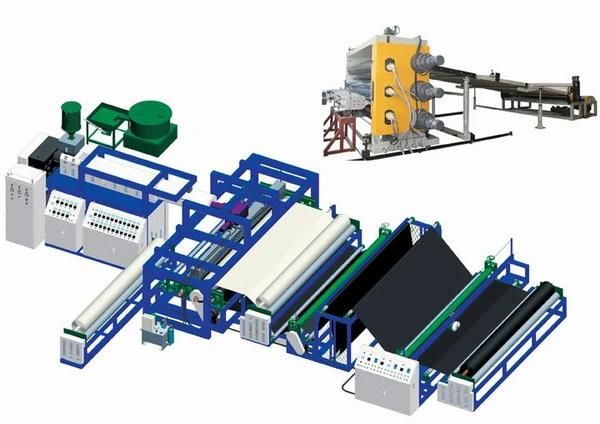

GEO-membrance film extrusion line comprise :

1. Single screw extruder


2. T-die mould

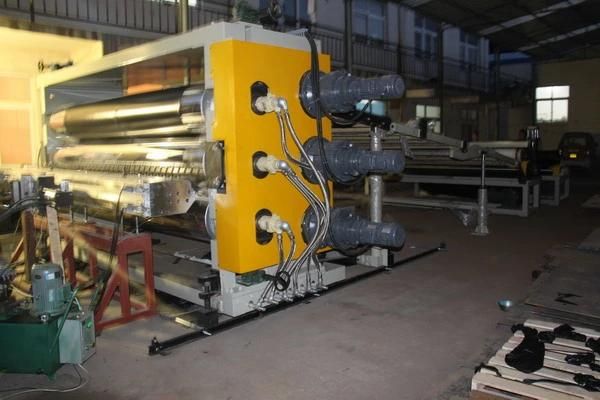

3. 3 roller calendar


4.cooling bracket



5. Coiler


GEO-membrance film extrusion line paramter as below:

.

Extruder	Film Width	Film Thickness	Capacity	Total Power	Dimension(m)
SJ120/33	3000mm	0.5-2.0mm	500kg/h	250kw	20x4x2.5
SJ200/33	8000mm	0.8-3.0mm	1200kg/h	550kw	22x10x2.5
