• Model NO.：ABLD90
• Max. Product Volume：60L
• Application：30~60L Bottles, Jerry Cans, Toys
• More Application：Drums, Containers, Jerry Cans, Barrels
• Suitable Material：PE.PP,PVC,PS,PETG,So on
• Mould Material：S136, P20, 4Cr13
• Guarantee：12 Month
• Delivery Time：55~65 Working Days
• Screw：90 mm
• Max Die Mouth：280~340mm
• Clamping Force：210~260 Kn
• Max Mould Size：700X950mm
• Template Distance：450~1000mm
• Heating Power：5~7 Kw
• Machine Size：4.6*2.4*3.8(M)
• Machine Weight：12 T
• Transport Package：Film Packing
• Specification：ABLD120
• Trademark：Dawson
• Origin：Zhangjiagang
• HS Code：8477301000
• Production Capacity：up to Product

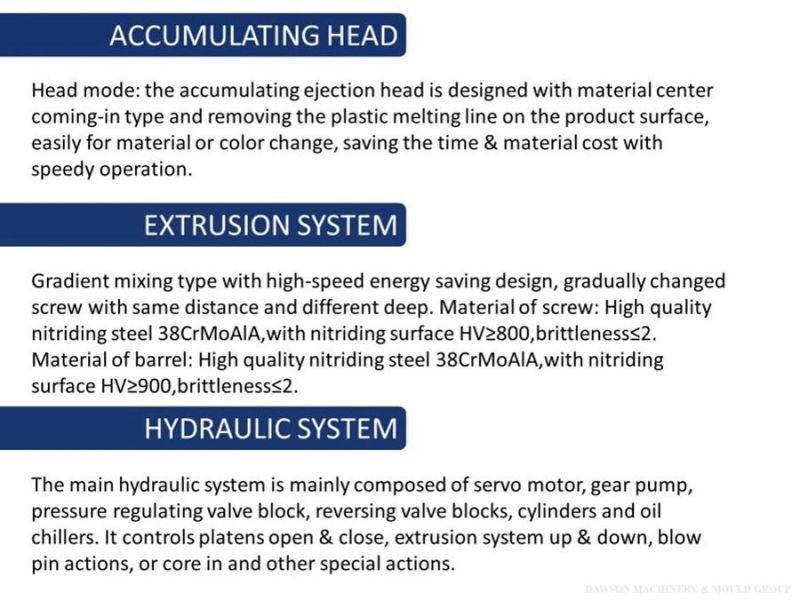

Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so onMax volumeABLD90 max: 60LOutput capacity40~50pcs/hSize4.6×2.4×3.8(M)Weight12TsystemSpecificationParametersNotePlasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature ReducerHard finishing,High intension,Low noise reducer Screw∮90mm,L/D ratio 25, 38CrMoALACooling system availablePlasticization100 ~ 130Kg/HHDPEHeating Zone4 Aluminum HeaterAutomatic heatingHeating power15~18KW/H Extrusion MotorThree phase asynchronous motor (380V,50HZ) Cooling Fan4zone        Automatic coolingExtrusion systemSummarizeHigh-grade alloy steel, center feeding Die head number1 Center distance of die heads/ Max die mouth∮280~340mm Heating zone4   Stainless steel heating cycle Heating power5~7KW Clamping systemSummarize
 High intension, rigidity, center mold locking, stable mould opening and clamping system  Clamping force210~260KN Template distance450~1000mm Max mould size700X950mm Mould materialHigh grade 50# steel Electric systemSummarize

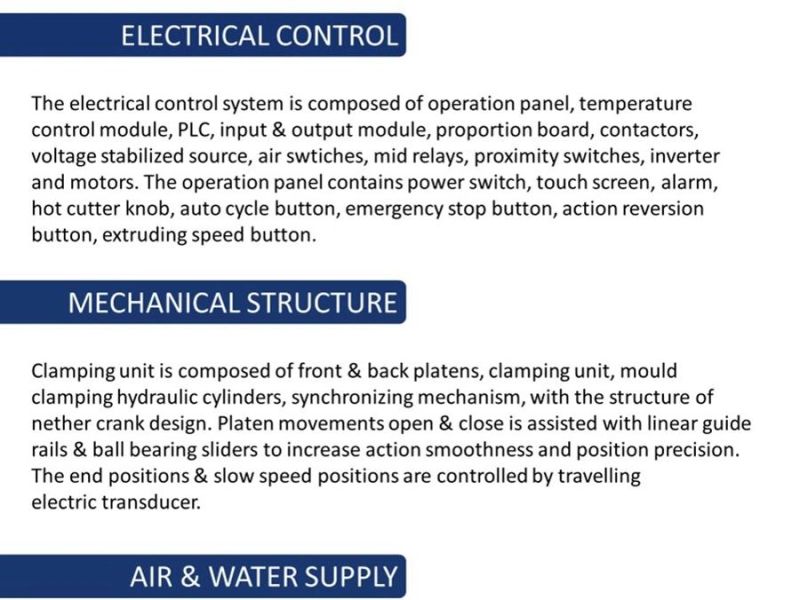

PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
systemOperate interfaceTouch screen, automatic self-diagnose alarm system Temperature controlAutomatic temperature control module Movement controlJapanese Mitsubishi, Chinese/English

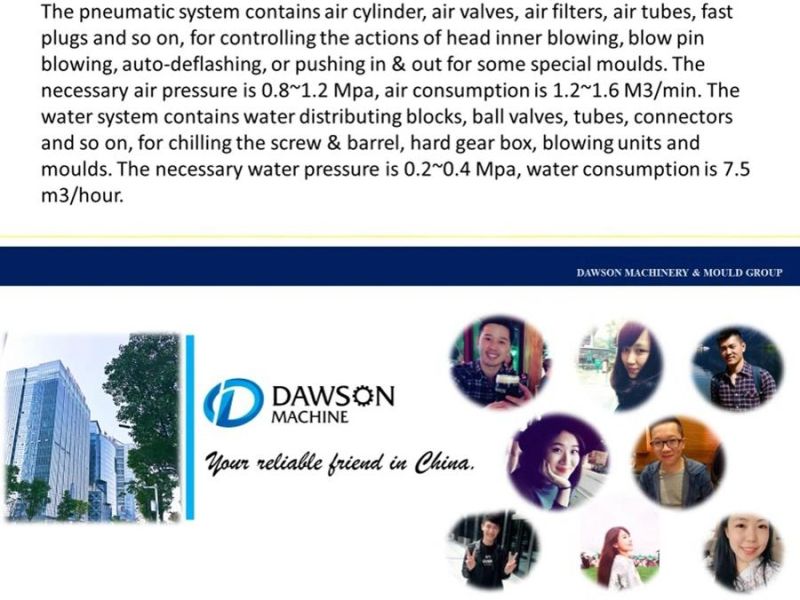

Version Electric protectionAmpere overload, electric short circuit self-protection function Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient Oil pump motorThree phase asynchronous motor (380V/220V,50/60HZ) Oil pumpImported double pump ValvesImported oil pump valves and connections Oil pipesDouble layer overpressure resistant System pressure60Kg/cm² Cooling systemSeparate water cooling cycle, oil cooler cooling system Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system Air pressure0.6Mpa Air displacement0.8M3/min Electromagnetic valveTaiwan AIRTAC Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow90L/min Water pressure0.3-0.6MPa







DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

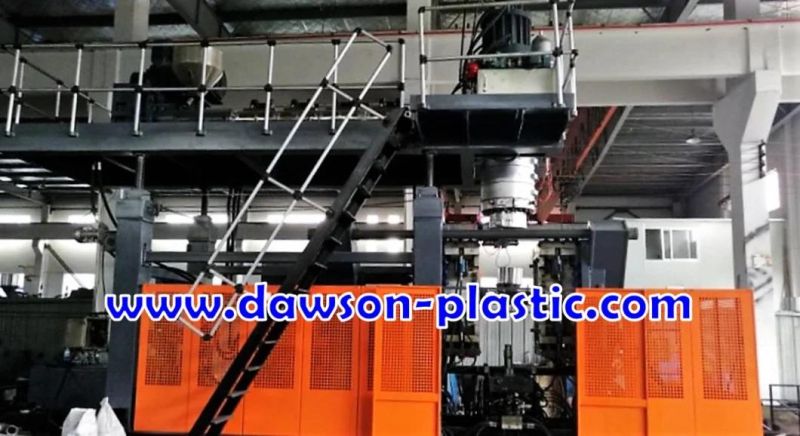

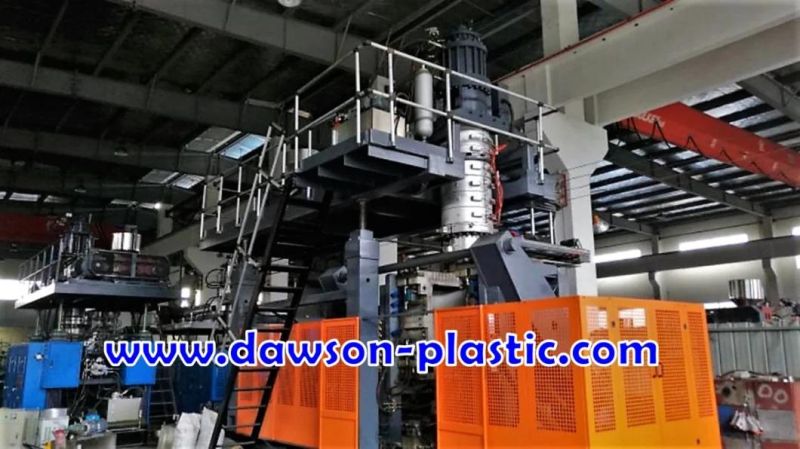

Extrusion blow molding machine ABLD90
