• Model NO.：YSX600
• Computerized：Computerized
• Certification：CE, ISO9001:2008, UL
• Name：Double Shaft Shredder
• Capacity：500-800(Kg,H)
• Motor Power(Kw)：15kw+15kw
• Knife Qty：30
• Knife Thickness：20mm(or Customized)
• Transport Package：Wooden Box
• Specification：2000*700*1250mm
• Trademark：YUFCHINA
• Origin：Henan, China (Mainland)
• HS Code：84778000
• Production Capacity：35 Set,Sets Per Month

Basic Info.

Model NO. YSX600 Computerized Computerized Certification CE, ISO9001:2008, UL Name Double Shaft Shredder Capacity 500-800(Kg/H) Motor Power(Kw) 15kw+15kw Knife Qty 30 Knife Thickness 20mm(or Customized) Transport Package Wooden Box Specification 2000*700*1250mm Trademark YUFCHINA Origin Henan, China (Mainland) HS Code 84778000 Production Capacity 35 Set/Sets Per Month

Product Description

Double Shaft Shredder / Scrap Metal Shredder for Sale




Applications of Double Shaft Shredder / Scrap Metal Shredder

- plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon.
-Plastic pipes
-Film,Woven bags
- Living garbage,
- Medical waste
-Electronic Waste
-Copper Cable,Aluminum Cable with steel
- Aluminum cans
-Wood: Pallet,tree root,solid wood etc

Introduction of Double Shaft Shredder / Scrap Metal Shredder
    This double shaft shredder has been designed for the most demanding and high throughput applications in recycling industries, Clients could select the corresponding models according to the material size and quantity. We will providing a special knife rotor as for the different special needs, for shredded material as film, woven bags or nylon, ABS and PC.



Features of Double Shaft Shredder / Scrap Metal Shredder

• Teeth and Stator knives are SKD11 steel.

• The main electronic controls are a combination of Siemens and Schneider.

• Microcomputer technology incorporating rotator speed variations with start, stop and reverse features.

• Automatic reverse sensors to protect the machine against over loading and jamming.

• Engineered using split bearing block technology so the blades can be changed quickly and efficiently.

• Specifically designed rotor to be extremely wear resistant.

• Rotor teeth can be rotated 4 times before they need changing, lowering running costs and reducing down time.

• Extremely versatile machine able to process a number of different materials

• Machinery protection, accord with the European CE standard.

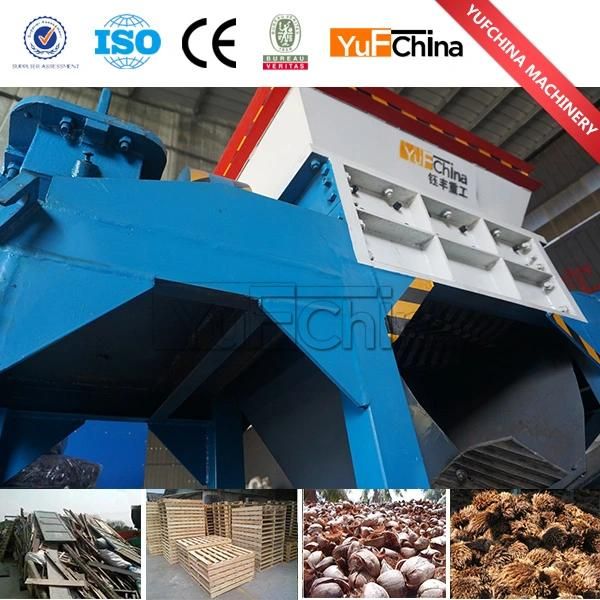

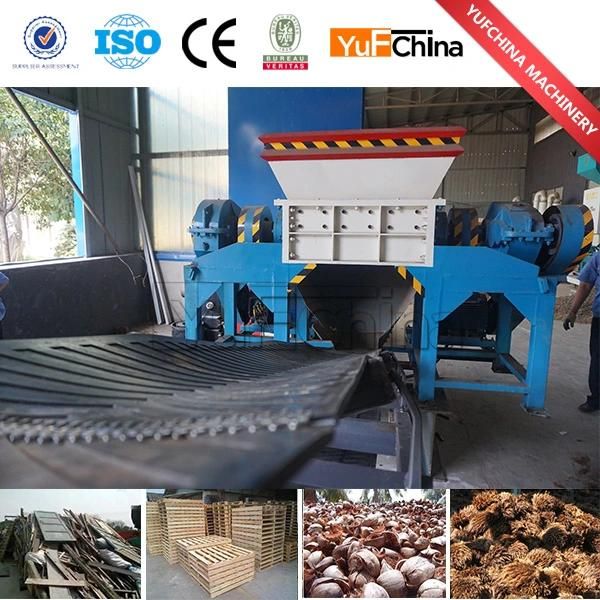

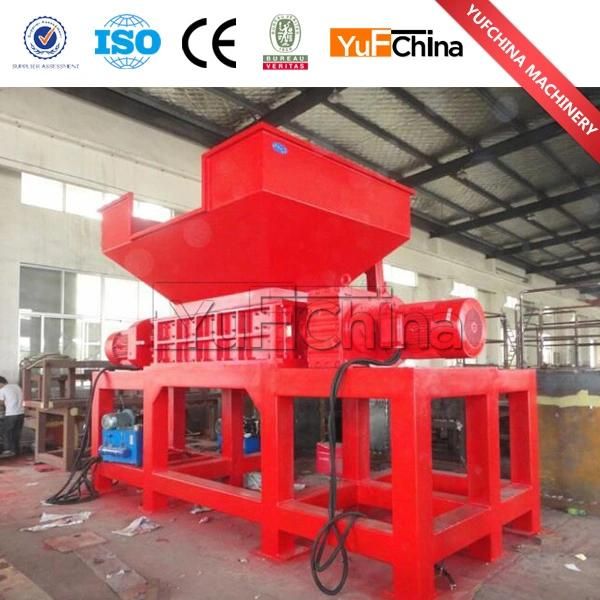

More pictures of Double Shaft Shredder / Scrap Metal Shredder






Technical Parameters of Double Shaft Shredder / Scrap Metal Shredder


Type	Motor power(KW)	Knife Qty	Knife thickness(mm)	Capacity(KG/H)
YSX400	7.5KW+7.5KW	20	20(or customized)	300-600
YSX500	11KW+11KW	25	20(or customized)	400-700
YSX600	15KW+15KW	30	20(or customized)	500-800
YSX800	18.5KW+18.5KW	40	20(or customized)	600-1000
YSX1000	22KW+22KW	50	20(or customized)	800-1200
YSX1200	30KW+30KW	60	20(or customized)	1000-1500
YSX1400	45KW+45KW	70	20(or customized)	1200-1800
YSX1500	55KW+55KW	75	20(or customized)	1400-2000
YSX1600	75KW+75KW	80	20(or customized)	1600-2500
YSX1800	90KW+90KW	90	20(or customized)	1800-3000
YSX2000	110KW+110KW	100	20(or customized)	2000-4000

Contact Information of Double Shaft Shredder / Scrap Metal Shredder

        We can design machines according to customers' need. If you want to learn more information, please contact us at any time.
