• Model NO.：XT600-1
• Auxiliary Machines：Water Chiller, Perform Unscrambler
• Cavity：1 Cavity
• Finished Product：Drinking Water Pet Bottle, Beverage Bottle
• Spare Parts：Free
• Markets：Global, Mainly in Africa, South East Asia
• Raw Material：PET
• Making Method of Parison：Stretch Blow
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008, TUV
• Transport Package：Export Standard Wooden Cases
• Specification：1900*1860*1930mm
• Trademark：Proman
• Origin：China
• HS Code：8477401000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. XT600-1 Auxiliary Machines Water Chiller, Perform Unscrambler Cavity 1 Cavity Finished Product Drinking Water Pet Bottle, Beverage Bottle Spare Parts Free Markets Global, Mainly in Africa, South East Asia Raw Material PET Making Method of Parison Stretch Blow Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, TUV Transport Package Export Standard Wooden Cases Specification 1900*1860*1930mm Trademark Proman Origin China HS Code 8477401000 Production Capacity 1000sets/Year

Product Description

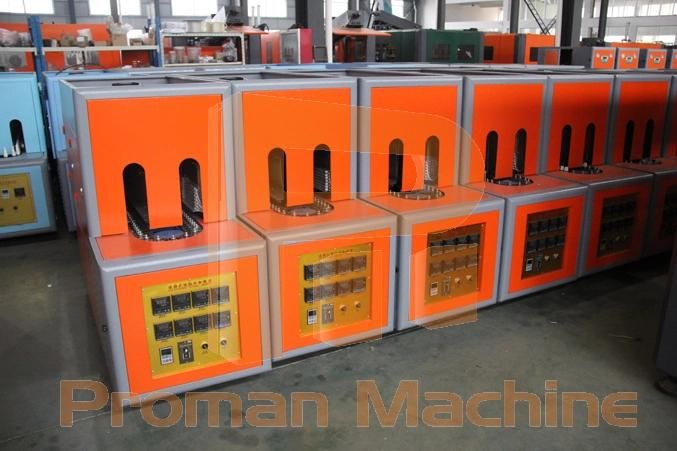

Semi Automatic Hot Filling Pet Bottle Blowing Blow Moulding Machines

Our hot filling bottle blowing machine is equipped with advanced PLC control system with stable performance. With fast speed and can be adjusted by workers easily according to different production volumes. Also it has strong clamping force.Technical parameters

Model	XT600-1	XT1000-1	XT1500-1	XT2500-1	XT1000-3	XT600-4
Number of cavities	1	1	1	1	3	4
Clamping stroke(mm)	100	100	120	160	120	120
Output(pcs/hr)	1500	1500	1100	900	2600	3600
Total power(kw)	22	25	30	26	39	28
Power consumption(kw)	≤8	≤9	≤12	≤13	≤12	≤15
Pressure for working(kg)	10	10	10	10	10	10
Pressure for blowing(kg)	30	30	30	30	30	30
Flow rate for working(m3)	0.6	1	1.2	1.5	2	2
Flow rate for blowing(m3)	0.8	1	1.2	1.5	2.5	2
Neck diameter(mm)	12-80	12-80	12-90	12-95	24-32	20-38
max. diameter*height(mm)	90*235	90*255	90*320	145*320	105*280	65*235
Machine weight(kg)	980	1450	1600	1800	3100	2000





Auxiliary Machines

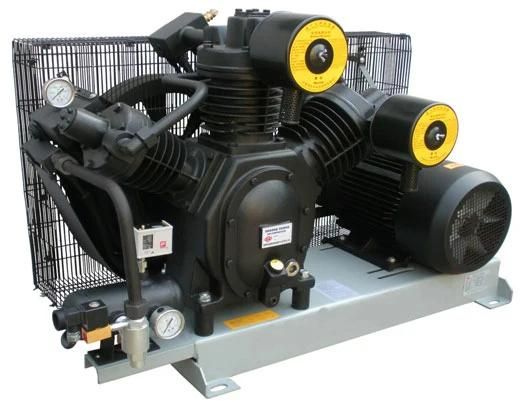

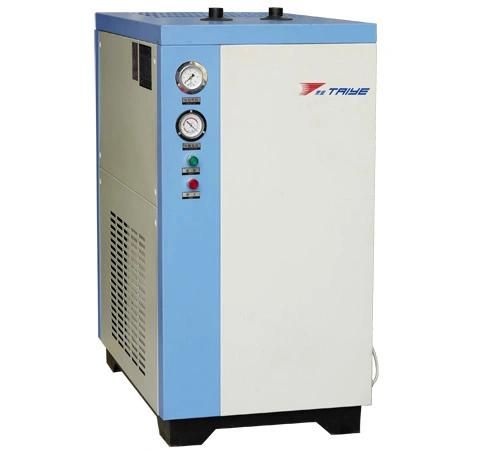

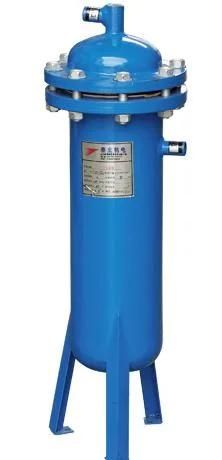

Air compressor                                                   Air cooling dryer                        Air filter

Charcteristics of
· Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
· The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
· The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
· The machine can be operated in the step-by-step mode and the semi-auto mode.
· The machine is small with low investment, easy and safe to operate.
 Our service

Customized service
We can design the machines according your requirements(material,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6.24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7.12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9.Good after-sale service offered, please get back to us if you got any questions.

Quality Control
We have separate quality control department, which make sure the raw materials are qualified, also ensure the machine running smoothly.
If you want to know more information about the product,Send inquiry to us, we will solve any of your problems and send you running video for reference.

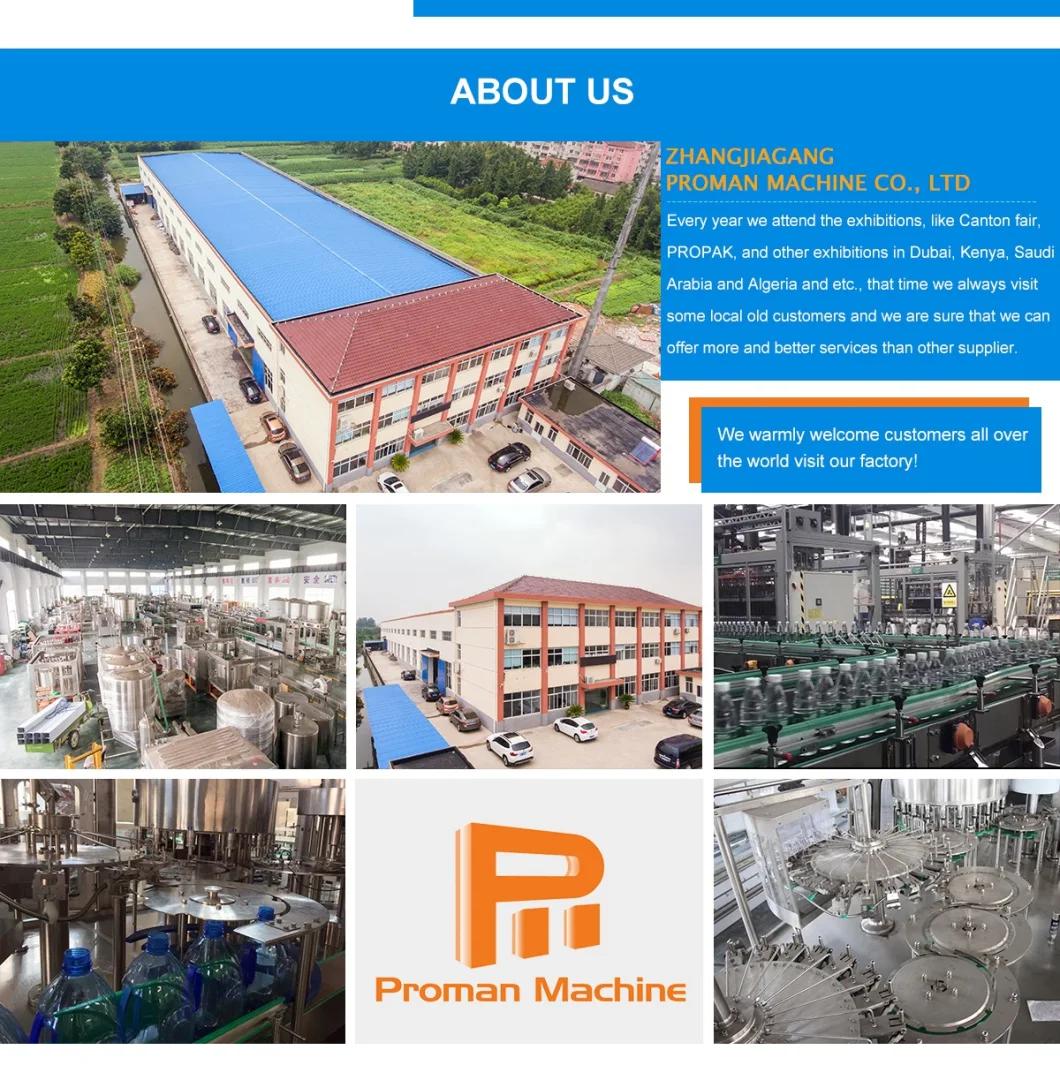

Zhangjiagang Proman Machine Co. Ltd,is a production manufacturer and exporter specialized in water treatment plants,beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.

Our factory was established in the year of 1998, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineers of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.

Besides, we have our own designs for the bottles.

Proman Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply!


FAQ

1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.

2. Do you have any technical supports with your Beverage Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
