• Model NO.：MT630
• Condition：New
• High Capacity：800kg,H Capacity
• Haul off：Servo Motor
• Inverter：Schneider
• Contacter：Schneider

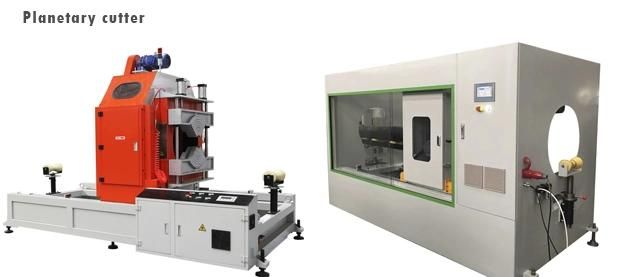

• Cutter：Dust Free
• Screw：Bimetallic
• Transport Package：Wooden Packing
• Specification：CE
• Trademark：Middle tech industry
• Origin：China
• HS Code：84772090
• Production Capacity：800kg,Hr

Basic Info.

Model NO. MT630 Condition New High Capacity 800kg/H Capacity Haul off Servo Motor Inverter Schneider Contacter Schneider Cutter Dust Free Screw Bimetallic Transport Package Wooden Packing Specification CE Trademark Middle tech industry Origin China HS Code 84772090 Production Capacity 800kg/Hr

Product Description

Application:

Through market combination and continuous research innovation, Midtech pleased to provide
energy saving (15% down),
high standard (Bimetallic & PLC Intelligence),
reliable quality (vertical gearbox with SKF thrust bearing)
extruder and whole set extrusion and production line

We are capable of producing pipe diameter up to 1600mm for PE pipe, and up to 710mm for PVC pipe.

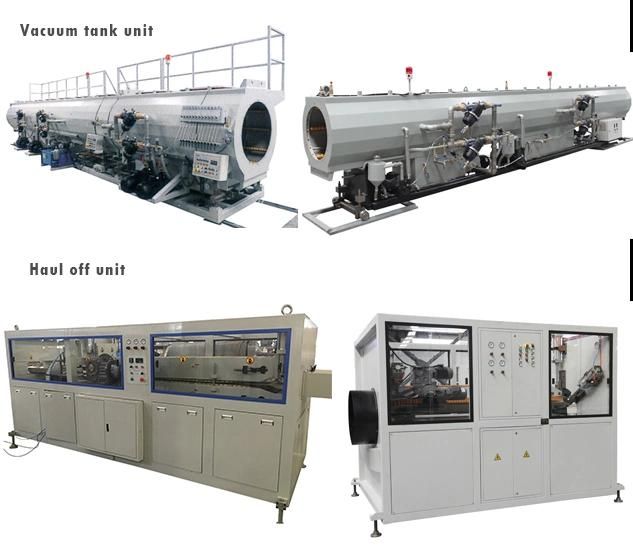

Feature of Machine:

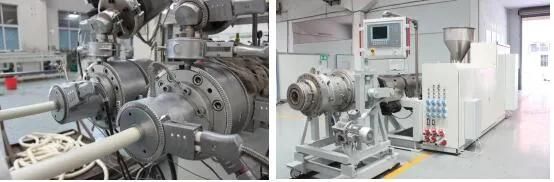

Mould

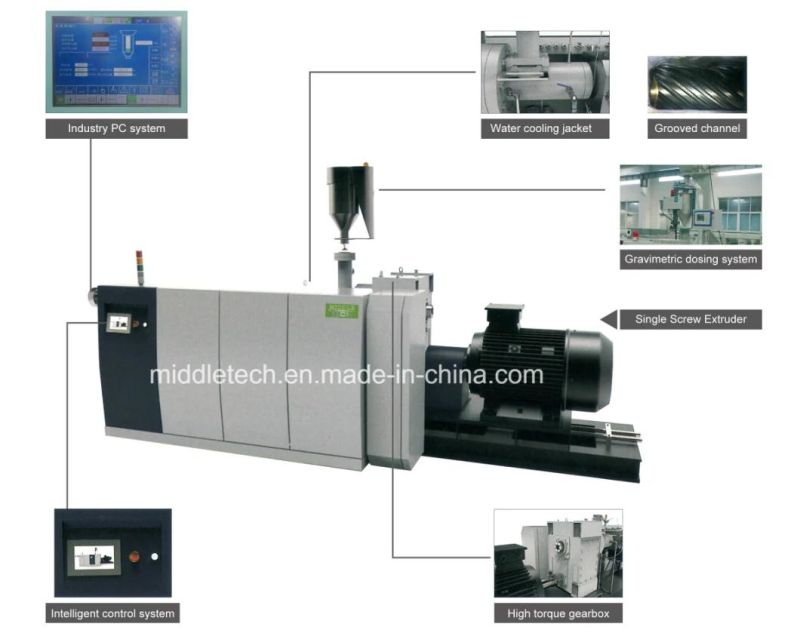

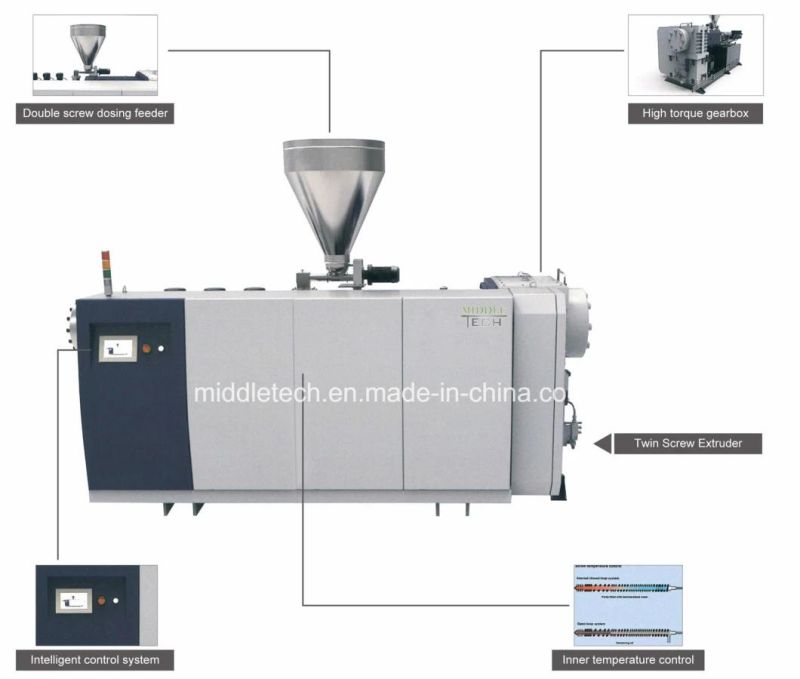

Main parameter of PVC pipe production line extruder machine

Extruder model	SJSZ-50/105	SJSZ-55/110	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Driving motor (kw)	15	37	37	55	90
Pipe diameter range(mm)	16-40	20-110	50-200	200-400	400-630
Water pump	3kw	4kw	5.5kw	5.5kw X 2pcs	7.5kw X 2pcs
Vacuum pump	2.2kw X 2pcs	4kw	4kw	4kw X 2pcs	7.5kw 5.5kw X 2pcs
Caliber Length(mm)	5000	6000	6000	8000	6000, 3000
Water cooling tank	No	No	5000	6000	100000
Hauling motor	0.75kw 4pcs	2.2kw	3.7kw	7.5kw	18.5kw
Hauling belt	4pcs	2pcs	2pcs	4pcs	6pcs
Cutting motor	1.1kw 2pcs	2.2kw	3.7kw	3.7kw	3.7kw
Inverter brand	ABB	ABB	ABB	ABB	ABB
Contactor brand	Schneider	Schneider	Schneider	Schneider	Schneider

Main parameter of PE pipe production line extruder machine

Pipe Diameter	16-63	32-125	75-250	110-450	315-630	315-800
Extruder	45/33	65/33	75/33	90/33	120/33	150/33
Cavity	single strand	single strand	single strand	single strand	single strand	single strand
Downstream	LG63	LG125	LG250	LG450	LG630	LG800
Total power(kw)	70	150	230	380	550	800


If you need any support, please don't hesitate to contact us on +86-13962227556.
