• Model NO.：TF-70
• Servo Motor for Thermoforming Machine：Mitsubishi, Japan
• Mold of Thermoforming Machine：Aluminum
• Transport Package：Thermoforming Machine Wrap with Film
• Specification：Thermoforming machine was according to CE standard
• Trademark：Y. E
• Origin：Zhejiang Ruian
• HS Code：847740
• Production Capacity：10sets Thermoforming Machine Per Month

Basic Info.

Model NO. TF-70 Servo Motor for Thermoforming Machine Mitsubishi, Japan Mold of Thermoforming Machine Aluminum Transport Package Thermoforming Machine Wrap with Film Specification Thermoforming machine was according to CE standard Trademark Y. E Origin Zhejiang Ruian HS Code 847740 Production Capacity 10sets Thermoforming Machine Per Month

Product Description

Use:

It is an ideal equipment to form PP,PS,HIPS,PVC,PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as disposable cups, ice-cream cups, milk cups, chocolate boxes, candy boxes and fast-food boxes etc.

Features:
1. Humanized man-machine interface, sending sheet by chain, cutting by mold knives, and overturned mold can stack products automatically.
2. PLC controlling system, combining the preheating, material feeding, heating, drawing, forming, cutting and stacking into one machine.
3. In-mold cutting with high accuracy and high yield products.
4. Servo driving system helps the machine running more efficient.
5. Rapid mold change device.
6. Mold automatic memory system help you run machine easily.
7. With automatic lubrication system.

Main Parameters:

Model	TF70-A	TF70-B
Maximum forming area	300*680mm	450*680mm
Maximum forming depth	150mm (available to customize 180mm)	150mm (available to customize 180mm)
Maximum width of sheet	700mm	700mm
Thickness range of sheet	0.3-2mm	0.3-2mm
Maximum sheet roller diameter	1100mm	1100mm
Speed	28-35(cycles/min)	28-35(cycles/min)
Air pressure	0.7Mpa	0.7Mpa
Air consumption	2000 (Liters/min)	2000 (Liters/min)
Water consumption	15 (Liters/min)	15 (Liters/min)
Heating power	100 Kw	100 Kw
Main engine servo power with drive	11 Kw, Mitsubishi, Japan	15 Kw, Mitsubishi, Japan
Rewinding motor power	0.55Kw	0.55Kw
Power	3x380V+N+PE(±10%)50Hz	3x380V+N+PE(±10%)50Hz
Size of Machine	8500mm*2300mm*2650mm (L×W×H)	8500mm*2300mm*2650mm (L×W×H)
Weight	9000kgs	9000kgs

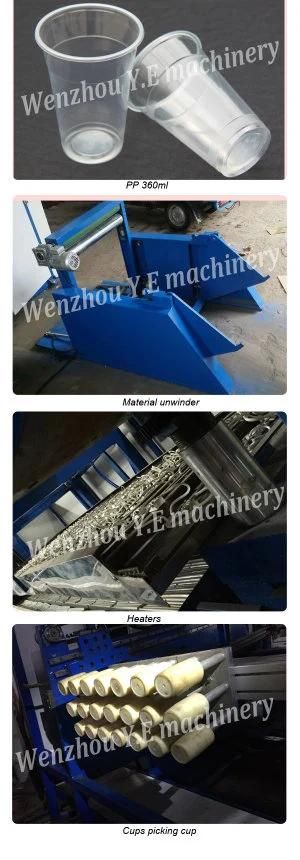

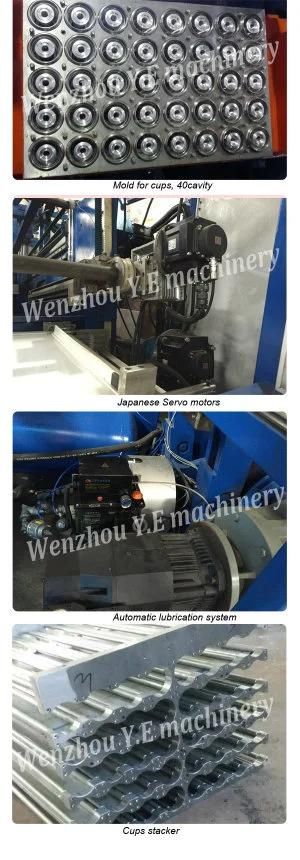

New Automatic tilt-mold thermoforming mahcine details:

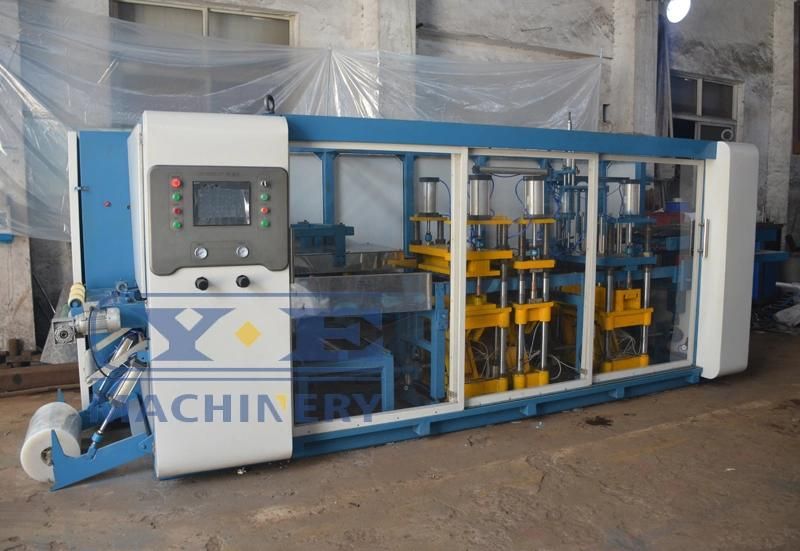

Plastic thermoforming machine details:



PP lid making machine, speed 25circles/min, with automatic stacking:
