• Model NO.：DSB75II
• Screw Diameter：75mm
• Export Port：Shanghai
• Condition：New
• Guarantee Time：1 Year
• Delivery Time：65days
• Machine Lifespan：>20 Years
• Company Attribute：Manufacturer
• Weight：7.2 Tons
• Screw L/D Ratio：24 L,D
• Screw Heating Capacity：6 Kw
• Output of HDPE：100kg,H
• Clamping Force：78kn
• Max.Size of Mold：188-600mm
• Voltage：Customer Specified
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Transport Package：Film Packing
• Specification：DSB75II
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：up to Product

Basic Info.

Model NO. DSB75II Screw Diameter 75mm Export Port Shanghai Condition New Guarantee Time 1 Year Delivery Time 65days Machine Lifespan >20 Years Company Attribute Manufacturer Weight 7.2 Tons Screw L/D Ratio 24 L/D Screw Heating Capacity 6 Kw Output of HDPE 100kg/H Clamping Force 78kn Max.Size of Mold 188-600mm Voltage Customer Specified After-Sales Service Engineers Available to Service Machinery Overseas Transport Package Film Packing Specification DSB75II Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity up to Product

Product Description

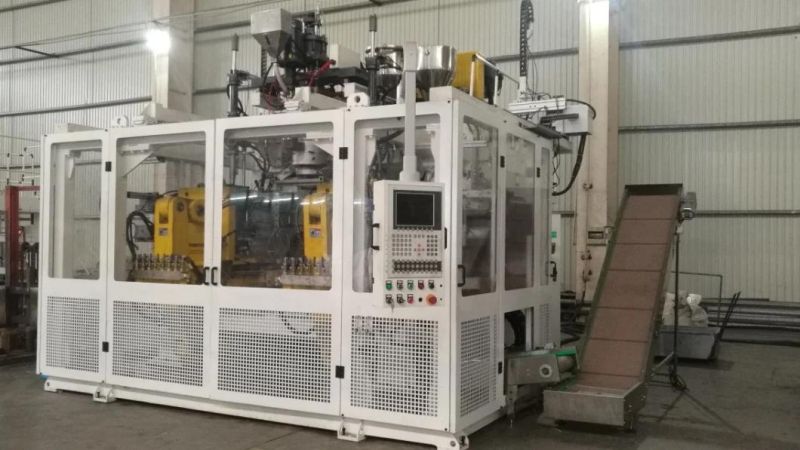

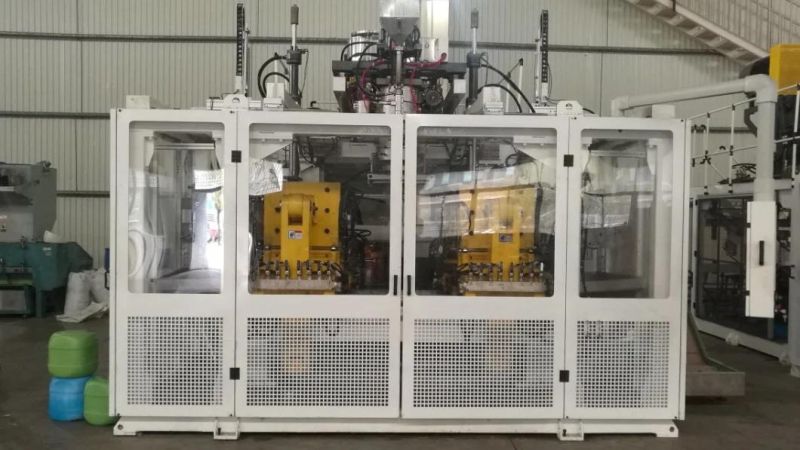

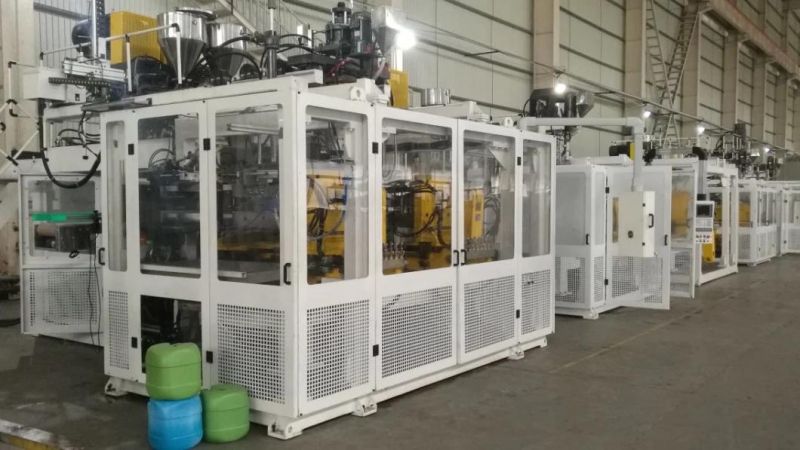

 This type of blow molding machine TP15D-90 can produce plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 20L. The machine is especially designed for producing  PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available.
Double station single die head design, very easy to operate and maintenance.)Most components of the blow moulding machine are from famous world brand.Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.All jerry cans, gallons, containers, bottles below 20L no problem


The main components of the machine.

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA  PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	TAIWAN JINSHUN
Oil pump and connection	TAIWAN JINSHUN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO



Max. Product volume	18 liters
Out put capacity	110~140pc/h
Screw diameter	90mm
Screw L/D ratio	25 L/D
Screw drive power	37KW
Screw heating capacity	18 KW
No.of heating zone	4 zones
Output of HDPE	130KG/H
Oil pump drive power	11 KW
Clamping force	110KN
Max.size of mold	240-660mm
Mold stroke	530 X 550mm
Max.die diameter	180mm
Blowing pressure	0.8 mpa
Air Volume	1M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
Size of Machine	4.2x3x3.2m
Weight of machine	11ton
