• Model NO.：FLZ-90
• Automation：Automatic
• Computerized：Non-Computerized
• Customized：Customized
• Certification：CE, ISO9001:2008
• Condition：New
• Waste Material Loading：Foce Feeding
• Waste Crushing：Optional
• Transport Package：Wooden Packages by Sea
• Specification：4000*1500*1800mm
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：84772010
• Production Capacity：40 Sets,Month

Basic Info.

Model NO. FLZ-90 Automation Automatic Computerized Non-Computerized Customized Customized Certification CE, ISO9001:2008 Condition New Waste Material Loading Foce Feeding Waste Crushing Optional Transport Package Wooden Packages by Sea Specification 4000*1500*1800mm Trademark HOIN Origin Ruian, Zhejiang, China HS Code 84772010 Production Capacity 40 Sets/Month

Product Description

FLZ-90 Wind-cooling Hot-cutting Plastic Granulating Machine

Specification:
This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Technical Variables

Main Parameter:

Model	FLZ-90	FLZ-100	FLZ-110	FLZ-120
screw diameter	90mm	100mm	110mm	120mm
screw L/D	18:1	18:1	18:1	18:1
screw rotation	10-100r/min	10-100r/min	10-100r/min	10-100r/min
main motor	22kw	30kw	37kw	45kw
max extrusion output	68kg/h	95kg/h	120kg/h	138kg/h
Weight of machine	2600kg	2800kg	3000kg	3200kg
Dimension L*W*H	4000*1500*1800mm	4200*1500*1800mm	4400*1500*1800mm	4600*1500*1800mm

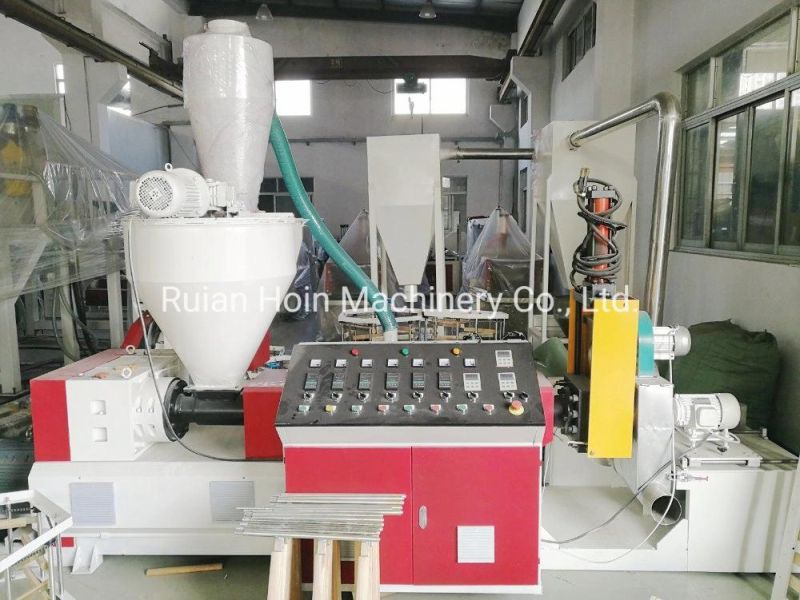

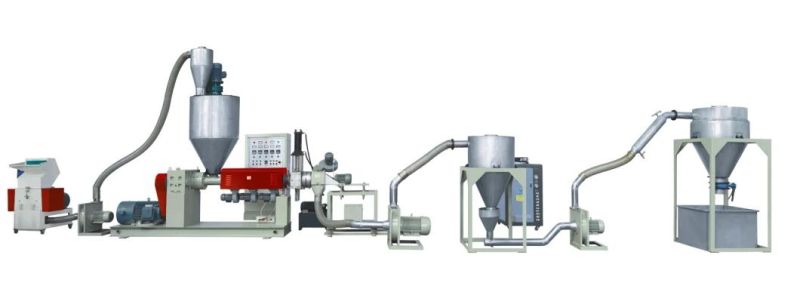

Machine Pictures for Reference:

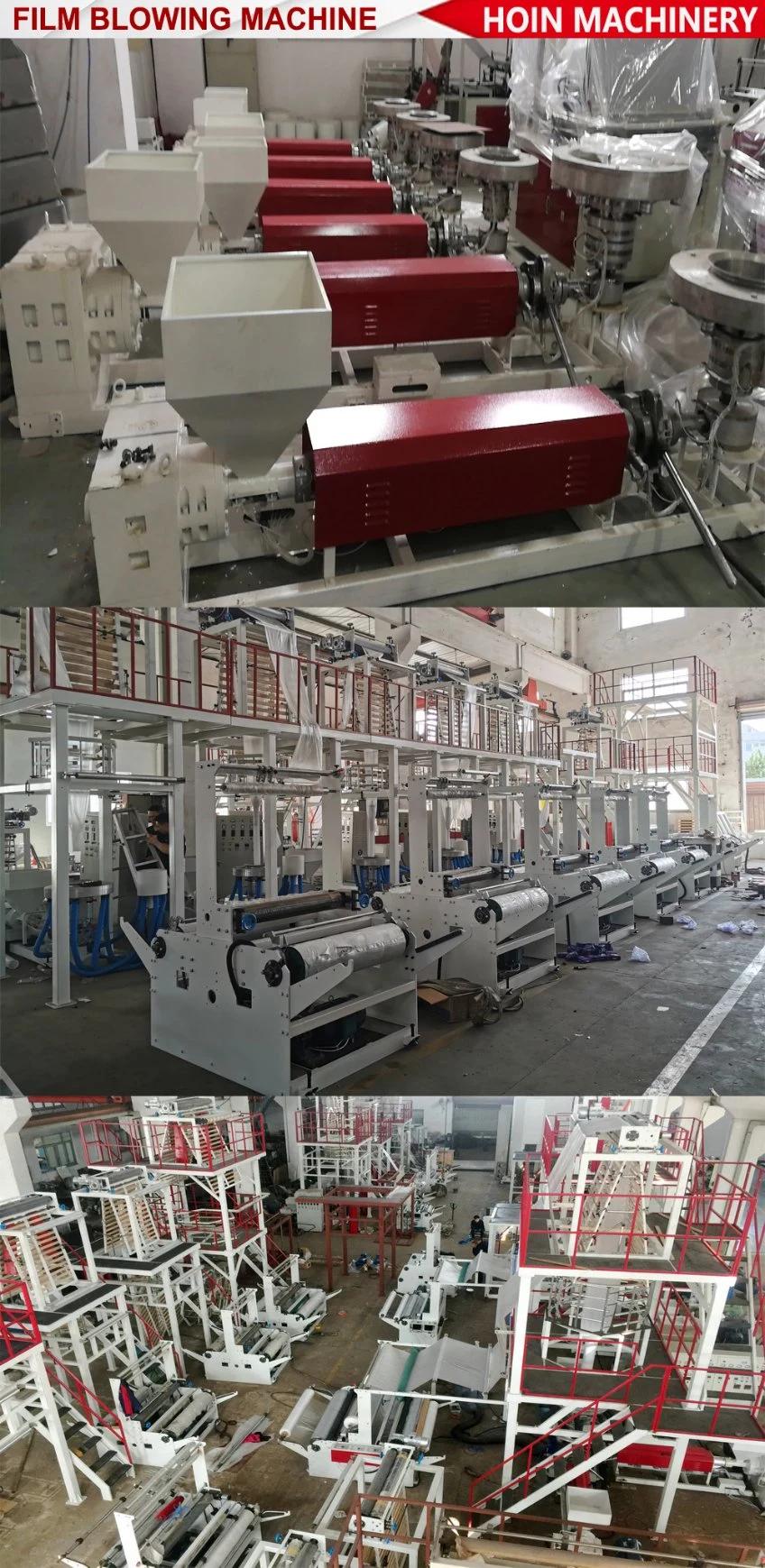

Workshop of HOIN:

More Products Optional
After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
