Basic Info.

Model NO. RTWWT Computerized Customized Certification ISO9001:2008, CE Color Could Be Customized Type of Extruder Connical Screw After-Sale Service Engineers Available to Service Machinery Overseas Stage Single Stage Semi-Plasticized or Plasticized Feeder Type by Conveyor Capacity 200~1200kg/H Transport Package Wrap Film Specification TSD300~1000 TSP300~1000 Trademark TopMachinery Origin China HS Code 8477201000 Production Capacity 300~1500kg/H

Product Description

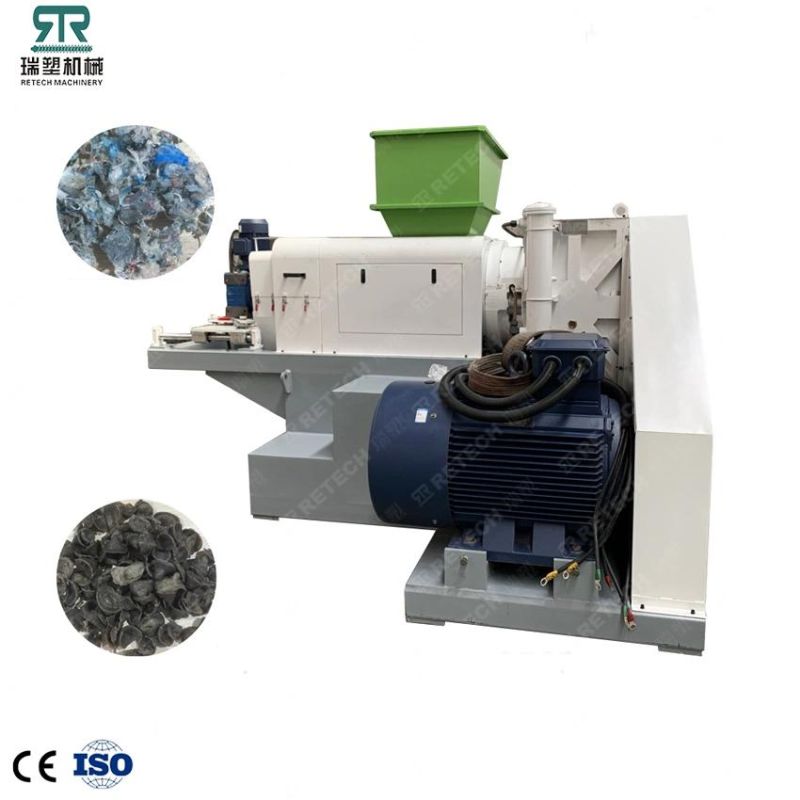

Plastic Squeezing Machine for Waste LDPE LLDPE Film Squeezer


Description of Plastic Squeezing Machine for Waste LDPE Film Squeezer

This Film Squeezing Machine is used for drying those washed film, woven bags.etc. and make it like granules. After that the granules can put into our extruder directly.

It is a full automatic Squeezing & Pelletizing Machine to the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is only 3-5%. The capacity would be customized according to the requests of clients.


Application of Plastic Squeezing Machine for Waste LDPE Film Squeezer:

This plastic squeezer is used for squeezing and re-pelletizing PP/PE film, woven bag, ton bags, nylon etc. it's equipped with advanced screw extrusion system, squeezing efficiency could reach 95%. Also can work on the accordance with washing and pelletizing line with stable capacity and whole process automation.
1. LDPE waste film recycling and washing line
2. PE agriculture using films crushing and washing line
3. Waste PE film recycling line
4. Ethylene ground film washing, drying and regranulating line
5. Waste film recycling and washing line
6. PP woven bag recycling and washing line



Main Features of Plastic Squeezing Machine for Waste LDPE Film Squeezer:

The squeezing machine adopt screw pushing pressing and heating plasticizing theory to remove and dry wet film flakes from the PE PP film and bags washing recycling machines. It could apply for plastic PE PP film, agriculture film, PP raffia woven bags, woven sack, jumbo bag, and other plastic film material drying. It is a kind idea equipment to realize removing and drying the wet film quickly.

The machine equipment special alloy steel screw and barrel, hard teeth gearbox, net, cutter and blowing system, which is a kind of automatic machine to dry the PE HDPE LDPE LLDPE PP PET film efficiently.

Because of adopting screw squeezing and electric heating both drying way, it could remove the moisture high efficient, good plastic plasticizing and with high capacity.

The squeezer is easy to operate and maintenance, drying perform excellent, could make the final material moisture level lower than 3%, which is a real ideal product for plastic recycling business, especially good help for material next granulating to improve the capacity.

The capacity of the squeezer could be customized.



Advantages of Plastic Squeezing Machine for Waste LDPE Film Squeezer:

1. Unique screw squeezing design removing moisture theory, solving the common problem that it is hard to dry the wet film during the plastic film drying recycling field.

2. Good drying performance, could make the final moisture level lower than 3%.

3. Advantage technology, lower power consumption, lower noisy, easy operating and maintenance, safe running and high cost performance.

4. Mechanical squeezing dewatering way, comparing with the traditional centrifugal and hot air drying dewatering way, could save space and energy much more.

Models of Plastic Squeezing Machine for Waste LDPE Film Squeezer:


Model	Motor power	Capacity
TSD300	75kw	300kg/h
TSP300	75kw	250kg/h
TSD400	90kw	400kg/h,
TSP400	90kw	320kg/h
TSD500	110kw	500kg/h
TSP500	110kw	460kg/h
TSD800	132kw	880kg/h
TSP500	132kw	750kg/h
TSD1000	165kw	1200kg/h
TSD1000	165kw	980kg/h

Semi-Plasticized Material:


The whole squeezing machine system including:
Squeezer machine
Blowing system
Storage hopper

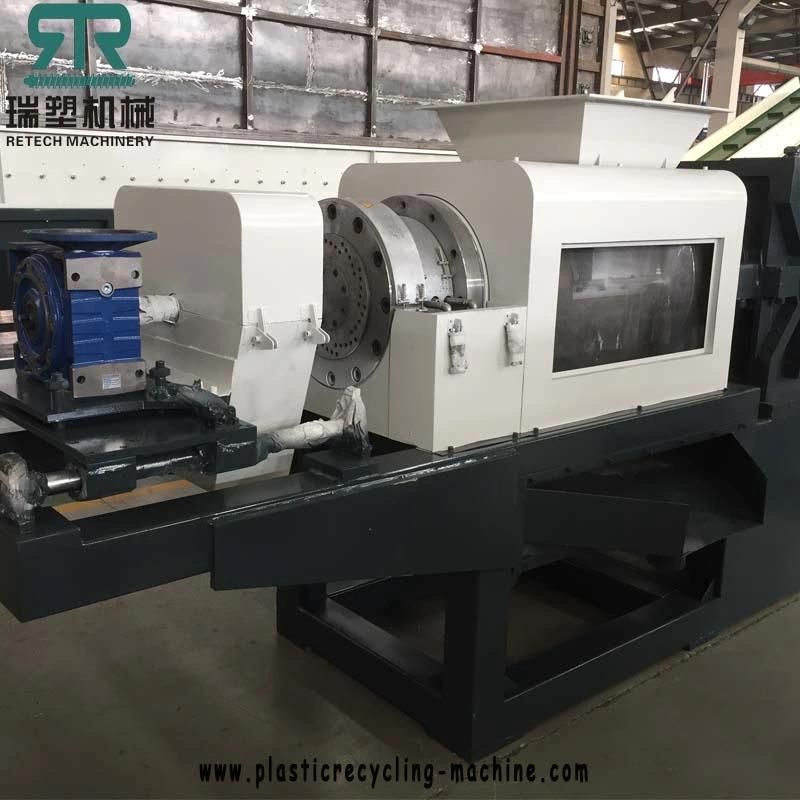

Semi-Finished Squeezer:



360°services:

Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services

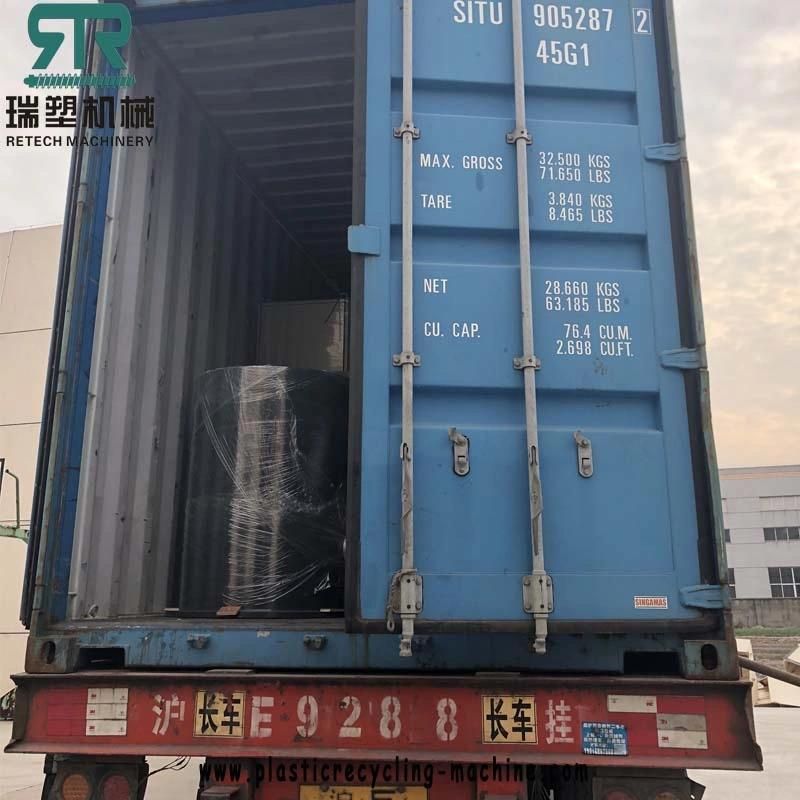

Package and Loading:


About RETECH:

Retech Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including PET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....We've been on this industry for 15 years.
If you are interesting more details of our products, please contact with us no hesitation!
