• Model NO.：LXCPU
• Output Flow：100g-30kg,Min
• Transport Package：Plywood Case
• Specification：2200*2000*2200
• Trademark：Lingxin
• Origin：Mainland China
• HS Code：8477409000
• Production Capacity：40sets,Month

Basic Info.

Model NO. LXCPU Output Flow 100g-30kg/Min Transport Package Plywood Case Specification 2200*2000*2200 Trademark Lingxin Origin Mainland China HS Code 8477409000 Production Capacity 40sets/Month

Product Description

COMPANY INTRODUCTION VIDEO LINKE: https://youtu.be/ZbQmDYK5p-E

Equipment Features:
Homogeneous mixing, no bubbles.
Hot oil circulation constant temperature system
High precision metering pump
PLC touch screen human-computer interface control
Equipped with vacuum degassing device.

Characteristics:
Sandwich type material tanks, good heat preservation.
PLC touch screen human-computer interface control,easy to use, clear operation status situation.
New type mixing head, even mixing, low noise, sturdy and durable .
High precision pump, accurate metering.
Easy for maintenance, operation and repair.
Low energy consumption.

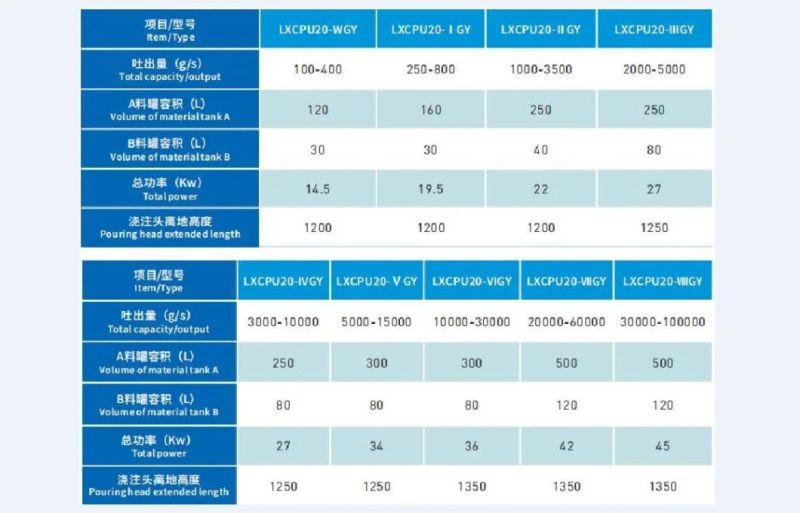

Technical Parameters:

Voltage	380V 50Hz
Output	250-800 g/s; 1-3.5kg/min;2-5kg/min; 3-8kg/min; 5-15kg/min
Material bucket volume	30L-500L
Power	25-35KW
Injection Pressure	0.01-0.1Mpa
Injection time	0.5~99.99S (correct to 0.01S)
mixing head	Around 6000rpm, forced dynamic mixing
compressed air requirement	Dry, oil free  P:0.6-0.8MPa Q:600L/min(Customer-owned)
Vacuum requirement	P:6X10-2Pa speed of exhaust:15L/S
Input power	Three-phrase five-wire,380V 50HZ
Temperature control system	18~24KW
Color (selectable)	Cream-colored / deep blue
Weight	2000kg

Equipment Application:

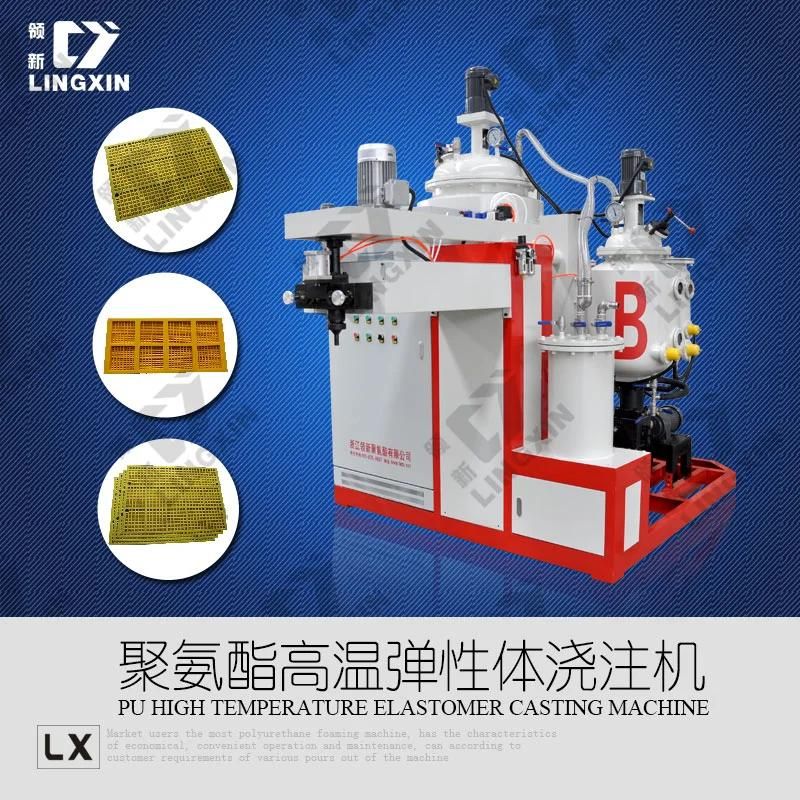

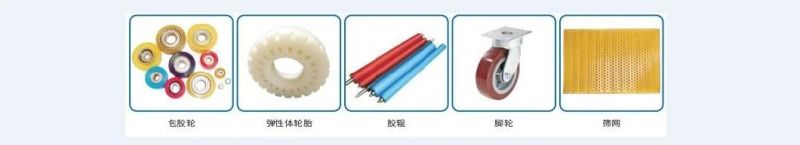

PU elastomer casting machine is fit for making sealing element, wheel, rubber covered roller,
sieve, impeller, OA machine, skating wheel, buffer, and other kinds of PU elastomer, CPU products.
