• Model NO.：MT20-63
• Condition：New
• High Capacity：400kg,Hr
• Transport Package：Wood
• Specification：sgs
• Trademark：middle tech
• Origin：Zhangjiagang City
• HS Code：84772090
• Production Capacity：250kg,Hr

Basic Info.

Model NO. MT20-63 Condition New High Capacity 400kg/Hr Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84772090 Production Capacity 250kg/Hr

Product Description

Product Description
Gerneral description:
New type high output Extruder Machine / PVC Pipe Extrusion Production Line

Our advantage:
--- Professional technician group ensure the performance of the machine
--- More than 10 years experience to cooperate with world famous factories
--- Advanced design for screws supplies powerful safeguard for the PVC plasticization.
--- Unique inside oil controlling temperature system adapts different technology formulas.
--- Special servo motor to ensure the haul off running
--- Special design of cutter ensure the cutting surface

Line description

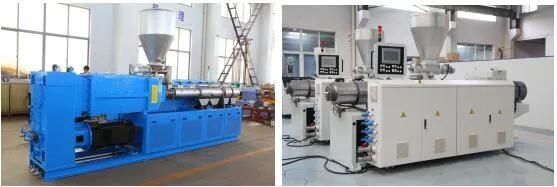

For 16-63mm pipes, you can use SJSZ65/132 extruder. It can produce 2 pipes at the same time.
If use SJSZ80/156 extruder, pipe range is 16-63mm too. And it can produce 4 pipes at the same time.


The working process of PVC Twin Pipe Machinery:

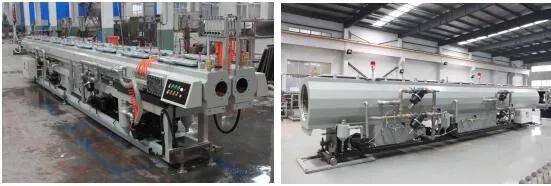

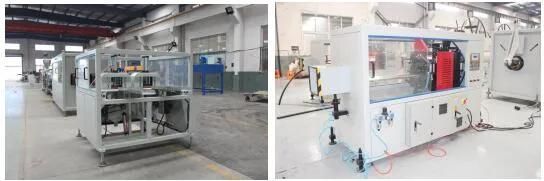

Raw material+additive → mixing → screw feeding → conical double screw extruder → mould → vacuum formin table → haul-off unit → automatic cutting machine → stacker

Auxiliary equipments: mixer, printer, crusher, pulverizer, belling machine, etc.

Line configuration


Main  extruder	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Main  motor  power(KW)	22	37	55	110
Pipe  diameter(mm)	16-63mm	75-160mm	200-400	400-630
Hauling  speed(m/min)	0.8-10	0.5-5	0.3-4	0.2-3
Max. Capacity(kg/h)	120	260	400	600
Total  power(KW)	89	95	135	255
