• Model NO.：HSD
• Pipe Diameter：63-250mm

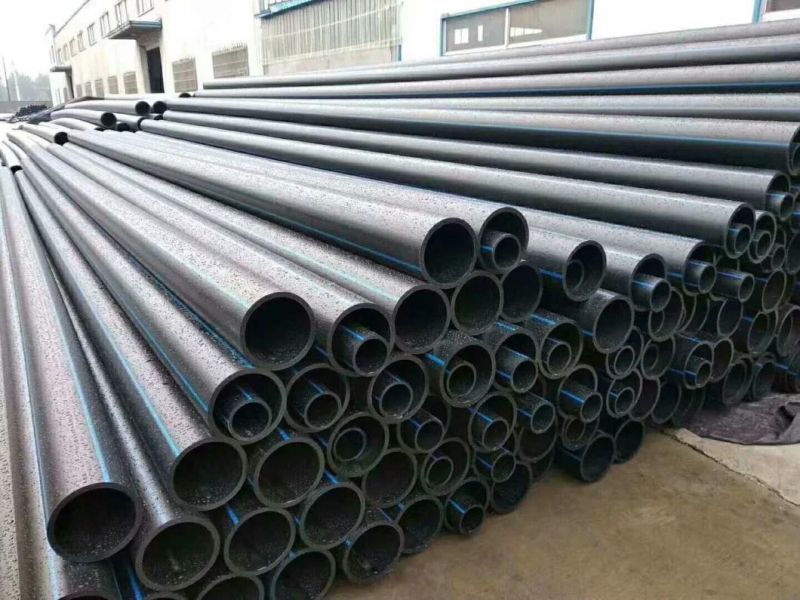

• Application：Water Supply Pipe
• Transport Package：Standard Package for Export
• Specification：ISO9001: 2008
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：120-900kg,H

Basic Info.

Model NO. HSD Pipe Diameter 63-250mm Application Water Supply Pipe Transport Package Standard Package for Export Specification ISO9001: 2008 Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 120-900kg/H

Product Description

   High Efficient Plastic Machine HDPE Pipe Extruder


High Efficient Plastic Extruder is applicable for extrusion of PE, PP, PB, PERT, ABS pipes or plates.

1. Gearbox with China's largest gearbox brand Jiangsu Guomao gearbox, speed ratio 16: 1, motor speed to the screw can reach 90 rpm, while the ordinary reducer speed ratio of 20: 1, 70 per minute turn, to ensure that the SJ-75/33 extruder 300 kg per hour extrusion volume.

2. Motor and gearbox shaft connection, greatly improving the belt connection slip caused by power transmission losses.

3. A flange is added between the gearbox and the screw, blocking the heat transfer. Cylinder feeding part of the water jacket design, length 800 mm, played a lower temperature, to ensure that forward movement of raw materials.

4.The introduction of Germany's latest solid-liquid separation of the screw extrusion technology, the barrel has processing groove 8-10, the use of mandatory feeding, so that the material in about 1 meter distance can be all melted. Discharge when the barrel has a pin, a share is divided into 9 shares, and then divided into 18 shares, the material plasticized very uniform.

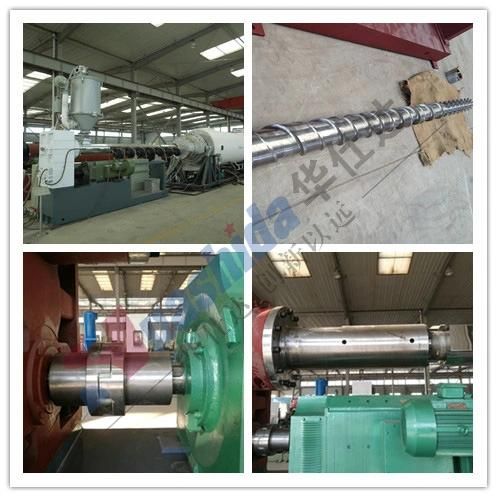

1. High efficient plastic extruder 2. High efficient screw  3. Shaft connection 4. 800mm water coat


Pre-Sales Service
 Inquiry and consulting support.
Equipment pre-commissioning& testing support.
 View our Factory.

After-Sales Service
 Machinery warranty time is 12 months from the date of Bill of Lading. electronic parts 6 months.
 Training how to install the machine and how to operate the machine.
 Engineers available to service machinery overseas at customer cost.

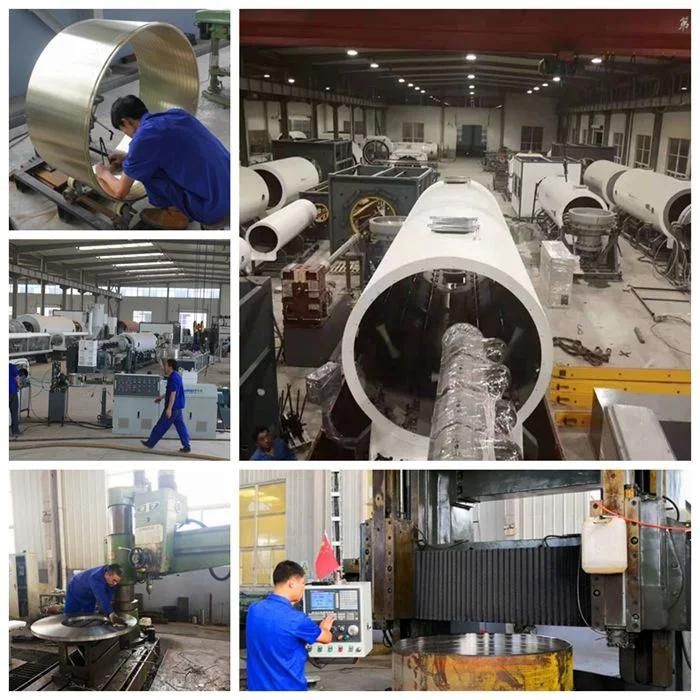

Qingdao Huashida Machinery Co., Ltd is a professional plastic extrusion production line manufacture since 2003. The factory covers 34000 square meter. Our products such as HDPE pressure pipe for gas or water transmission, structural wall pipe extrusion line, corrugated pipe extrusion line . The products have been exported to Middle East, Russia, Africa. Turkey, Korea.
