Horizontal Semi-Automatic Baler for Waste Plastic, Waste Paper Compacting
GUANGZHOU PANYU QIANGYE MACHINERY CO., LTD.- Material Processed：Plastic Bottle
- Plastic Type：PET
- Screw：No
- Automation：Semi-Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：BYB-150
- Transport Package：Plastic Film
- Specification：bale size: 1100x830mm
- Trademark：QIANGYE
- Origin：Guangzhou China
- HS Code：8422400000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. BYB-150 Transport Package Plastic Film Specification bale size: 1100x830mm Trademark QIANGYE Origin Guangzhou China HS Code 8422400000 Production Capacity 100 Sets/YearProduct Description

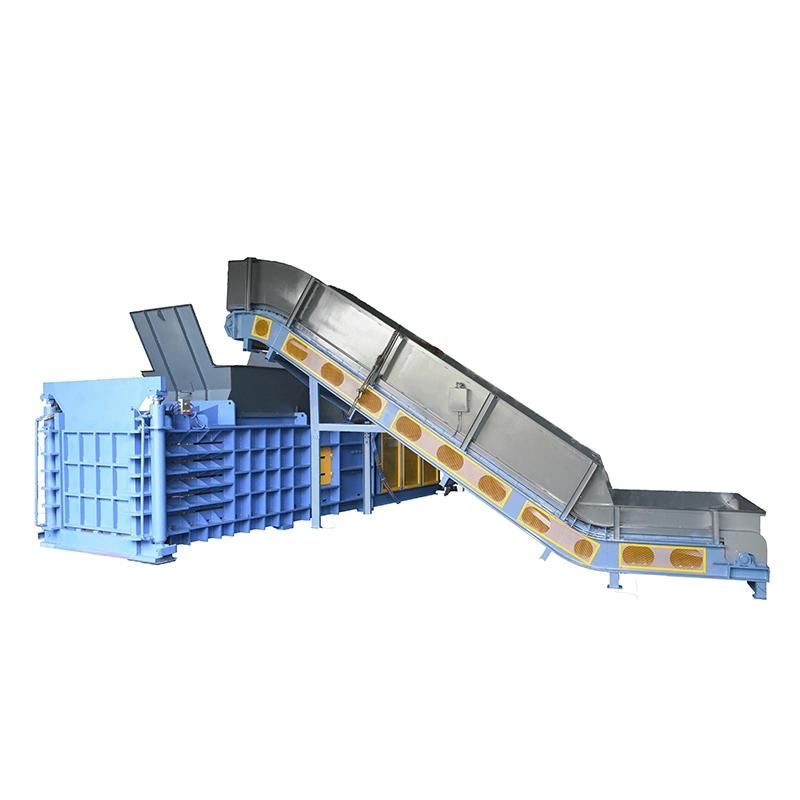

Semi-automatic baler is applicable to waste plastic ,PET bottle ,waste paper, fiber and any other waste material.1.Horizontal semi-automatic hydraulic baler with lift door(closed mouth)
2.PLC control system, can inspect feeding automatically, compressed directly to the front every time, improve compression density, convenient feeding.
3. Scrap PET Baler Machine/Hard Plastic Bottle Baler Machine uses Up and down hydraulic door-open, one-off bale out, covers less area, convenient, safety.
4.Feeding material by conveyor or manually.
Data sheet:
1.Bale size:(700-1500)*1100*830mm
2.work pressure:150Ton
3.bale weight: about 450kg-500kg
4.main power:45kw
5.conveyor power:7.5kw
6.overall dimension:7200*3020*2000mm
7.total weight:16000kg+5000kg(conveyor)
8.electric panel: Japanese appliance
9.pump:Vickers 4535V60.38
