• Model NO.：WTPE-2S
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Material：LDPE,LLDPE
• Transport Package：Plastic Film Packing
• Specification：6*8*5m
• Trademark：WT
• Origin：China

Basic Info.

Model NO. WTPE-2S Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Material LDPE/LLDPE Transport Package Plastic Film Packing Specification 6*8*5m Trademark WT Origin China

Product Description

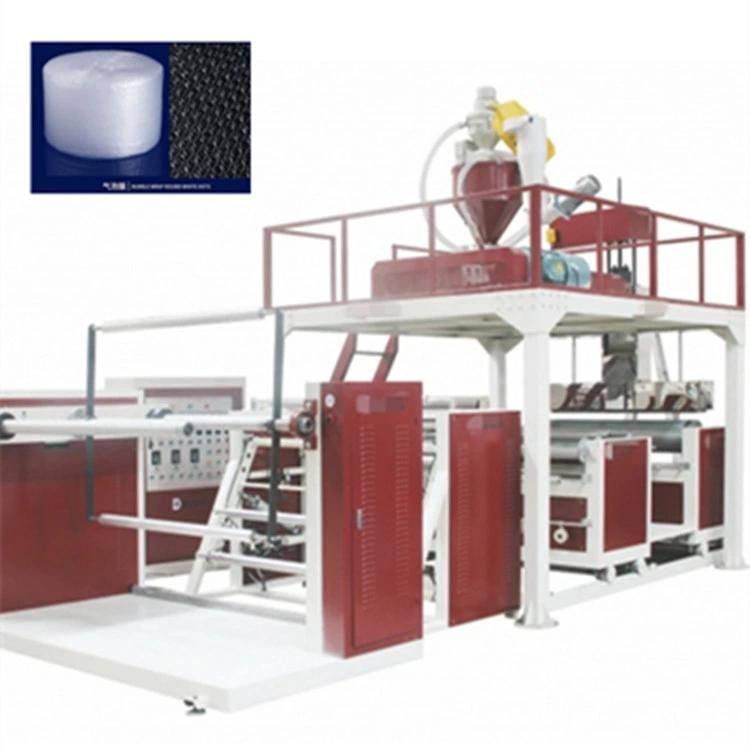

2 Layers bubble film making machine

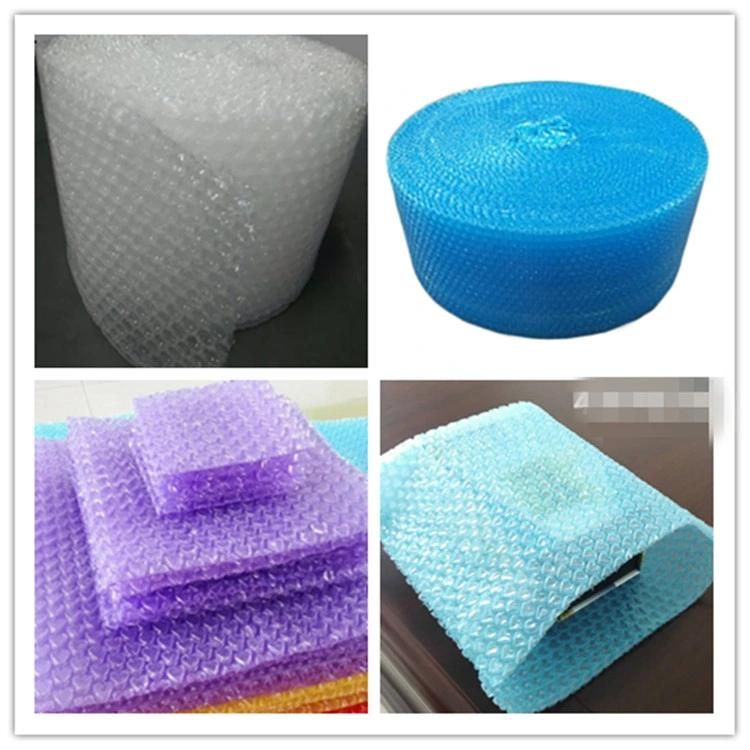

Bubble Wrap Manufacturing Machine is made of LDPE material. It can be used for various packaging
purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make
into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading,
heat insulation, and packaging.

Main Specification:


Model	WT-1600
Main and auxiliary extruder screw diameter	Φ75mm
L/D	30:1
Main and auxiliary extruder electrical power	22KW
Width of production	1600 mm
Main bubble specification	10×3.6mm 6×3.2mm 25×10mm 30×10mm
Output	80-130kg/h
Total installed capacity	75kw
Overall dimension	6000mm×3500mm×3150mm
Gross weight	4T
