• Model NO.：ABLD100
• Screw Diameter：100mm
• Screw L/D Ratio：25 L,D
• Clamping Force：440kn
• Gurantee Time：1 Year
• Export Port：Shanghai
• Weight：22.5 Tons
• Delivery Time：50~100 Days
• Machine Lifespan：>20 Years
• Voltage：Customer Specified
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Weight of Machine：11ton
• Size of Machine：4.2X3X3.2m
• Water Consumption：100L,Min
• Cooling Water Pressure：0.3MPa
• Air Volume：1.2m3,Min
• Transport Package：Film Packing
• Specification：ABLD100
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：up to Product

Basic Info.

Model NO. ABLD100 Screw Diameter 100mm Screw L/D Ratio 25 L/D Clamping Force 440kn Gurantee Time 1 Year Export Port Shanghai Weight 22.5 Tons Delivery Time 50~100 Days Machine Lifespan >20 Years Voltage Customer Specified After-Sales Service Engineers Available to Service Machinery Overseas Weight of Machine 11ton Size of Machine 4.2X3X3.2m Water Consumption 100L/Min Cooling Water Pressure 0.3MPa Air Volume 1.2m3/Min Transport Package Film Packing Specification ABLD100 Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity up to Product

Product Description

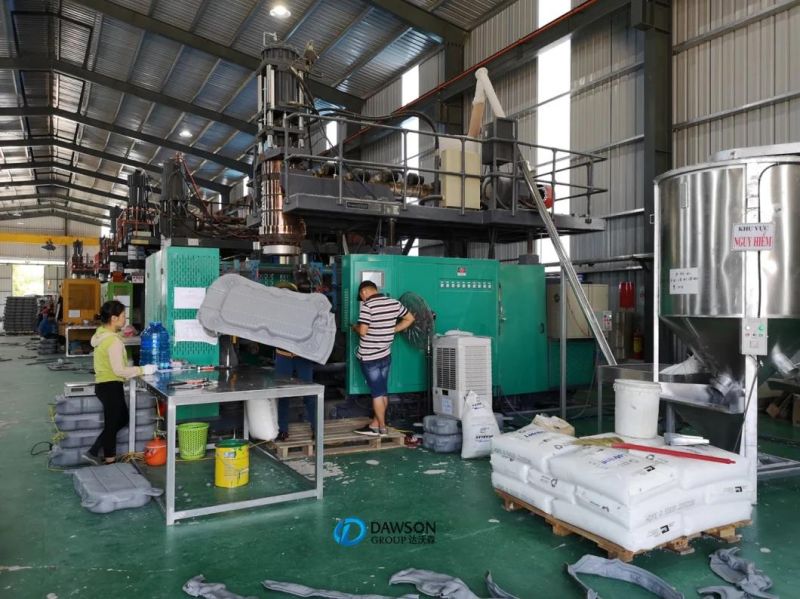

This type of blow molding machine ABLD100 can produce plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 120L. The machine is especially designed for producing  PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available.
Single station single die head design, very easy to operate and maintenance.)Most components of the blow moulding machine are from famous world brand.Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

The main components of the machine. ( ABLD100 )

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA  PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	TAIWAN JINSHUN
Oil pump and connection	TAIWAN JINSHUN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO

Technical Parameters: ( ABLD100)

Max. Product volume	120 liters
Out put capacity	40~50pc/h
Screw diameter	100mm
Screw L/D ratio	25 L/D
Screw drive power	45KW
Screw heating capacity	20 KW
No.of heating zone	4 zones
Output of HDPE	160KG/H
Oil pump drive power	37 KW
Clamping force	440KN
Max.size of mold	800*1000mm
Mold stroke	500-1200mm
Max.die diameter	430mm
Blowing pressure	0.8 mpa
Air Volume	1.2M³/MIN
Cooling water pressure	0.3mpa
Water consumption	100L/MIN
Size of Machine	4.2x3x3.2m
Weight of machine	11ton
