HDPE Bags Film Blowing Machine Extruder
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
- Automation：Automatic
Base Info
- Model NO.：SJ-
- Computerized：Computerized
- Machine Weight：1.5t
- Certification：CE, ISO9001:2008
- Temp Controller for Film Blow Machine：Omron
- Inverter for Film Blowing Machine：Panasonic
- Guarantee：One Year
- Film Blowing Width：100-600mm
- Output：30-70kg,H
- No of Heads：2
- Film Blowing Thickness：LDPE0.015-0.20mmhdpe0.008-0.05mm
- Transport Package：Film Package
- Specification：SGS
- Trademark：YUNBANG
- Origin：China
- HS Code：8477309000
- Production Capacity：15 Sets,Month
Description
Basic Info.
Model NO. SJ- Computerized Computerized Machine Weight 1.5t Certification CE, ISO9001:2008 Temp Controller for Film Blow Machine Omron Inverter for Film Blowing Machine Panasonic Guarantee One Year Film Blowing Width 100-600mm Output 30-70kg/H No of Heads 2 Film Blowing Thickness LDPE0.015-0.20mmhdpe0.008-0.05mm Transport Package Film Package Specification SGS Trademark YUNBANG Origin China HS Code 8477309000 Production Capacity 15 Sets/MonthProduct Description
Product Description
China single screw double die head plastic LDPE film blowing machine (SJ-50)Use:
It is used for blowing LDPE, HDPE, LLDPE which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. With double die head for high output.
Featrues:
1.The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity.2. The screw and material barrel adopt 38 CRMOALA which has been nitrogen treated
3. With wind cooling, air compressor
4. casted aluminum heater
5.Frequency converter speed control
6. High output, Suitable for T shirt bag production
Main Parameters:
| Model of Machine | SJ-600*2 |
| Max.Width of film | 600mm*2 |
| Screw diameter | 50mm |
| L/D | 28:1 |
| Max Extrusion Output HD | 70kg/hr |
| Power volatge | AC380V,50HZ |
| Screw's Material | 38 CRMOALA |
| Barrel's Material | 38 CRMOALA |
| Barrel's Cooling Fan | 250W×2 |
| Temperature Control (zone) | 4 |
| Driving Motor (kw) | 30 |
| Type OF Winder | Surface Friction Winder |
| Weight of Machine | 3000kg |
| Overall Dimensions | 5500*3400*4300mm |

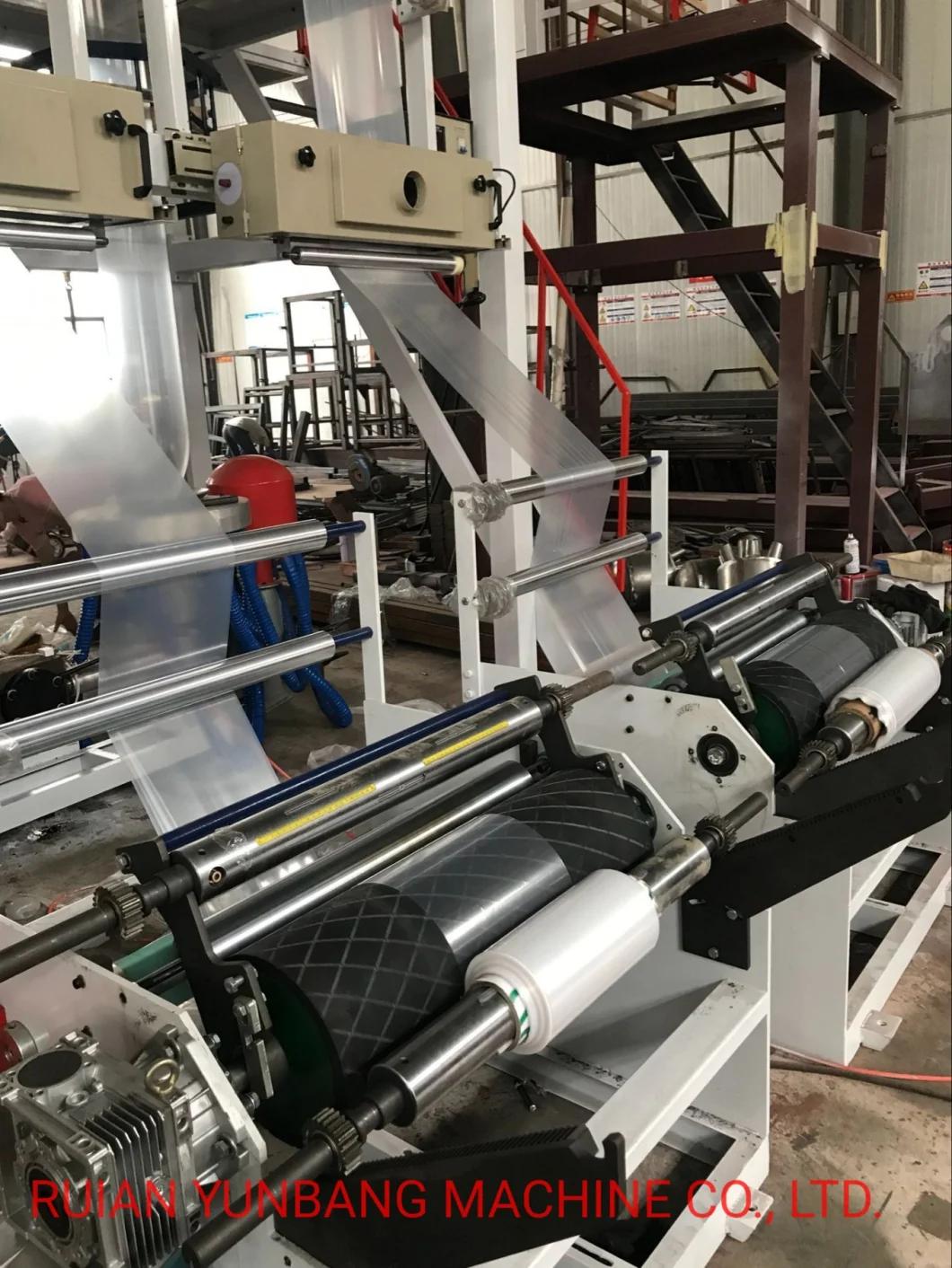

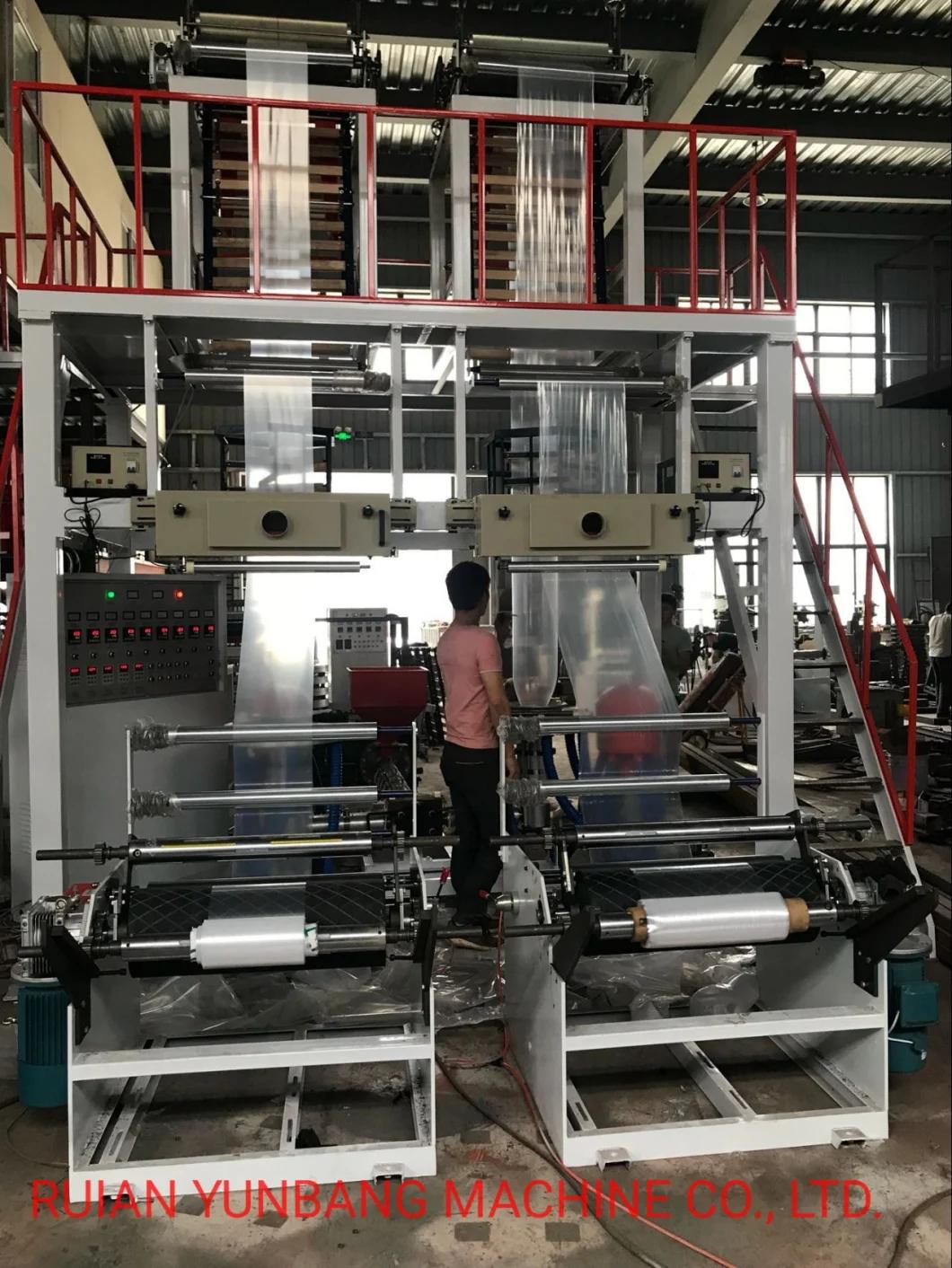

Film blowing machine workshop:
