• Model NO.：SJSZ65,132
• Assembly Structure：Integral Type Extruder
• Screw：Twin-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Film Packed or Wooden Case
• Specification：SJSZ65,132 SJSZ80,156 SJSZ92,188
• Trademark：BEIERMAN
• Origin：China
• HS Code：8477209000
• Production Capacity：50 Per Quarter

Basic Info.

Model NO. SJSZ65/132 Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package Film Packed or Wooden Case Specification SJSZ65/132 SJSZ80/156 SJSZ92/188 Trademark BEIERMAN Origin China HS Code 8477209000 Production Capacity 50 Per Quarter

Product Description

Good plasticizing effect PVC UPVC plastic pipe/profile SJSZ series 80-450kg capacity double screw extruder with Cast aluminum heater

Conical twin screw extruder can be widely used for different PVC plastic products extrusion. Combined use with different plastic auxiliary machines, it can be used for the PVC pipe, PVC profile, PVC board, PVC sheets and PVC pelletizing.special designed conical twin screws designed, which is perfectly good for the PVC extruding.

According to different PVC formulation, it will purchase different screw structure design.

Technology information:

Model	SJZ-45	SJZ-50	SJZ-55	SJZ-65	SJZ-80	SJZ-92
Screw diameter(mm)	45/90	50/105	55/120	65/132	80/156	92/188
Screw speed(rpm)	45	45	45	45	34.7	34.7
Driving motor(kw)	15	18.5	22	37	55	110
Output(kg/hour)	110	125	150	250	380	720
Center height(mm)	1000	1000	1000	1000	1100	1100
Weight(kg)	3000	3000	3500	4000	5500	8000
Dimension(m)	3.3X1.2X2.1	3.6X1.1X2.1	3.6X1.1X2.1	4.2X1.5X2.4	4.7X1.5X2.4	6X1.6X2.5

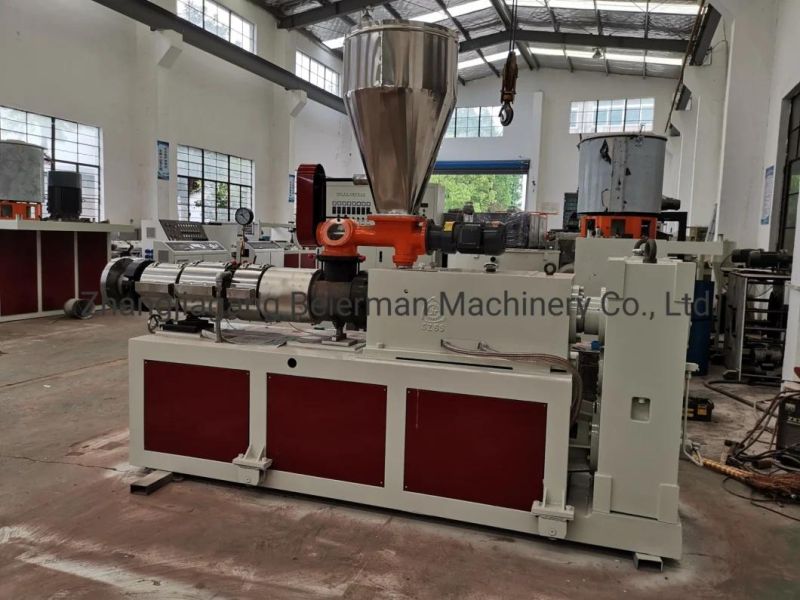

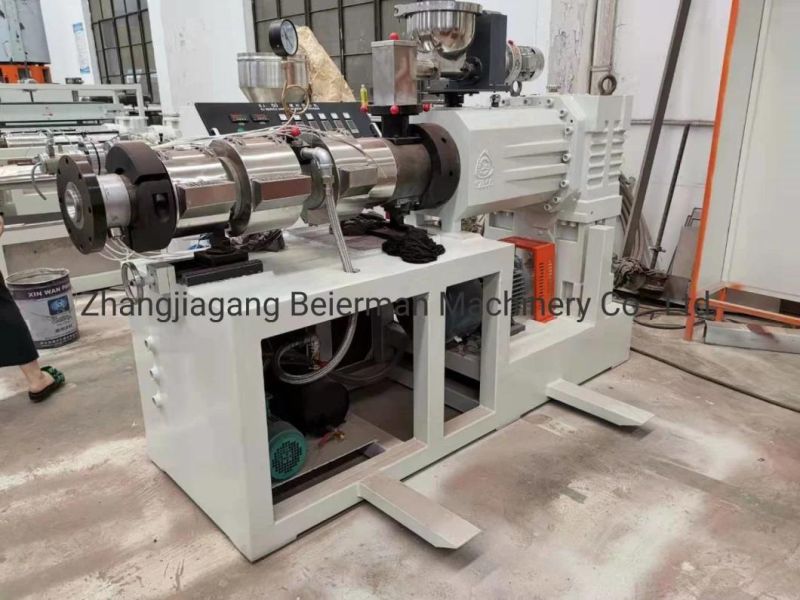

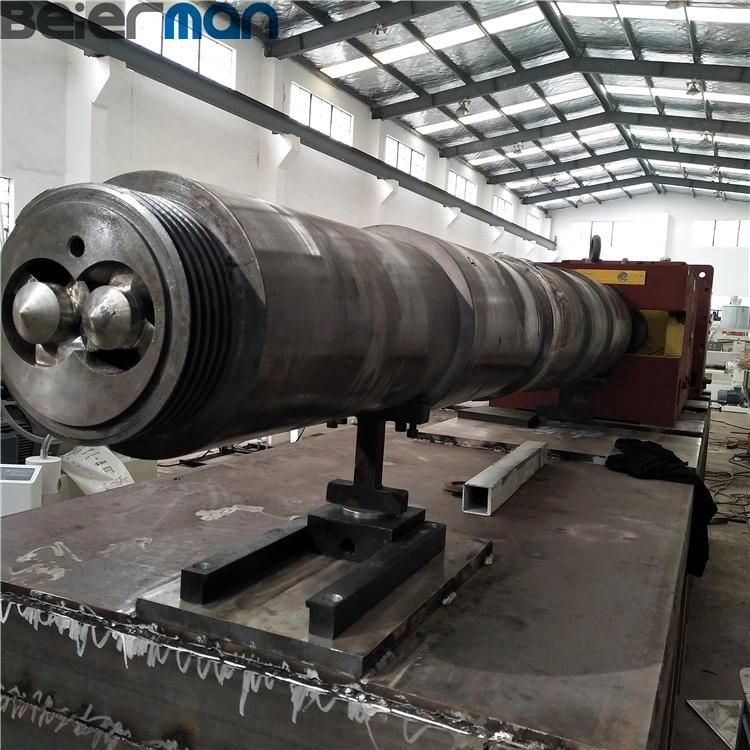

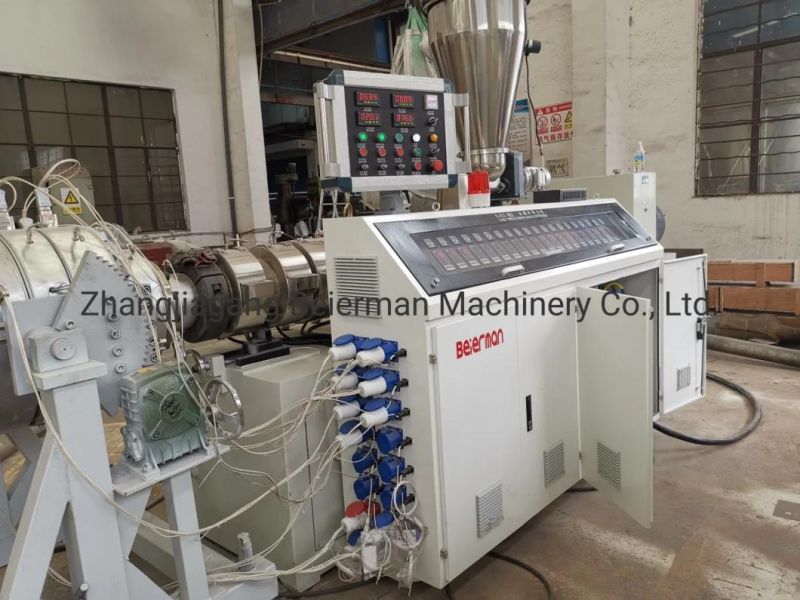

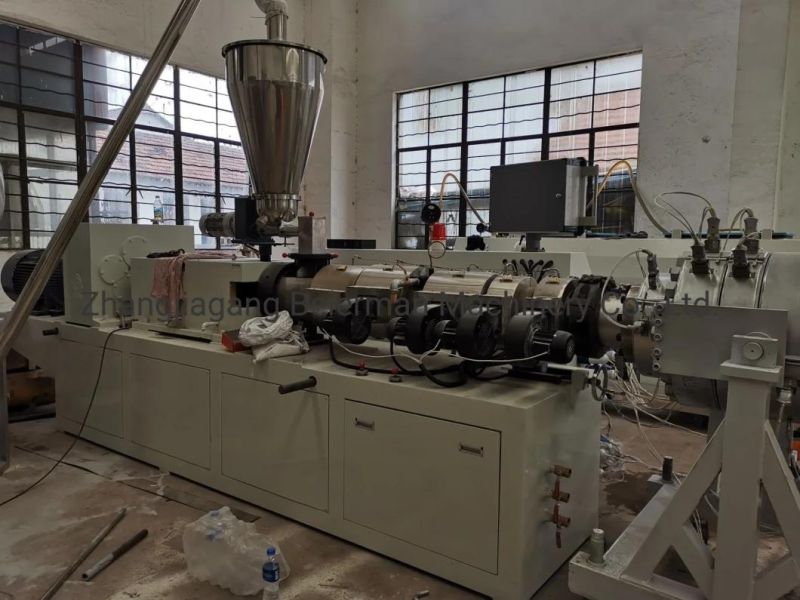

Machines photos

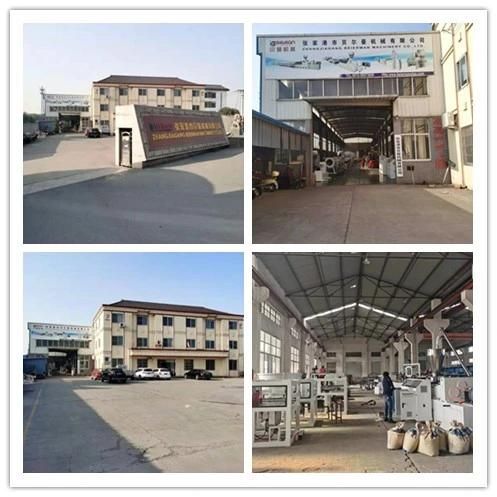

Our company

Zhangjiagang Beierman Machinery CO.,LTD.is a modern factory, which engaged in the plastic extrusion machine and recycling machines' researching, manufacturing and saling. Our professional research teams, sales teams, rich experience and processing equipment will offer customers high quality machines and perfect after sales services.

Our major products including: single screw extruder, twin screw extruder, HDPE pipe production line, PP-R pipe production line, PVC pipe production line, plastic profile production line, plastic sheet production line, plastic mixing machine, waste plastic recycling machines, plastic pelletizing machines and relative auxiliary machines for the plastic machines. We will offer the customers the whole set of solution from extrusion to recycling and turn key projects. Our machines are highly praised by our customers for perfect perfomance, quick service, advantage technology.

Customer's satisfied is our target forever. We will offer detail solutions according to different customers detail conditions. Customers' expected products, services is what we are always insisting. High quality, Quick services, mutually beneficial will our promise to customers around the world.

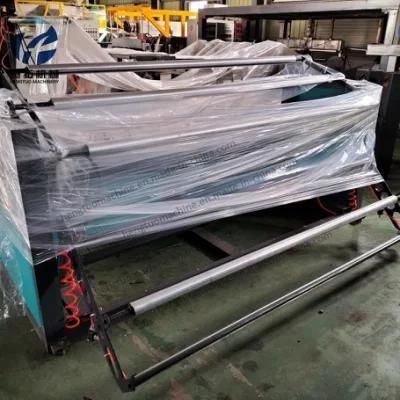

Packing and Delivery

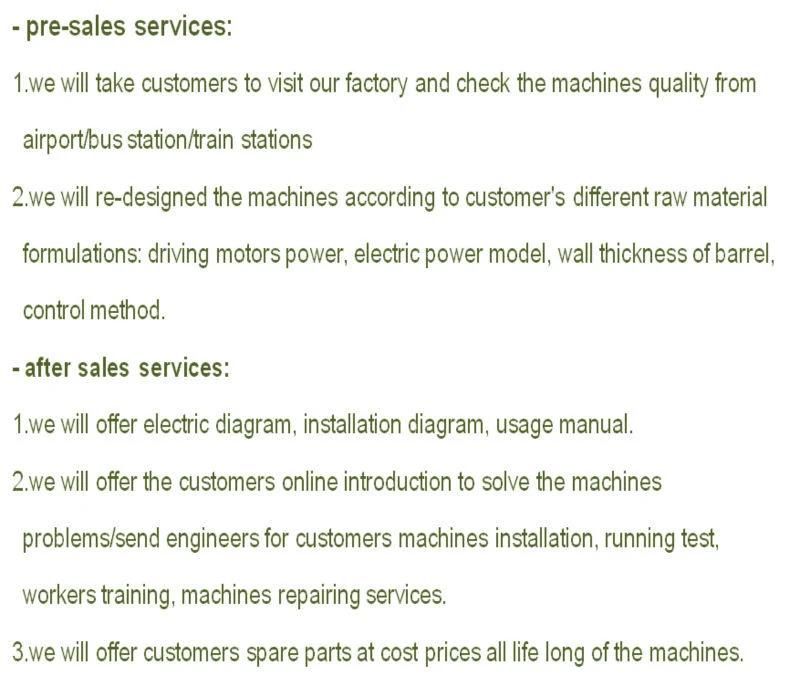

Our services

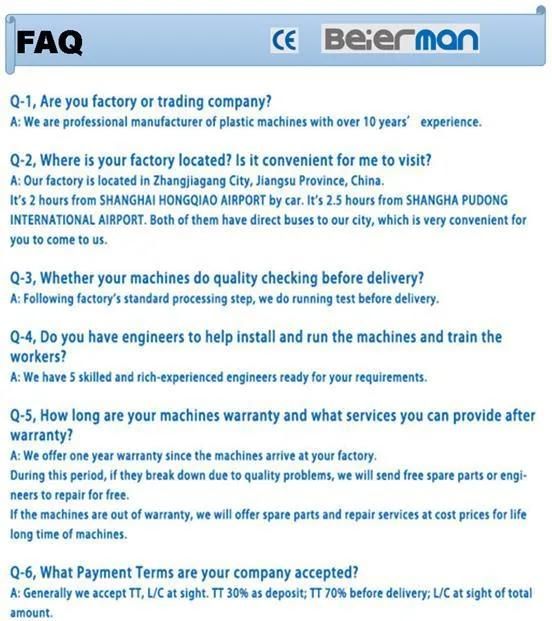

FAQ
