Production Description
PET packing strip, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.

• Choice of single or twin screw extruder.

• Production can use 100% recycled material to obtain a high add value commodity like strapping band.

• PLC manages automatically the extruder's working parameters in according with the running condition;material treatment
,extrusion,stretching,annealing and taking up units are all synced with the PLC.

• All components are controlled and monitored through PLC.

• PET or PP straps can be produced with the same technology,to change line set-up from one to the other only take in few minutes.

• High-advanced ABA co-extrusion technology,not only improve strap's tensile strength but also help the peel strength after welding.

• Double column 4 positioned filter chambers,100% full automatic self-cleaning screen changer,working non-stop during
screen changing,it ensures the straps quality is not affected throughout the production.

• Choice of ordering one,two,four,six and eight straps production line.

• Choice of either servo or torque motor for winding machine.

 Finished product features:

PET strap is an alternative to steel strapping, polypropylene strapping material such as new environmentally friendly
packaging materials, mainly used for all kinds of Strapping, such as pallets, cartons, boxes, plastic boxes and other
types of bundled packaging. It also can be used for direct binding, for example: cotton, steel, timber and other packaging.
Now it widely used in cotton, steel, paper, chemical fiber, electronics, food, timber, building materials, packaging and other industries area.

Main features are as follows:

(1)Safety and environmental protection:safe for use, not easy to hurt, according with EU environmental directives, for example ROSH.

(2)Low cost:It is the most cost-effective in new environmentally friendly packaging materials products.

(3)Easy to use:Suitable for fully automatic balers, manual balers and other packaging machinery quickly and convenient to use.

(4)Excellent toughness: Between -50 ~ 100 ºC temperature, it is fully capable of normal use, and maintains excellent flexibility.

(5)Look beautiful: Finish bundled items look beautiful, does not pollute the items, never rust.

(6)Very good strength: Can provide up to 470 MPA tensile strength to protect the safety of Strapping.

 Production line introduction:

PET strapping extrusion line : PET strap, also known as plastic steel band, which is used in place of steel on the world of a
new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and
a substantial decline, have been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln
industry, screw industry, tobacco industry, electronics, textiles and wood, etc.; is replaced by a new high-strength steel strapping,
is the world's most widely used for steel products.

For users to save the cost of equipment purchases, especially on the initial investment of users, a large new R & D design light
(economic type) PET packing belt production equipment, can achieve single one, a two belt production, production of up to 150kg/h.

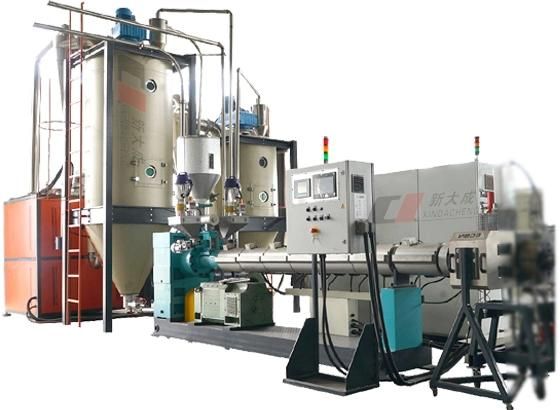

The raw material processing and extrusion system:

High efficiency pre crystallization and drying system, the equipment can be used 100% bottles of recycled

 materials, the production of high value-added packaging belt. Special design of PET special screw, single and

 double screw extruder can be used to choose:

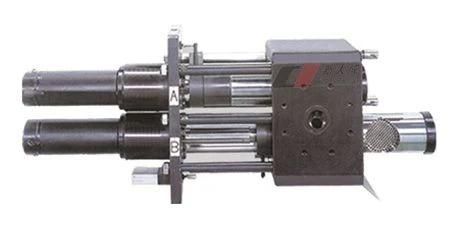

Double column exhaust type net changing device:

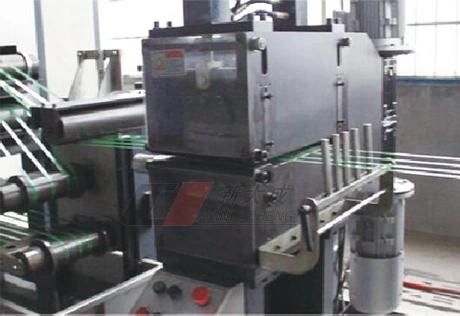

Embossing machine:

The hydraulic control can be set according to user requirements, embossing design, embossed with the

 synchronization control system, precise adjustment on the position of embossing roll and embossing

 strength.

heat setting:

Special setting technology, to ensure that the rapid setting of belt products, to eliminate the back of the PET

 belt to remove the internal stress, to ensure that the belt size accuracy and quality.

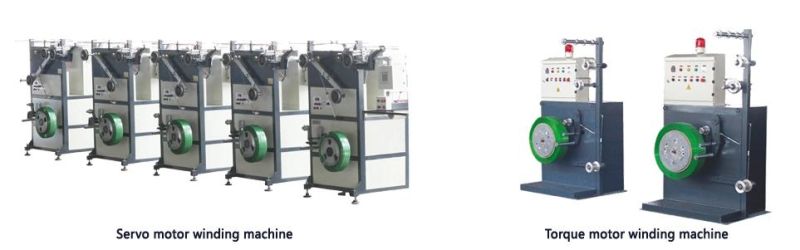

Servo winding machine and torque motor winding machine can choose:

    Qingdao Xindacheng Plastic Machinery Co., Ltd  The company mainly engages in research, development,
design, manufacture and sales service of new type plastic machinery
:HDPE/LDPE/PVC/PE/PPR pipe production line .high speed flat drip irrigation pipe production line .
round drip irrigation pipe making machine , PET/PP strap extrusion machine.krah pipe making machinery .PET sheet extrusion line polyster fiber strap production line .PVC layflat pipe production line . is able to provide "Turn-key project" of complete set
of production line for many plastic product. It owns powerful technology strength, gathers professional scientific and
research talents in top grade macromolecule material national wide, polymer processing, industrial automatization and
marketing.
Oriented by human, Xindacheng considers that the innovation and credit is the most important. It will offer first-class
product and considerate service to help you in accomplishing great business and cooperate with together to create
new era in plastic machinery industry.Xindacheng always considers that customers' interest is the first important. Over
decades, Xindacheng's product spreads all over the country and exported to more than 40 countries and regions such as,
U.S. Italy, Canada, South Korea, Japan, Russia, Ukraine, Czech, Turkey, Mexico, Saudi Arabia, Egypt, Indonesia,
Singapore, Taiwan, HK, Malaysia, and wins customers' reputations.Company board chairman and staff warmly welcome
friends from all circles to visit us.
