• Model NO.：SJSZ180,330
• Assembly Structure：Integral Type Extruder
• Screw：Twin-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Voltage：220-415V , 50-60Hz 3 Phase
• Power：485-750kw Per Line
• Production Line Layout：60m (L) * 5m (W) * 8m (H)
• Calender：Five Roller
• Deliver Time：45 Days
• Plank Thickness：2-9mm
• T-Die：1050,1350
• Online Embossing：Better Than 95%
• Capacity：100t,24h
• Mian Motor：Ie3 Siemens and Weg
• Transport Package：PE Wrapping Film, Fumigating Wooden Cases.
• Specification：CE, SGS, UL, TUV, CSA, ISO
• Trademark：BOYU
• Origin：Wuxi, Jiangsu, China
• HS Code：8477209000
• Production Capacity：120 Sets Per Year

Basic Info.

Model NO. SJSZ180/330 Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Voltage 220-415V / 50-60Hz 3 Phase Power 485-750kw Per Line Production Line Layout 60m (L) * 5m (W) * 8m (H) Calender Five Roller Deliver Time 45 Days Plank Thickness 2-9mm T-Die 1050/1350 Online Embossing Better Than 95% Capacity 100t/24h Mian Motor Ie3 Siemens and Weg Transport Package PE Wrapping Film, Fumigating Wooden Cases. Specification CE, SGS, UL, TUV, CSA, ISO Trademark BOYU Origin Wuxi, Jiangsu, China HS Code 8477209000 Production Capacity 120 Sets Per Year

Product Description

The launch of a Innovation
Proven technology with a new product concept and an attractive price-performance ratio

As SPC flooring equipment inventor, we Boyu Extruder are always keeping moving on new research and development. At the beginning of 2021, we have produced the new super output performance extruder SJSZ180, and firstly provided 6 sets to our good partnership customer. After several months successful operation, we now are in great confidence to launch these new productivity-enhancing to all of our customers and help them enjoy more BENEFITS.

• SAVE PLANT SPACE
• SAVE LABOUR COST
• SAVE ENERGY CHARGE
• SAVE SCREW COST

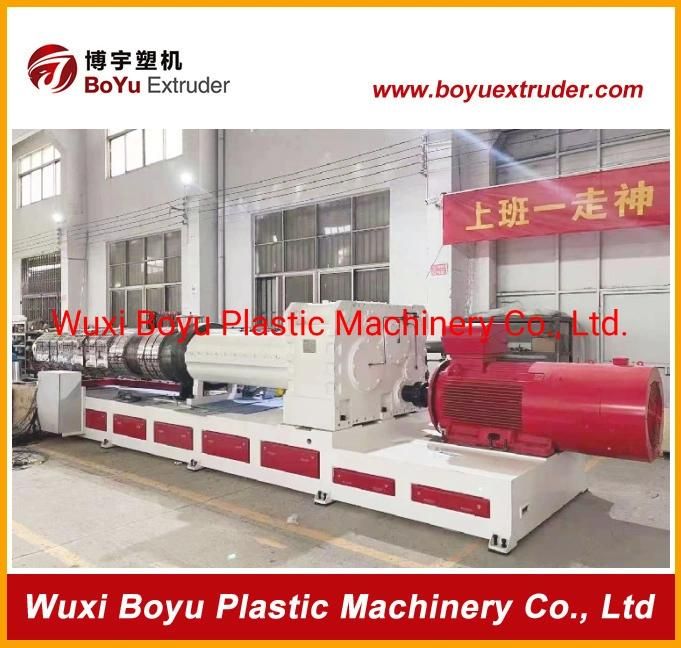

I. SJ180 Conical Double-Screw Extruder Spc Flooring Production Line  Extruder Model

Extruder Model	Capacity/24H	Capacity/H	Linear Speed	Power
SJSZ-180	80-100T	3300-4000KG	5-9m/min	400KW

 II. SJ180 Conical Double-Screw Extruder Spc Flooring Production Line  Extruder Model Design parameters

No.	Items	Data
01	Operation Conditions	380V/3 phases/50Hz, DC24V. (customize)
02	Raw Material	PVC powder, calcium carbonate, stabilizer, lubricant, small materials
03	Main material proportion	PVC: CACO3= 1:3
04	Product specifications	Width:1050/1350mm, Thickness:2-9mm
05	Machine Fabrication Certificate	CE/UL/SGS/CSA
06	Electric components certificate	CE/UL/SGS/CSA

III. SJ180 Conical Double-Screw Extruder Spc Flooring Production Line  Extruder Model Equipment List and layou

Extruder → T-die → Five Roller Calender → Oil temperature controller → Traction Machine → Cutting Machine → Automatic Flipper & Stacker



IV. SJ180 Conical Double-Screw Extruder Spc Flooring Production Line  Extruder Model  Patents Certificates

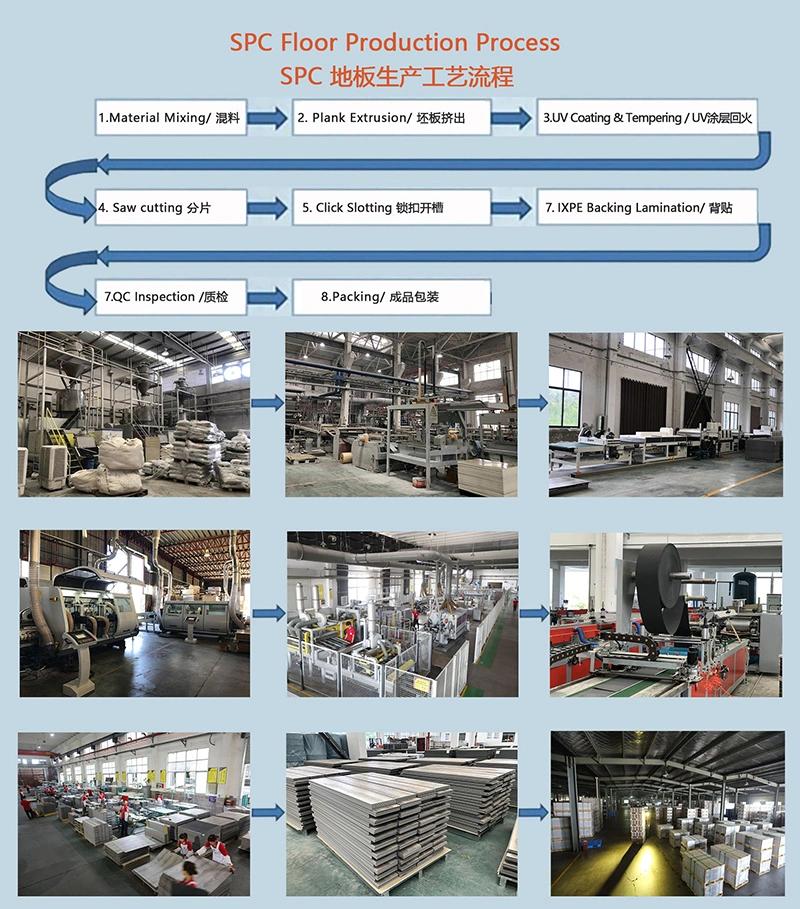

V. SJ180 Conical Double-Screw Extruder Spc Flooring Production Line  Extruder Model  Whole Production Flow

Material mixing → Extruder → Calender→ Cut-to-length →Stacking →UV coating →Saw cutting →
Slick slotting →Backing limitation →QC inspection → Packing

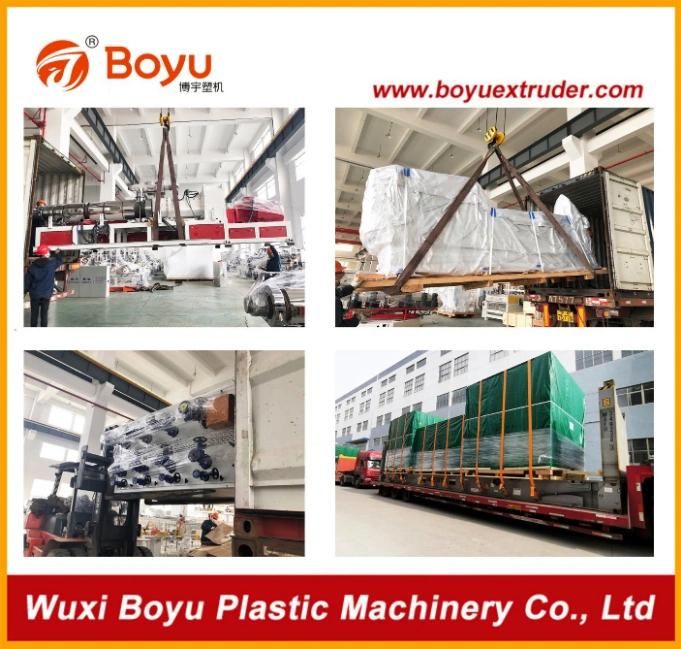

VI. Shipping
VII.Boyu Company Profile
VIII. Advantages of BOYU Production Machine Line



IX. BOYU Services

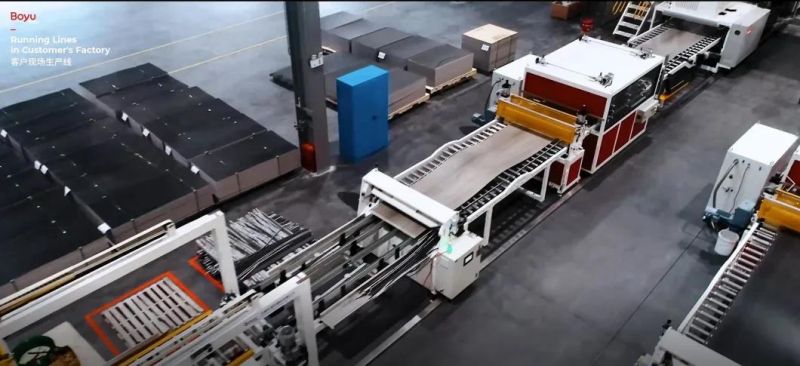

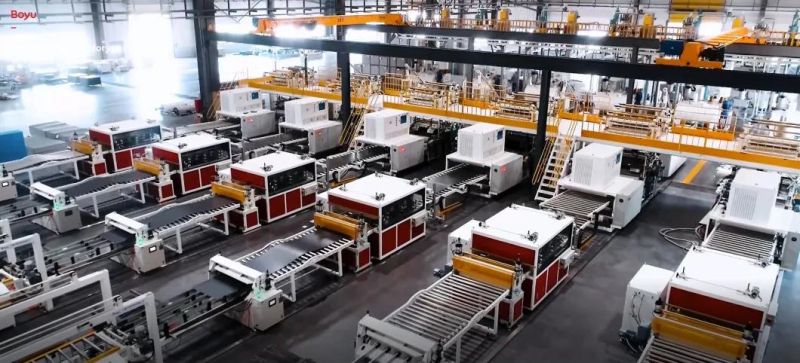

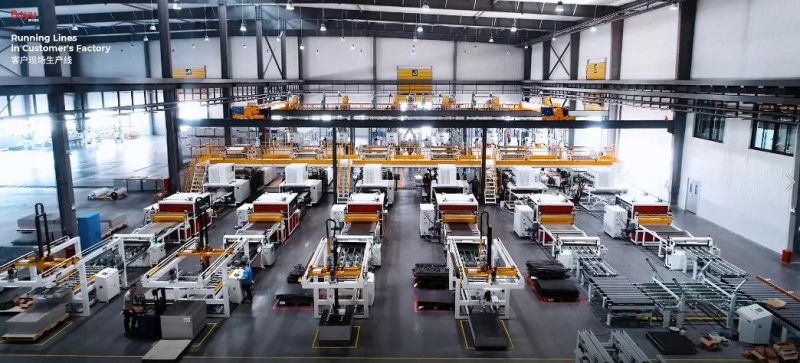

X. Project Case
