• Model NO.：XDC
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Weight：20t
• Name：Pet Extrusion Band Line
• Transport Package：WOODEN
• Specification：CE; ISO9000: 2010
• Trademark：XDC
• Origin：QINGDAO
• Production Capacity：20sets,Year

Basic Info.

Model NO. XDC Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Weight 20t Name Pet Extrusion Band Line Transport Package WOODEN Specification CE; ISO9000: 2010 Trademark XDC Origin QINGDAO Production Capacity 20sets/Year

Product Description

Pet Extrusion Band Line
Characteristic:
Choice of single or twin screw extruder.
Production can use 100% recycled material to obtain a high add value commodity like strapping band.
PLC manages automatically the extruder's working parameters in according with the running condition; Material treatment, extrusion, stretching, annealing and taking up units are all synced with the PLC.
All components are controlled and monitored through PLC.
PET or PP straps can be produced with the same technology, to change line set-up from one to the other only take in few minutes.
High-advanced ABA co-extrusion technology, not only improve strap's tensile strength but also help the peel strength after welding.
Double column 4 positioned filter chambers, 100% full automatic self-cleaning screen changer, working non-stop during screen changing, it ensures the straps quality is not affected throughout the production.
Choice of ordering one, two, four, six and eight straps production line.
Choice of either servo or torque motor for winding machine.


PET strapping band production line consists:
1. SHR-1500 Crystallizing and Drying and I. V increasing unit
2. Twin screw extruder
3. Screen changer
4. Gear pump
5. Mould
6. Water cooling tank
7. Pre-heating unit No. 1
8. Stretching oven
9. Stretching unit No. 1
10. Stretching unit No. 2
11. Embossing unit
12. Fixing unit
13.3-roller hauling off

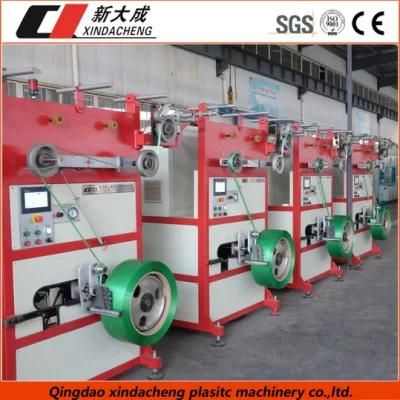

14. Winder

Strap width	9-32mm
Production speed	120m/min
Stretching ratio	4-6
Max.output	200-600kg/h
