Product description:

The unit is commonly known as krah pipe in China, and it takes high-density polyethylene (HDPE) resins as main material by hot winding molding process. It is winding structural wall pipe B with strong anti-pressure capability, and supported by polypropylene (PP) single wall corrugation pipe. The pipe has smooth surfaces inside and circular reinforced structure outside, and it also has high circular rigidity, strong impact resistance and melting sealing joint. It belongs to flexible pipe.

1.High-efficiency special extruder with high output and low energy consumption;

2.Special designed cladding moulds with improving the circular rigidity, easy disassembling and assembling;

3.European or Japanese ignition systems and flame detecting equipment,

automatically detects the flame working state, with high reliability and safety;

4.The demolding system takes platform towed demolding structure, with high demolding efficiency;

5.The production line takes PLC control system, and it can control the entire manufacturing process by Man-machine interface; the operator can finely adjust the production parameters according to the actual production status and the adjusted data can be saved in the control system.

Advantage:

1. Reduce melt pressure and energy consumption.The extruder platform car and winding platform adopt the precise line guide, three-dimensional movement and using servo motor control.

2. Patented technology for four extruders co-extrusion technology.

3. Choose different assignments according to raw material property and color, etc.

4. Improve the pipe strength

5. Cut down the cost

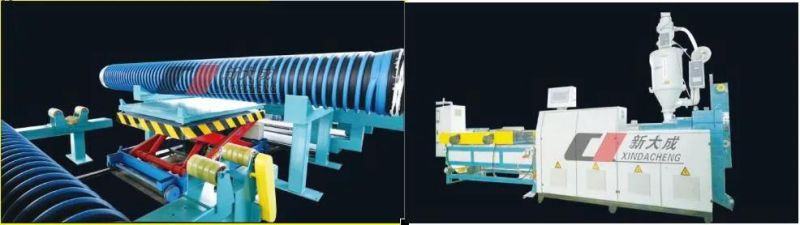

Various parts of the production line:

1. Optimized extruder placement and flow design.

2. Reduce melt pressure and energy consumption.

3. The extruder platform car and winding platform adopt the precise straight line guide, three dimensional and controlled by servo.

4. Patented technology for extruders co-extrusion technology.

5. Choose different assignments according to raw material property and color, etc.

6. Can be adding glass fiber for increasing pipe sriffness and reduce pipe cost.

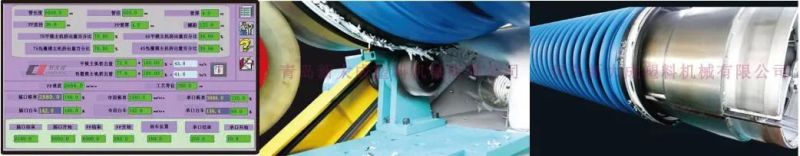

7. Advanced PLC control system:

The whole line can be inergarated into the control system, not only controllde by linkage control but alse by individual control.

Programmatically control and monitor tuhe working condition, automatic correction of equipment operation and peotection.

8. Cooling cutting:

The cooling cutting adopts single-position design for cooling the product.

Trim along the socket.

Pneumatic cantilever control, exact dimension and high efficiency.

9. Demoulding device:

Advanced structural design and high reliability.

High degree of automation.

Effectively protect the mold and reduce the labor intensity.



Auxiliary equipment:

1. Dressing device:

The horizontal walking hydraulic lift will transfer the pipe after demoulding from hosting rack to the dresser and repair the pipe socket to meet the requirements of the

exterrior quality of the pipe. Moreover, the electric fuse is embedded in the socket, Finally inspect and weigh the pipe.

2. PP corrugated pipe production line:

Dual module design;

Unique designed cooling system, high speed of production;

High efficiency.

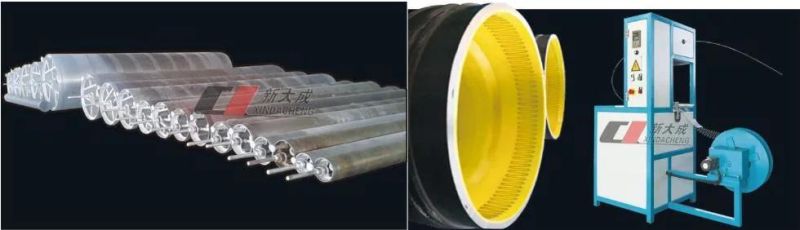

3. Forming mould:

Diameter range: ∮200-4000mm;

Steel structure welded frame, easy operation;

Special steel production, long life and smooth demoulding.

4. Winding system:

Adopt full mechanical mode;

Convenient maintenance, strong reliability and tidy layout.

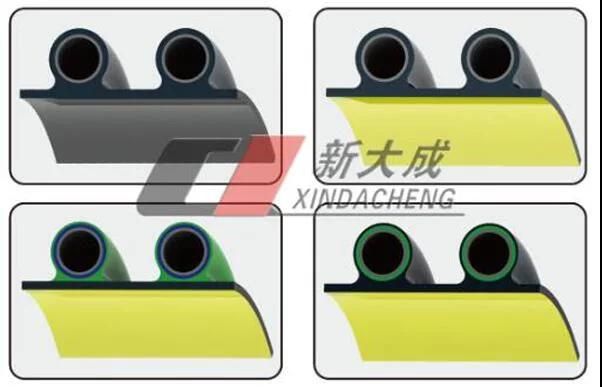

Four co-extrusion schematic:



Pipe wall structure:

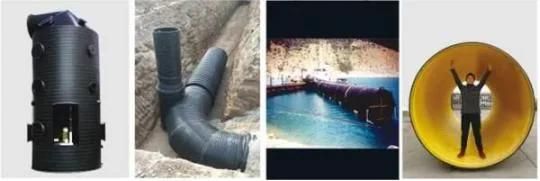

Application Field:

Underground drainage, sewage, aeration and others in municipal construction areas;

Drainage for railway, highway, court and others in road engineering areas;

Nuclear power plants, steel mills, power plants, petrochemical plants, docks, stations;

Tidal flat, saline pool, riverbed, soft foundation expansive soil, earthquake zone and others in adverse environmental areas.

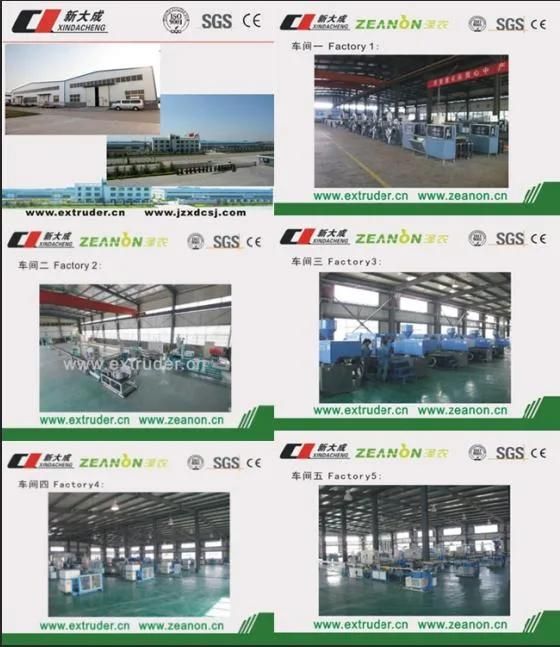

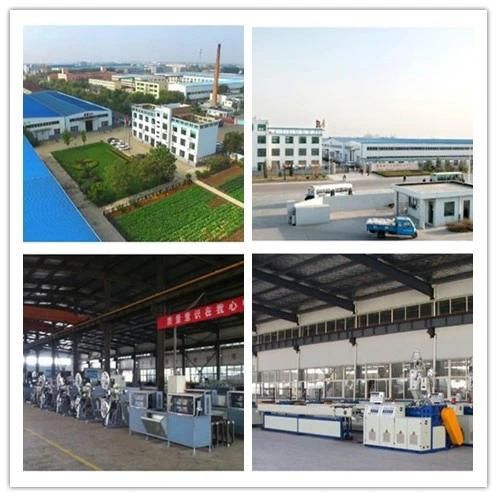

Company informations:

Qingdao Xindacheng Plastic Machinery Co., Ltd., a high-tech join-stock enterprise, integrates scientific research development, technology transfer, production and sale. In addition, it is the unit for accomplishing key promotion projects of science and technology result in construction department.
The company mainly engages in research, development, design, manufacture and sales service of new type plastic machinery, is able to provide "Turn-key project" of complete set of production line for many plastic product. It owns powerful technology strength, gathers professional scientific and research talents in top grade macromolecule material national wide, polymer processing, industrial automatization and marketing. Besides, it keeps closely contact with chemical design research institute and universities, so it is familiar with market trend and is able to transfer the latest science and technology achievements in the fastest speed so that to provide whole set of technology such as the most competitive equipment, technology and relevant technology consultation service.
Oriented by human, Xindacheng considers that the innovation and credit is the most important. It will offer first-class product and considerate service to help you in accomplishing great business and cooperate with together to create new era in plastic machinery industry.
Xindacheng always considers that customers' interest is the first important. Over decades, Xindacheng's product spreads all over the country and exported to more than 40 countries and regions such as, U.S. Italy, Canada, South Korea, Japan, Russia, Ukraine, Czech, Turkey, Mexico, Iran, Saudi Arabia, Egypt, Indonesia, Singapore, Taiwan, HK, Malaysia, and wins customers' reputations.
Company board chairman and staff warmly welcome friends from all circles to visit us.




Why choose XINDACHENG?

• We supply all the technical support, such as engineers, drawings, and instruction manual.
• We send one or more than one engineers to client for installing and adjust all the machinery.
• Buyer also can sent workers to our workshop for learning how to conduct Plastic extruder.
• Supply formula guide service and staple raw material purchase.
• We could supply the Feasibility Analysis Report for the project.
• We could supply turnkey project to you.
• We have good reputation from our customers both at home and abroad.

Certificate:



FAQ:

Q: Where is your factory? How can I get there?
Way 1: you take the train to Gaomi station (Weifang City), we will pick you up. It's only 30 minutes from our factory to Gaomi station.
Mode 2: take a plane to Liuting International Airport (Qingdao), we will meet you, 40 minutes from the factory to the airport.

Q: how is your factory doing in quality control?
A: the electrical part has cooperated with famous foreign brands such as Yaskawa, Siemens, NSK, Delta, Panasonic, etc. the other part comes from domestic high-quality manufacturers and will be tested before delivery.

Q: is there any overseas service?
A: Yes, we have an experienced service team. Each team member has gone abroad many times and has rich experience in machine installation. But the buyer needs to provide air tickets, food, hotel fees, etc.

Q: how does your company provide after-sales service?
A: all machines purchased from our company are provided with a one-year warranty period (except for human errors). We will supply some spare parts for replacement at the time of delivery. In case of damage to machine parts in the warehouse, we will send you free parts by express as soon as possible.
