China High Quality Automatic Extrusion Blow Molding/Moulding Production Line

Zhangjiagang Puxin Machinery Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：HDPE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：PXB70D
  • Extrusion System：Hard Gear Surface Decelerator + Japan Inverter
  • Auto Deflashing：Available
  • Total Weight：5t
  • Output(Dry Cycle)：800 *2 PC,Hr
  • Die Head Option：Single, Double, Tri-Head, Tetra-Head
  • Transparent Line：Available
  • Production Usage：Bottle, Toy, etc
  • Multi-Layer：Available
  • Multi-Color：Available
  • Material：PE, PP, PVC, ABS...
  • Transport Package：Film Packing with Wooden Bottom
  • Specification：Max capacity 5L
  • Trademark：Puxin
  • Origin：Suzhou
  • HS Code：847730100

Description

SpecificationsMaterial  PE, PP, PVC, PA...Max container capacityL5Number of dieSet1, 2, 3, 4Output(dry cycle)PC/hr800X2Machine Dimension(LxWxH)M3.4X2.2X2.5Total weightT5.0Clamping UnitClamping forceKN68Platen opening strokemm150-500Platen sizemm338X380Max mould size(WxH)mm338X350Mould thicknessmm155-300PowerMax driveKW33Total powerKW41Fan power for screwKW0.25Air pressureMPa0.7Air consumptionM3/min0.9Average energy consumptionKW23Extruder unitScrew diametermm70Screw L/D ratioL/D24Melting capacityKg/hr80Number of heating zoneZone3Extruder heating powerKW14.2Extruder driving powerKW22DieNumber of heating zoneZone3Power of die heatingKW5.7Max die-pin diametermm135Center distance of double diemm160Center distance of tri-diemm110Center distance of tetra-diemm85

China High Quality Automatic Extrusion Blow Molding/Moulding Production Line
Delivery Time:
- No later than 40 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

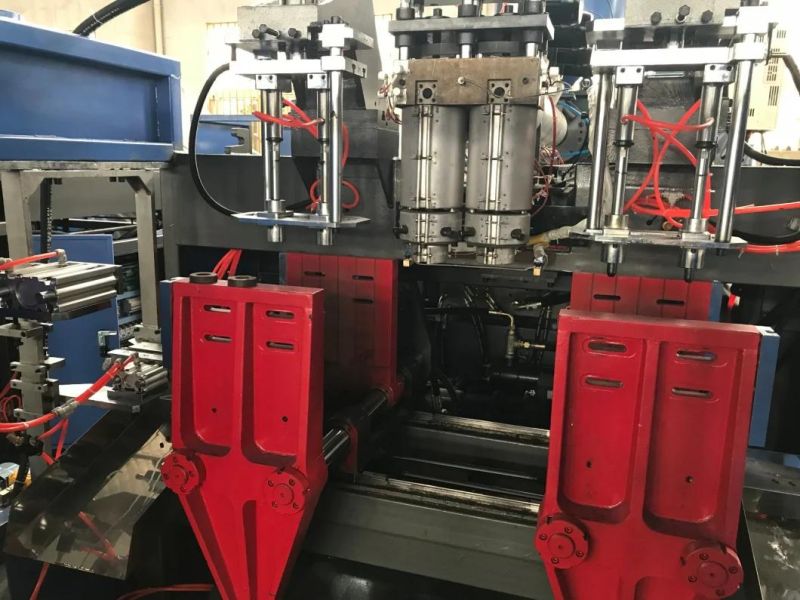

China High Quality Automatic Extrusion Blow Molding/Moulding Production Line

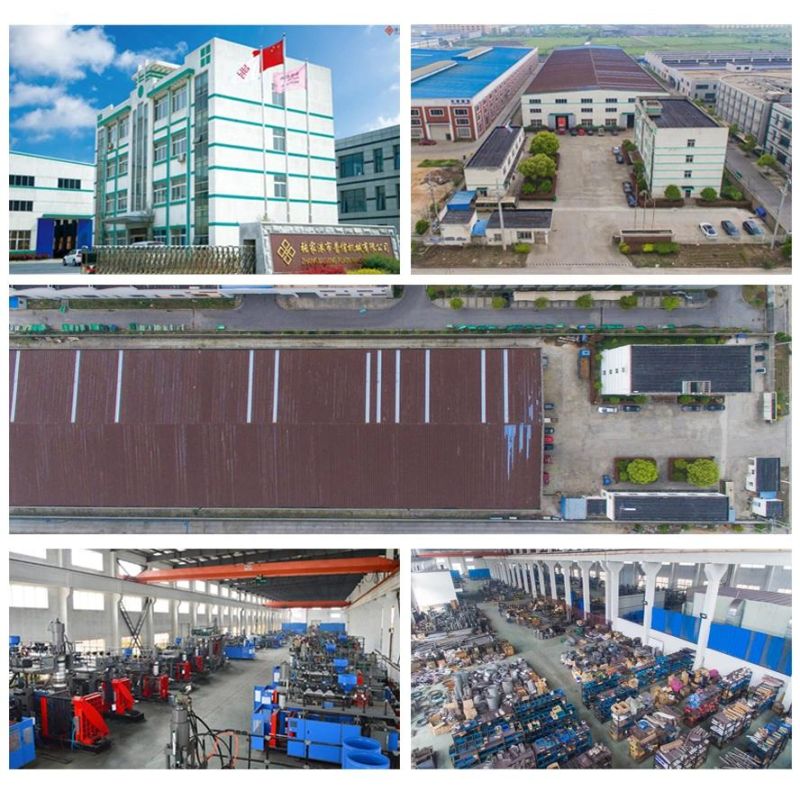

OUR FACTORY:
China High Quality Automatic Extrusion Blow Molding/Moulding Production Line
China High Quality Automatic Extrusion Blow Molding/Moulding Production Line
