• Model NO.：PS-900
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008
• Capacity：400-1300(Kgs,Hr)
• Outlet：150*300mm
• Feeding Hopper：400-1200mm
• Motor Power (Kw)：22-55
• Name：Plastic Crushing Machine
• Transport Package：Plastic Film
• Specification：1620*1380*2320
• Trademark：QiangYe
• Origin：China
• HS Code：8479820090
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. PS-900 Knife Roll Solid Knife Roller Automation Automatic Computerized Non-Computerized Certification CE, ISO9001:2008 Capacity 400-1300(Kgs/Hr) Outlet 150*300mm Feeding Hopper 400-1200mm Motor Power (Kw) 22-55 Name Plastic Crushing Machine Transport Package Plastic Film Specification 1620*1380*2320 Trademark QiangYe Origin China HS Code 8479820090 Production Capacity 100 Sets/Year

Product Description

Applications:
Specialized in crushing all kinds of plastic objects such as soft, hard, thick, thin, long and short (like packing belt, lump material, plastic cement,plastic molding leftover, flake materials, rubber, dialysate tube, plastic steel)etc.


Main Features:
1.Strong and durable steel welding base, stainless steel feeding hopper and stainless steel plastic crusher can be optioned.
2.Thick and high precicion shaft can run smoothly  to prolong its lifetime.
3.Imported chrome steel double-sided edge cutter, durable with sharp and adjustable blade.
4.Optimal design knife plate,spirally distributed claw plate can disperse the strength and reduce the impact force when crushing materials, and make the claw knife's crushing force greater.
5.Its detachable design is easy to clean and maintenace, low noise with two layers structure which has sound insulation materials.
6.Equipped with motor overload and power supply protection system to ensure safe operation.
7.High efficiency, low energy consumption and lower production costs,thus improving production efficiency.
8.Reducing waste materials accumulation and the cost of transportation and storage.
9.Can be used for dry and wet materials. The size of crushed plastics can be changed by different screen mesh.

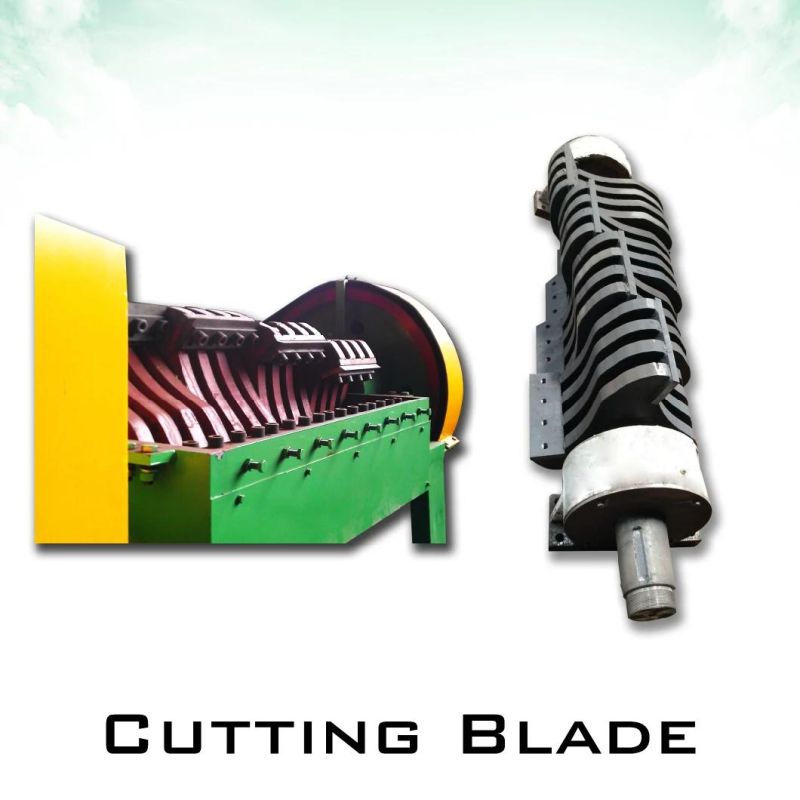

Knife type and its applications
Claw type knife:
Very easy and convenient to operate and replace knife. optimal design knife palte and claw type knife can disperse the strength when crushing the materials so as to make the each knife cutting force greater and effectively improving knife tool cutting tool and reduces knife tool wear.it is applicable for crushing thick material, hard lump materials and so on.
Applications:
Except soft materials,the machine can be specialized in all kinds of hard plastics such as ABS, PMMA, POM, PU nylon, PU thick material, hard plastic molding material, hard waste materials, ox horn, fiber material, wood, ceramic, plastic drum, waste household appliance, plastic shell, hard shoe last material and waste sole etc.

Flake type knife:
The blade structure is between claw type knife and flat type knife.reasonable designed knife type with heat-treated knife base look nicer and elegant and to make the product granulation uniformity.It is applicable for crushing flake materials, pipes, profiles, plates and packaging materials etc plastic products and molding materials .
Applications:
Specialized in crushing all kind of PP, PE, PET, PVC flakes, PU soft material, mineral water bottle, film, woven bag, leather shoe sole, rubber tube, plastic shell, computer main board, plastic leftover material and so on.

Butterfly type knife (Flat knife):
Knife blades are like butterfly wings and wasy to replace.it is applicable for crushing large lump thin materials and thin products with wide structure,also can improve crushing efficiency.
Applications:
Except hard plastic and soft gummed paper, the machine can be specialized in all kinds of plastic such as plastic bottles, paper scraps, PE films, blow molding plastics and so on.


V type knife:
Unique designed string arc knife blades are with stronger cutting force and easier replacement,faster cleaning materials and convenient maintenance.
Applications:
Wide Useful V type knife crusher can crush all kind of soft plastics such as polypropylene hollow board,PE,Packing belt and leather and so on except hard plastic.

Model	Rotor Size ΦD*L(mm)	Capacity (KGS/hr)	Outlet ΦD*H (mm)	Feeding Hopper L*W(mm)	Motor Power (KW)	Installation Size L*W*H(mm)	Overall Size L*W*H(mm)	Weight KGS
PS-600	Φ420*600	400-700	Φ150*300	400-600	22	1450*1015*1920	1620*1380*2320	1800
PS-900	Φ540*900	700-1000	Φ150*300	600-900	37	1915*1370*2690	2128*1790*3050	3500
PS-1200	Φ540*1200	1000-1300	Φ150*300	600-1200	55	2230*1370*2690	2430*1790*3050	5600

Remarks: specification is subject to change without any notice.
