1/One Cavity 5L Pet Bottle Automatic Blow/Blowing Molding Machine
Taizhou Doria Plastic Equipments Co., Ltd.- Warranty：1year
- Type：Stretch Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Computerized
Base Info
- Certification：CE
- Model NO.：D-R601
- Blowing：Machine
- Pet：Water Bottle
- Automatic：1cavity
- Application：Household
- Transport Package：Wooden Case
- Specification：CE
- Trademark：D-R
- Origin：Huangyan Taizhou, Zhejiang China
- HS Code：8477300000
- Production Capacity：2.5L, 1500PCS,Hour, 0.5L, 2000PCS,Hour.
Description
machine specificationmachine size 5.6x2.1.x2.1(m) auto-loader size 1.0*1.5*2(m) machine weight 5.5T
3, specification of D-R601 blower:
3.1, working voltage of blower: 3P 380V/60HZ. (Voltage could be adjusted according to the customer's demand)
Rated power: 20KW; actual power: 10.5KW;
3.2, clamping force: 300KN;
3.3, mould opening stroke: 180-250mm (adjustive);
3.4, maximum size of mould plate: L400*W660mm;
4. AUXILIARY EQUIPMENT:
4.1,Air dryer(Model:OMK-1HNF);
4.1.1,dimension:900*600*1100mm;
4.1.2, air flow:1.6N /min;
4.1.3,working pressure:3.0MPa;
4.1.4,inlet temperature:80ºC;
4.1.5dew point temperature:2-10ºC;
4.1.6,compressor power:0.6KW;
4.1.7,refrigerant:R22;
4.1.8 Dia of connecting pipe: ZG3/4;
NOTE:when the device is in max use,the temp of inlet cooling water temp is 8-12ºC,outlet cooling water temp is 18ºC more or less;
4.2, High pressure air compressor(VH-1.2/3.0).
4.2.1,packing size:1600*850*1000mm;
Size:1550*800*900mm;
4.2.2,Motor power:15KW;
4.2..3,weight:320KG;
4.2.4,air flow:1.2M3/min;
4.2.5,Max air pressure:3.0MPa;
4.3, Low pressure air compressor(V-1.0/10)
4.3.1,packing size:1500*730*1200mm;
size:1465*680*1130mm;
4.3.2,Motor power:7.5KW;
4.3.3,weight:357KG;
4.3.4,Air flow:1.0M3/min;
4.3.5,Max air pressure:1.0MPa;
4.4, T/C grade air filter
4.4.1,rated air flow: 2Nm3/min;
4.4.2,Max working pressure: 3.0MPa;
4.4.3, inlet air temp≤50ºC;
4.4.4, filter precision of T filter≤3μm;
Filter precision of C filter≤1μm;
4.4.5,weight: 2.3KG;
4.5, 5HP water-cooled water chiller:
4.5.1,dimension:910*520*900mm;
4.5.2,compressor capacity:3.15KW;
4.5.3,weight:130KG;
4.5.4,refrigerating capacity:12.4KW;
4.5.5,Pump capacity:0.5HP;
4.5.6,Cold water flow:2.6M3/H;
4.5.7,Voltage: 380V-415V/3P /50HZ;
4.5.8,refrigerator medium: R22

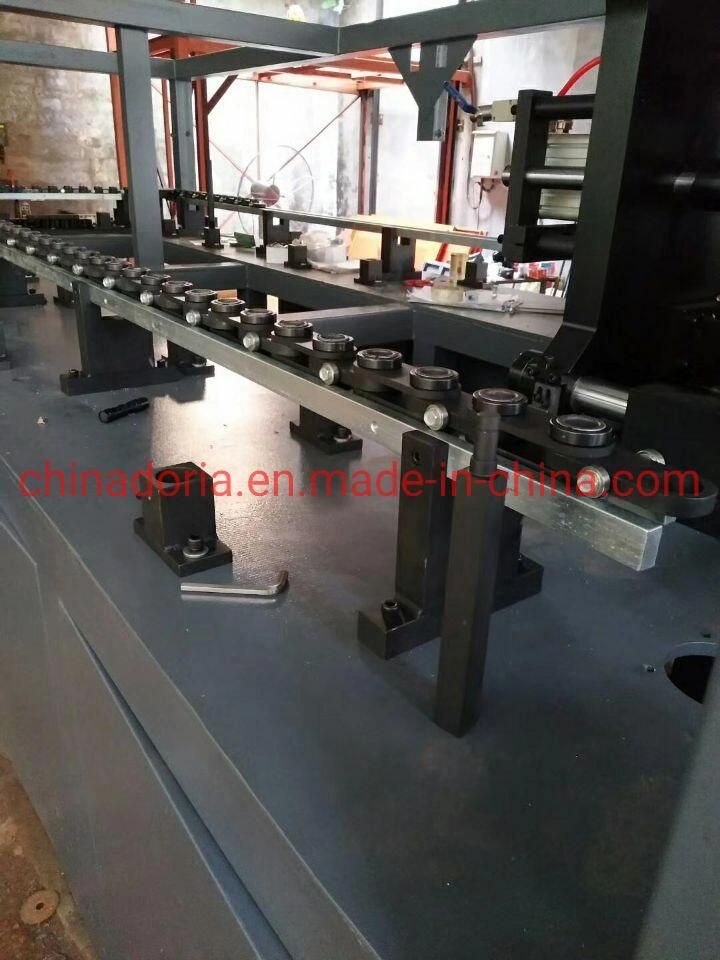

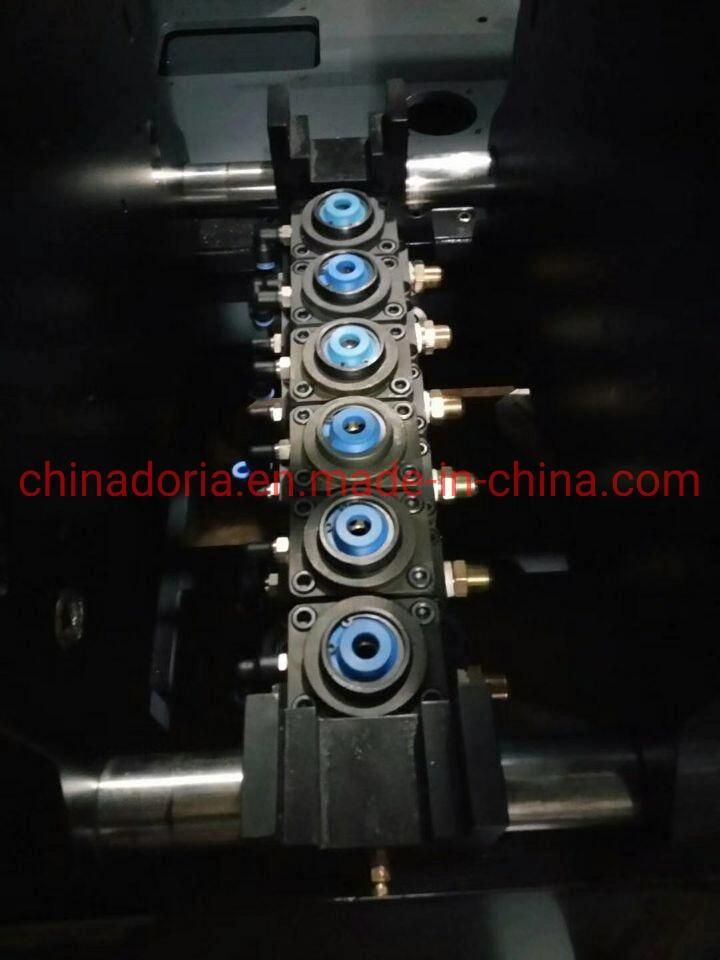

5. Pictures of D-R601
4. Frequently Asked Questions:
Q. What are your company's main products?
A: Our company is an experienced manufacturer in automatic blow moulding machines, semi-automatic blow moulding machine, PET preform, injection machine, injection molds and correlative plastics products.
Q. What's your payment term?
A: 40% T/T in deposit,60%T/T before shipment..
Q: What is the delivery of machine?
A: About 45days.
Q: What is the warranty of the machine?
A: One year.
Q: What is the packaging of the machine?
A: Wooden case.
Q: How to test the blow moulding machine when it is finished?
A: 1.You could come to our factory to check the testing, our engineers will show detail operation about machine to you.
2. If you are too busy to coming, we could send testing video to you.

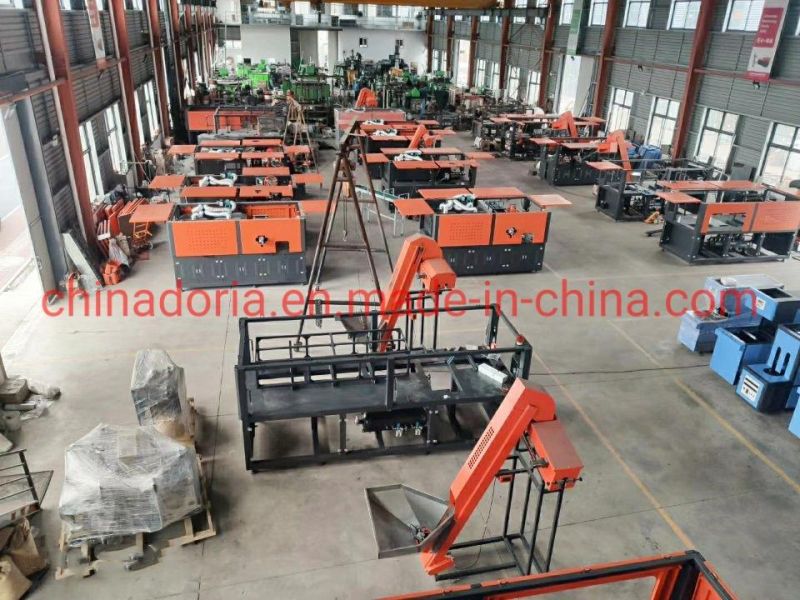

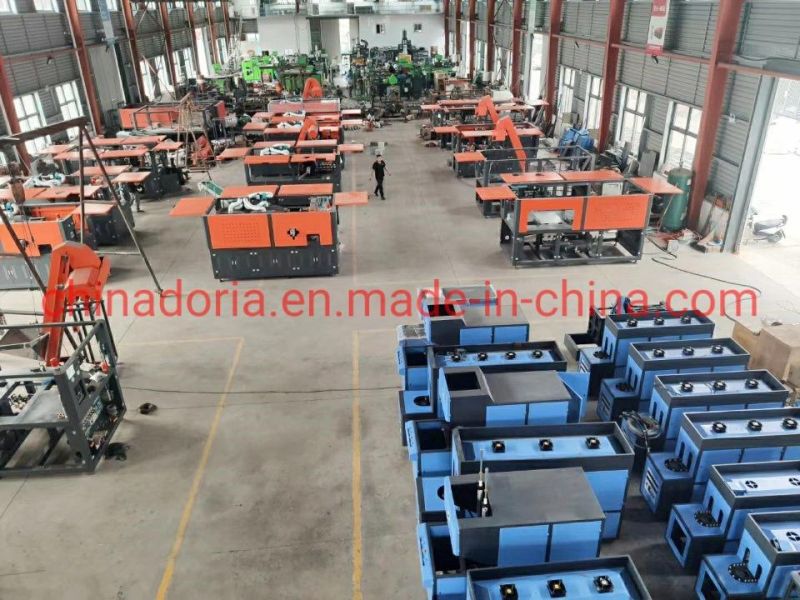

5. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
6. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
