Cup Tilt-Mold Machine Equipment

LX Plastic Machinery Co., Ltd.
  • Certification：CE
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Forming Area：720mm*430mm Max.,700*360mm Max.
  • Forming Depth：180-200mm Max.

Base Info

  • Model NO.：LX700T-E193
  • Dry Run Speed：40cycles,Min Max.
  • Film Thickness：0.2-2.5mm
  • Sheet Width：700mm Max.
  • Suitable Material：PP PS Pet PVC
  • Air Pressure：0.7MPa
  • Production Range：Cup,Lid,Container, Clamshell and Tray
  • Automaticity：Forming, Cutting, Stacking and Conveying
  • Transport Package：Plastic Film with Anti-Rust Oil
  • Specification：8500*2600*2200mm
  • Trademark：LXPLASTIC
  • Origin：China
  • HS Code：8477409000
  • Production Capacity：20sets,Year

Description

Useful Optional Items for Tilt-mold thermoforming machine

In-line Grinder with cyclone

Traveling crane for easy tool-change

Auto Cup packer

PP Pre-heater

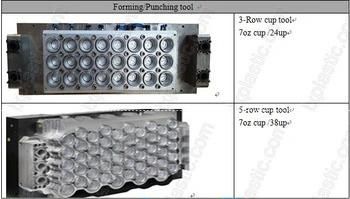

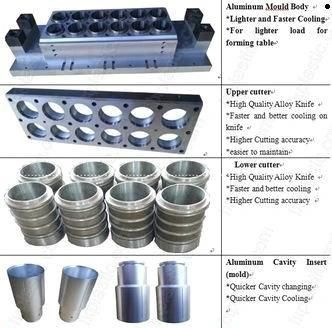

                              Tooling for  cup tilt-mold machine                       Cup Tilt-Mold Machine EquipmentCup Tilt-Mold Machine Equipment Cup Tilt-Mold Machine Equipment Cup Tilt-Mold Machine Equipment
