• Model NO.：ZIP-45
• Engagement System：Intermeshing
• Screw Channel Structure：Non Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：wooden case
• Specification：standard process
• Trademark：Fangtai
• Origin：ruian, zhejiang, china
• Production Capacity：1 set, month

Basic Info.

Model NO. ZIP-45 Engagement System Intermeshing Screw Channel Structure Non Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Transport Package wooden case Specification standard process Trademark Fangtai Origin ruian, zhejiang, china Production Capacity 1 set/ month

Product Description

Use:

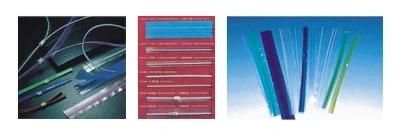

This machine is suitable for LDPE and PP, the zipper strip widely used for packing bag sealing and jointing of food, clothes and textile industrial products.

Performance and Characteristics:

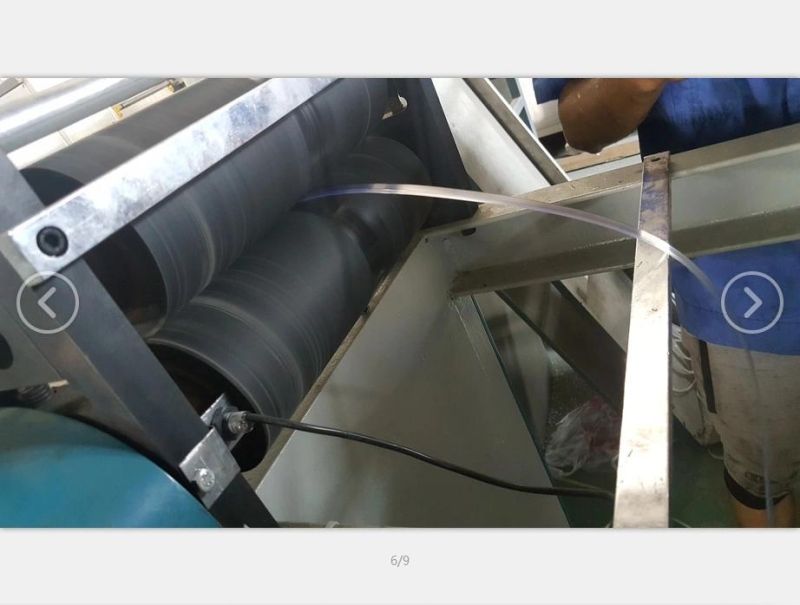

1. Cylinder screws of extruding machine are all treated and processed with optimization with the best hardness and corrosion resistance. 2. Double rolling as rolling equipment adopts torque motor to keep suitable tension. 3. Neat rolling and convenient roll changing.

Model:	ZIP-45
Draw ration of screw	28: 1
Tran sducer motor:	5.5kw
Power of assistant machine	0.75kw
Heater:	10kw
Cooling	5HP
Power:	15kw
Overall dimension(l x w x h)	6800 x 1200 x 1800mm
Voltage:	50HZ-60HZ 380v
Resin applicable:	LDPE-PP
Capacity:	10-50(Cycle/min)
Extrusion widht:	3 -50mm
Thickness of film	0.1 -0.3mm
Film annulus diameter:	Φ 500mm
Diameter Of screw:	Φ 45mm
