Automatic Strech Blow Molding Machine Price

Jiangsu Faygo Union Machinery Co., Ltd.
  • Type：Stretch Blow Molding Machine
  • Raw Material：PET
  • Making Method of Parison：Stretch Blow
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：FG-4
  • Cavity Number：4
  • Hourly Output：7200bottles,Hour(@500ml)
  • Working Power：26kw
  • High Pressure Require：4m3,30bar
  • Machine Control Type：Servo Motor Control
  • Blowing Valve：American Parker
  • Electrical Element：Mistubishi,Siemens
  • Transport Package：Covered by PE Film
  • Specification：FG-4
  • Trademark：Faygo
  • Origin：Jiangsu Zhangjiagang
  • HS Code：84779000
  • Production Capacity：6800-7200bph

Description

TypeFG4Specifications of bottleMould number(piece)4maxi volume (mL)2000maxi height (mm)328maxi diameter (mm)105Square bottle for max diagonal length (mm)115preform SpecificationsSuitable inner bottle neck (mm)20-25preform max length (mm)150Capacity (bottles / hour) at 17 g 500mL7200ElectricityInstall power (kw)51Heating oven total power (kw)46Heating oven actual power consumption (kw)26Voltage / frequency (V / Hz)380v,50hzAllowed voltage fluctuation±10%HP AirPressure(bar)30Capacity(m³/min)4Cooling WaterMold waterpressure(bar)4-6Suitable temperature range (ºC)6-13Flow (L / min)45Oven waterpressure(bar)4-6Suitable temperature range (ºC)6-13Flow (L / min)22Machine Specificationhost machine dimension (m)
length × width × height3.3*1*2.3Weight (Kg)3200

Automatic Strech Blow Molding Machine Price

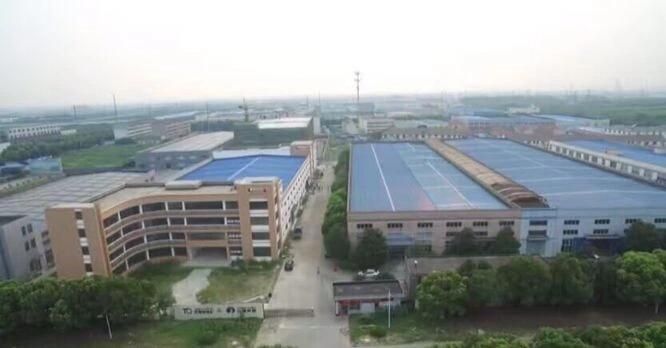

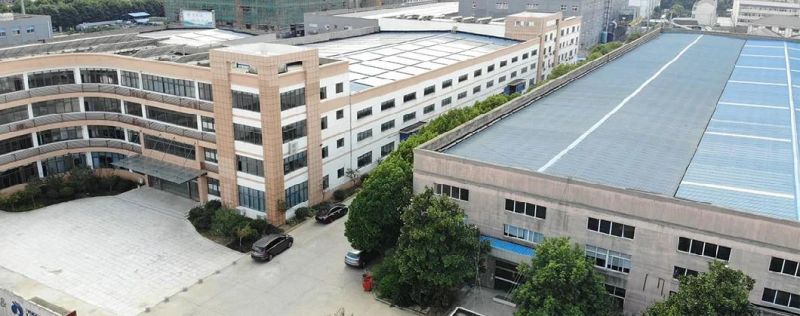

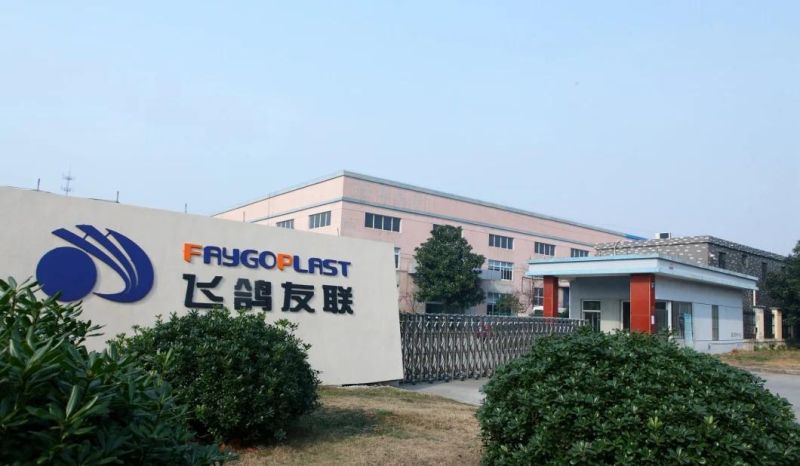

Welcome to visit our factory, in Zhangjiagang city, not far from Shanghai.
