Large Water Bottles/Oil Bottles/Beer Bottle/Jar Bottles Semiautomatic Blow/Blowing ...
TAIZHOU TAISO MOULD CO., LTD.- Type：Stretch Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Non-Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, QS, UL, GMP
Base Info
- Model NO.：TS-10L
- Transport Package：Wooden Case
- Trademark：TAISO
- Origin：China
- HS Code：8477309000
- Production Capacity：50sets,Month
Description
Basic Info.
Model NO. TS-10L Transport Package Wooden Case Trademark TAISO Origin China HS Code 8477309000 Production Capacity 50sets/MonthProduct Description

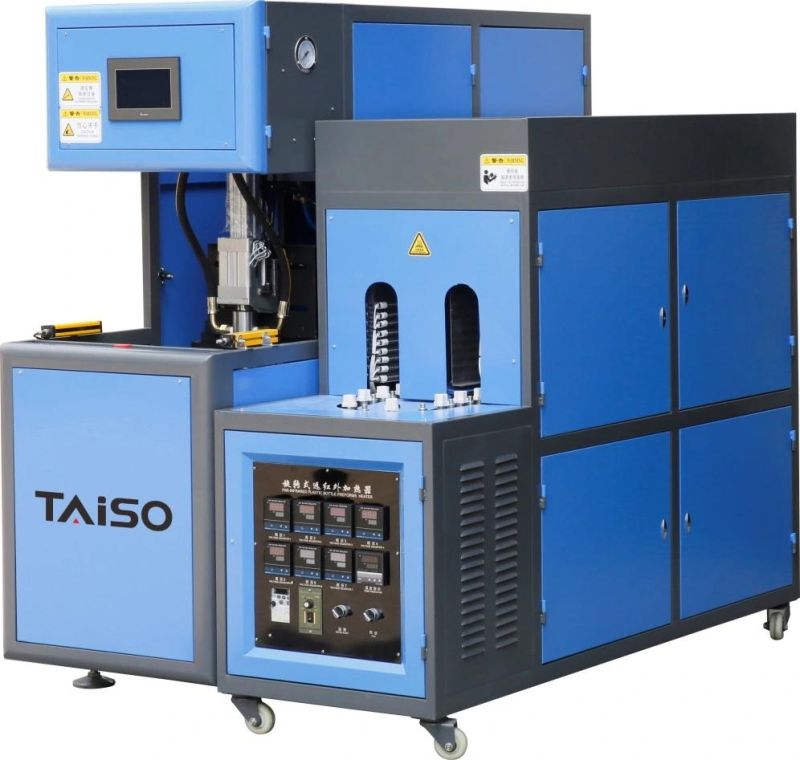

TS-10L Semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely.
Features
1. Produce bottle from 5L to 10L bottles
2. Output capacity up to 250 bottles/hour for 10L using one cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
| Model | TS-10L (1 Blower & 1 Heater) |
| Max. Volume | 10L |
| Output | 250-300BPH |
| Number of Cavities | 1 & 2 Cavity |
| Neck diameter | 18-120mm |
| Max. diameter | 180mm |
| Max. Bottle height | 380mm |
| Mold thickness | 130-330mm |
| Clamping stroke | 260mm |
| Rated power | 25kw |
| Power consumption | 12-15kw |
| Blower size | 1950*650*1700mm |
| Heater size | 1700*600*1350mm |
| Weight | 1200kgs |
