ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)

Zhangjiagang City Xinrong Machinery Co., Ltd.
  • Type：Hard Plastic Crusher
  • Raw Material：ABS
  • Structure：Top Feed
  • Knife Classification：Claw Knife Crusher
  • Knife Roll：Hollow Knife Roller
  • Automation：Automatic

Base Info

  • Model NO.：XRS800
  • Computerized：Computerized
  • Certification：CE
  • Warranty：One Year
  • Shredding Room：800*800 mm
  • Rotor Diameter：400 mm
  • Motor Bran：Simo, Wannan, Siemens, Weg
  • Blade Materials：D2, DC53
  • Delivery Time：20-25 Working Days
  • Bearing：Heavy Duty Bearing
  • PLC Control：Siemens
  • Hydraulic Station：3 Kw
  • Voltage：According to Customer
  • Output：400-1000kg,Hr
  • Screen Size：40-100mm
  • Main Eletrical Equipment：Schneiders
  • Weight：4300 Kg
  • Rotary：65 Rpm
  • Transport Package：Stretch Film,Wooden Pallet
  • Specification：XRS800
  • Trademark：Zinmachine
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：100 Sets Per Year

Description


Model
Motor (kw)
Diameter of rotor
(mm)
Speed
(rpm)
Rotating Knife (pcs)
Fixed Knife (pcs)
Hydraulic Motor power (kw)
Weight (kg)XRS60022Φ280753022.22800XRS70030 or 37Φ2807533233500XRS80045Φ4007556234300XRS100055Φ4007560245300XRS120075Φ500758025.57300XRS150090 0r 110Φ5507512027.5 10000XRS2000132 or 160Φ60075180211 14000Note:The above Technical parameters is only for your consideration, real technical parameters of shredder machine will be different based on shredding different material requirements, please call us for more information before purchasing.

Application Area:
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:

•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;

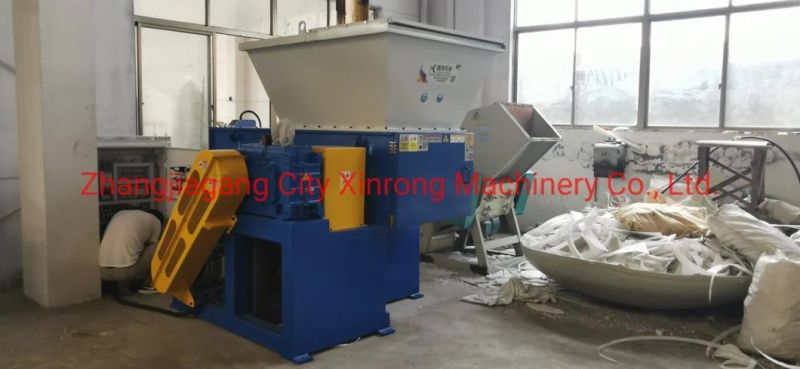

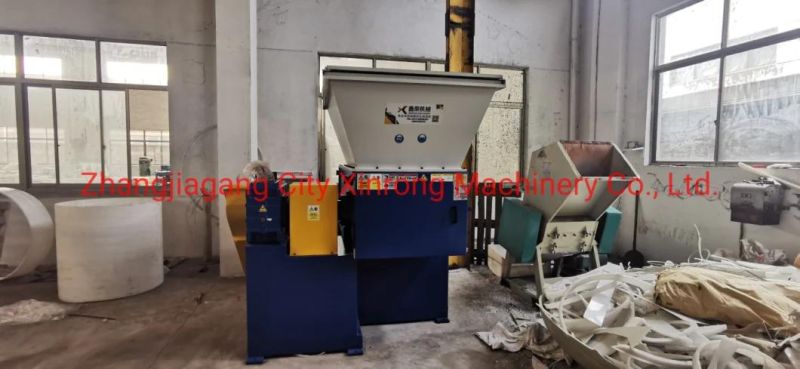

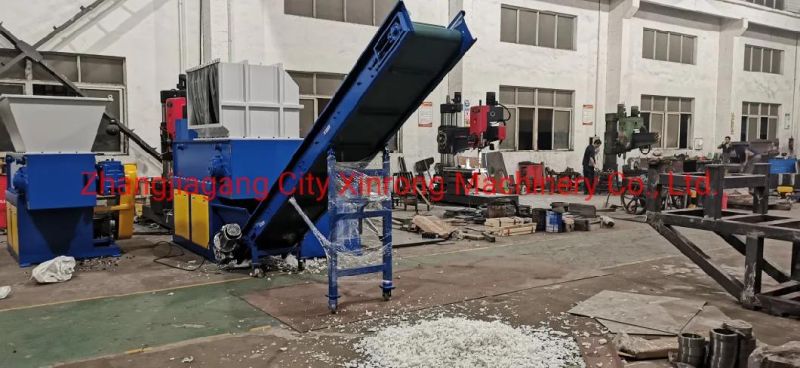

Machine Photos:

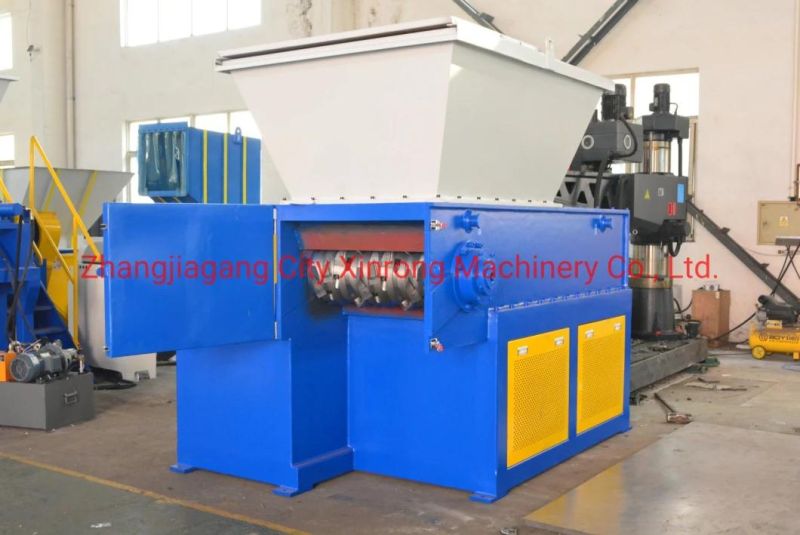

Single Shaft Shredder-XRS800
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)

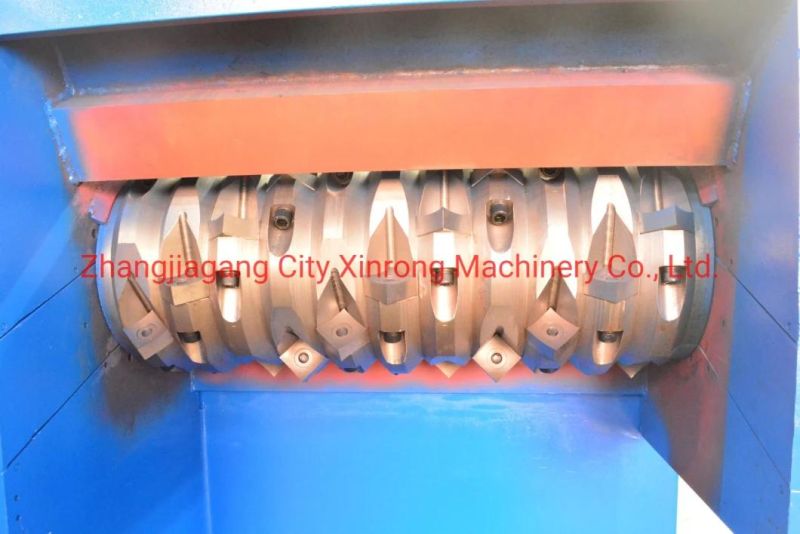

Rotor:
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)

About us:
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)
Shredding effects:
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)

Machine Delivery:
ABS/PA/PC Heavy Duty Single Shaft Shredder (XRS800)

IF YOU WANT TO KNOW MORE DETAILED INFORMATION OF THE MACHINE, PLEASE FEEL FREE TO CONTACT OR EMAIL US.
