Acemien PVC Foam Board Extrusion Line PVC Foam Board Production Line

Jiangsu Acemien Machinery Co., Ltd.
  • Product Type:PVC Board
  • Board Layers:Multilayer
  • Screw No.:Double-screw
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008, UL, QS, GMP

Base Info

  • Model NO.:ACEMIEN
  • Customized:Customized
  • Condition:New
  • Transport Package:Plastic Film Package and Loaded Into The Container
  • Specification:28m*5m*5m
  • Trademark:Acemien
  • Origin:Jiangsu Province
  • HS Code:84772090
  • Production Capacity:1000 Sets,Year

Description

Basic Info.

Model NO. ACEMIEN Customized Customized Condition New Transport Package Plastic Film Package and Loaded Into The Container Specification 28m*5m*5m Trademark Acemien Origin Jiangsu Province HS Code 84772090 Production Capacity 1000 Sets/Year

Product Description

ACEMIEN pvc foam board extrusion line pvc foam board production line
PVC foam board, also known as Chevron board and Andy board, is chemically composed of polyvinyl chloride, so it is also called foamed polyvinyl chloride sheet. Widely used in passenger cars, train car roofs, cabinet core layers, interior decoration panels, building exterior wall panels, interior decorative panels, offices, residential, public space building compartments, commercial decorative frames, clean room panels , ceiling panels, screen printing, computer lettering, advertising signs, display panels, sign board and other industry and chemical anti-corrosion engineering, thermoforming parts, cold storage panels, special cold preservation engineering, environmental protection sheet molds, sports equipment, aquaculture materials Waterproof equipment, water-resistant materials, art materials and various light partitions instead of glass ceilings.
Acemien PVC Foam Board Extrusion Line PVC Foam Board Production Line

ACEMIEN pvc foam board extrusion line pvc foam board production line is made to produce the PVC crusted foamed board, Normal dimensions: 1220×2440mm,915×1830mm ; Thickness:5-25mm.

The raw material is as below: PVC powder ,foamed agent and other Chemical agent
Below is details of the situation of the SJZ80-BF1220 PVC Crusted Foamed Board Extrusion Line.

Warehouse/Workshop Dimension (M*M*M): 30m (Length)×3m(width) × 3m (Height)
Crane: Machine positioning
Temperature & Humidity ≤40ºC & ≤80%,
Power supply & Installation  3-phase, 380 V, 50 Hz
Wire/cables/water hose: Wires/cables: from power supply to control cabinet of this production line
Water hose: supply water to machines and pools;
Cooling Water Without dissolved or suspended minerals as phosphor, sulphur, iron, etc.
Inflow temperature T1: max. 15ºC; Outflow temperature T2: T2=T1+5ºC;
Hardness: 5-8 OdH;
Reflux: without pressure
Lubrication oil: Exxon mobile
Compressor Supply compressed air
Manpower 2-3 personift

Acemien PVC Foam Board Extrusion Line PVC Foam Board Production Line


 ACEMIEN pvc foam board extrusion line pvc foam board production line is including below parts:

Screw loader(for mixer and extruder)    2sets
SJZ 80/156 conical twin-screw extruder    1set
Extrusion mould     1set
Forming mould    1set
Forming table    1set
Cooling bracket    1set
Hauling machine    1set
Edge cutting device    1set
Tracking cutter    1set
Automatic shift machine    1set
Dust collection device    1set
Mould temperature controller
1set
Cooling-water machine
1set
SRL-Z500/1000 Mixer unit(ABB)    1set
PC800 Crusher    1set
MF550 Pulverizer   1set


Acemien PVC Foam Board Extrusion Line PVC Foam Board Production Line
This is the die of the ACEMIEN pvc foam board extrusion line pvc foam board production line .
Flat extrusion mould:
Mould type: clothes rack
Material of die-head: stainless steel
Effective width of mould lip: 1350mm
Adjusting arrange of mould thickness: 8-18mm
surface treatment by chrome plating at thickness: 0.04-0.06mm
Method of heating: oil heating
Method of Installation: flat extrusion install

Acemien PVC Foam Board Extrusion Line PVC Foam Board Production Line

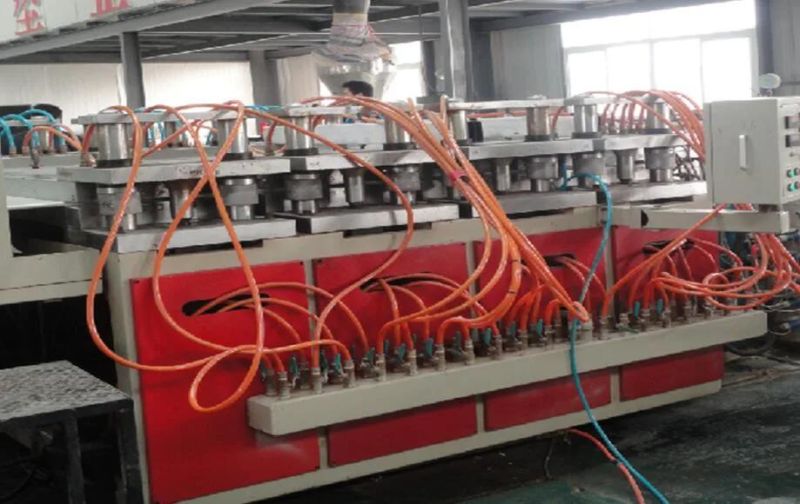

Forming plate:4sets
Width of plate:1350mm
Water cooling
Forming table can be moved by motor, drive motor power is 0.75kw.
Rack use square tube welded, solid and reliable

Acemien PVC Foam Board Extrusion Line PVC Foam Board Production Line

1. Pulling roller is rubber roller, Φ250×1500mm
2. Drive motor:7.5KW
3. Pneumatic compression
4. Frequency conversion motor.
5. ABB inverter control
6. 8 pairs rollers
7.Haul-off speed:0-2.1m/min

Acemien PVC Foam Board Extrusion Line PVC Foam Board Production Line

Cooling roller Φ63×1500mm, Produced by stainless steel tube, rotating flexible producer does not hurt
Cooling bracket can be moved with the forming tale.
Length of cooling bracket:6m

we offer offer high quality
4. After-sales service
4.1 Technical documents
All the symbols on the equipments should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
4.2. Arrangement for inspection, installation and testing work
a. After all machines are delivered to customer's factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
b. ACEMIEN will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer's factory.
c. The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD50 per day for each engineer.
d. Engineer will give free training lessons to labors in buyer's factory.
e. If buyer doesn't request installation and commissioning by Seller's engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.
4.3. Quantity and quality guarantee
a. Quantity/Quality Discrepancy to destination port during transportation:
 In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. Insurance company and shipping company will be responsible for any discrepancy of the goods caused by shipping company and other transportation organization and/or post office.
b. Guarantee period and after-sales services: 13 months since date of bill of lading
 During this guarantee period, ACEMIEN will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, ACEMIEN will provide the buyer spare parts at cost price.
c. Long-term service:
. ACEMIEN will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
4.4. Validity: Three months since quotation date.
