• Model NO.：K7000
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008, SGS
• Drive Mode：Hydraulic
• Clean Mode：Self-Cleaning by Air
• The Ratio of Raw Material：1:1
• Max Working Pressure：25MPa
• Max Output：15kg,Min
• Max Heated Hose Length：90m
• Transport Package：Plywood Case
• Specification：120cm*90cm*155cm
• Trademark：Reanin
• Origin：Shandong
• HS Code：8424899990
• Production Capacity：80 Sets, Month

Basic Info.

Model NO. K7000 Computerized Non-Computerized Certification CE, ISO9001:2008, SGS Drive Mode Hydraulic Clean Mode Self-Cleaning by Air The Ratio of Raw Material 1:1 Max Working Pressure 25MPa Max Output 15kg/Min Max Heated Hose Length 90m Transport Package Plywood Case Specification 120cm*90cm*155cm Trademark Reanin Origin Shandong HS Code 8424899990 Production Capacity 80 Sets/ Month

Product Description

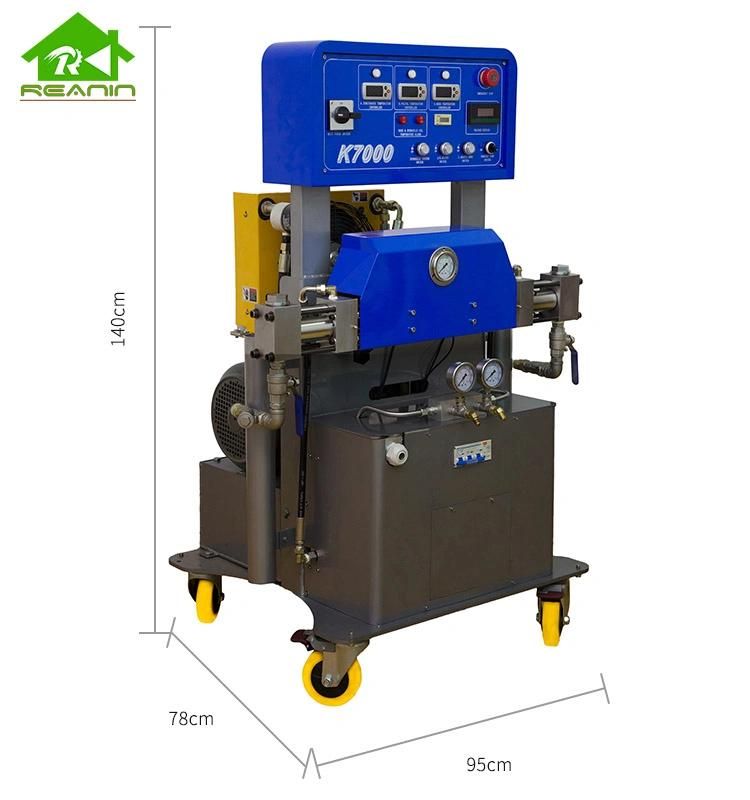

K7000
Description

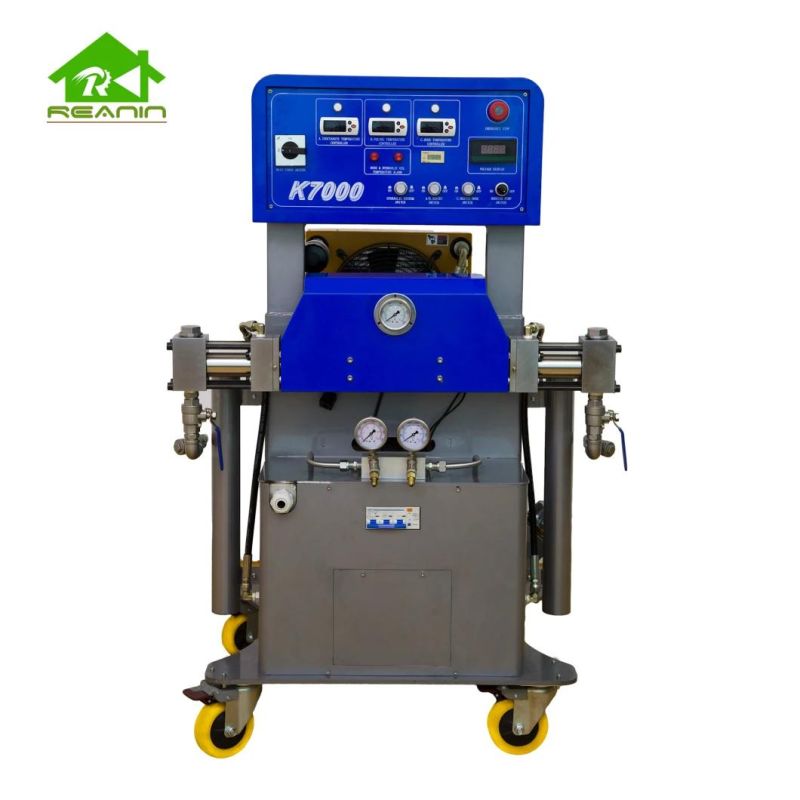

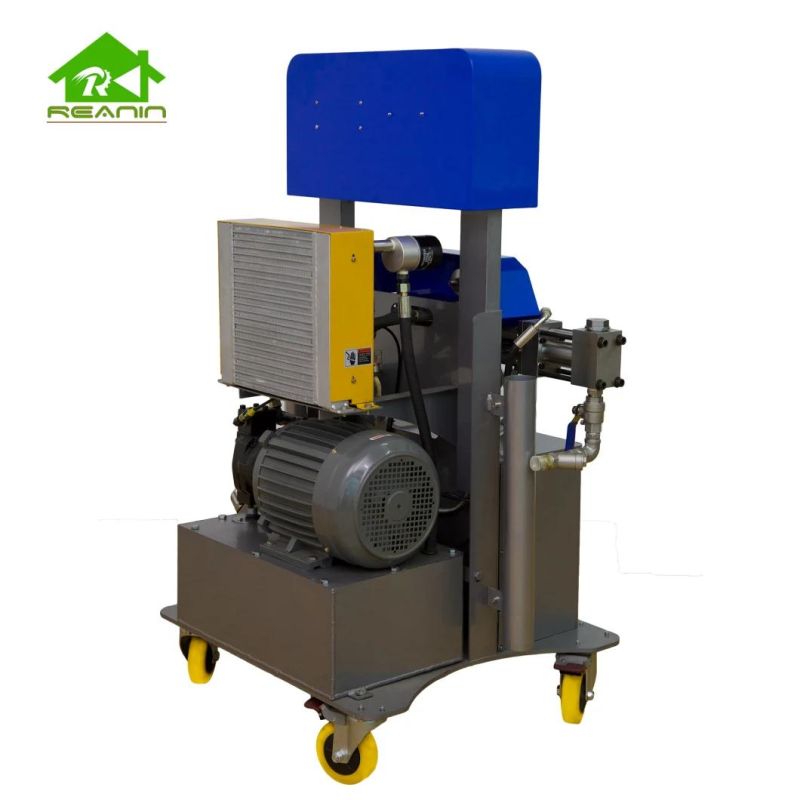

Reanin-K7000 is a hydraulic driven, professional and large polyurethane polyurea spray machine. It is equipped with a horizontal booster pump, which not only has stable working pressure, but also has a large output. Suitable for mobile spray vehicle and large construction projects.

Application

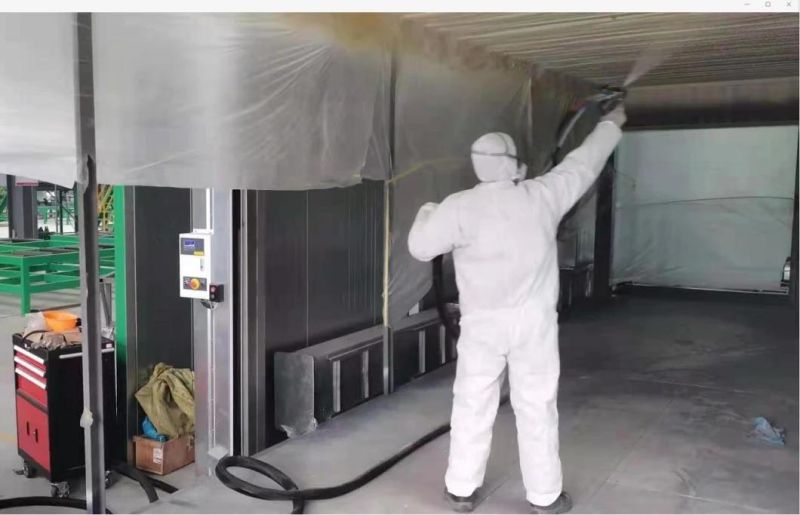

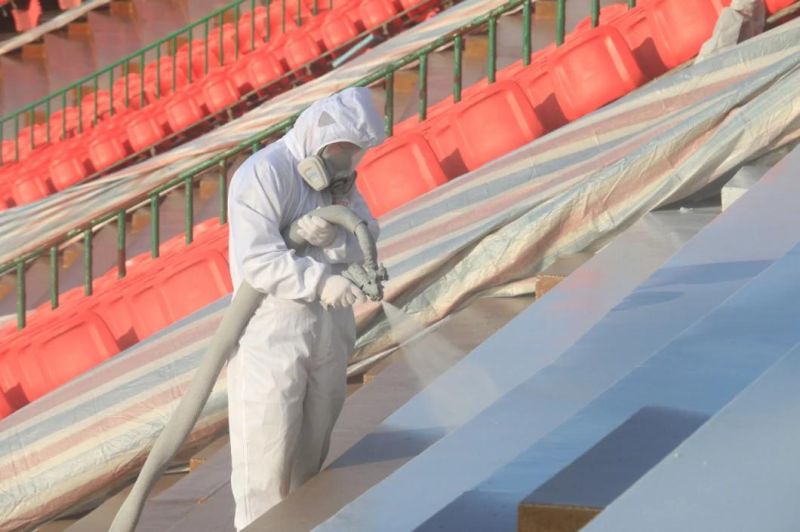

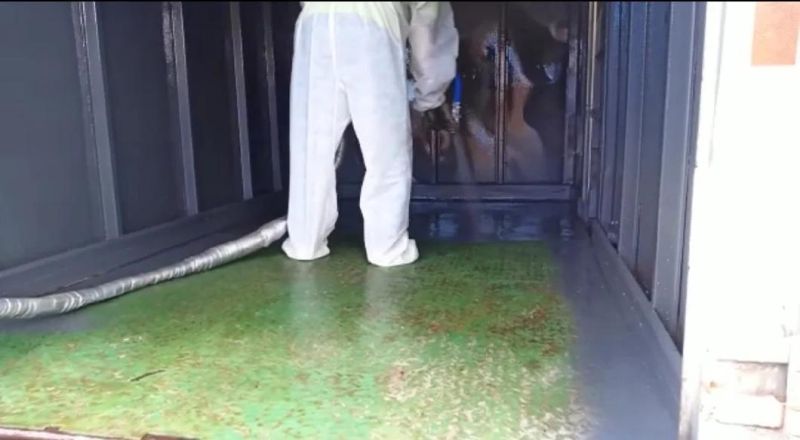

construction, automobile, road, railway, shipbuilding, mining, petroleum, electrical, and other industries.


Advantages
1.This machine has pass the CE certificate,
2.Panel with operation tips is easy to set up,
3.Equipped with hydraulic station, the working pressure is stable, and the effect of continuous spraying for a long time is good,
4.The horizontal booster pump not only has a large output, but also has a stable working pressure. The coaxial design minimizes the wear and tear, and the service time lasts longer,
5.The high-speed circulating lubricating fluid in the anti-curing lubrication cylinder can quickly take away the leakage of materials, and the ISO pump shaft is always immersed in the lubricating fluid to avoid crystallization,
6.The hydraulic station is equipped with an over pressure and over temperature alarm device, which can protect the safety of equipment and users,
7.A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different materials,
8.Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range,

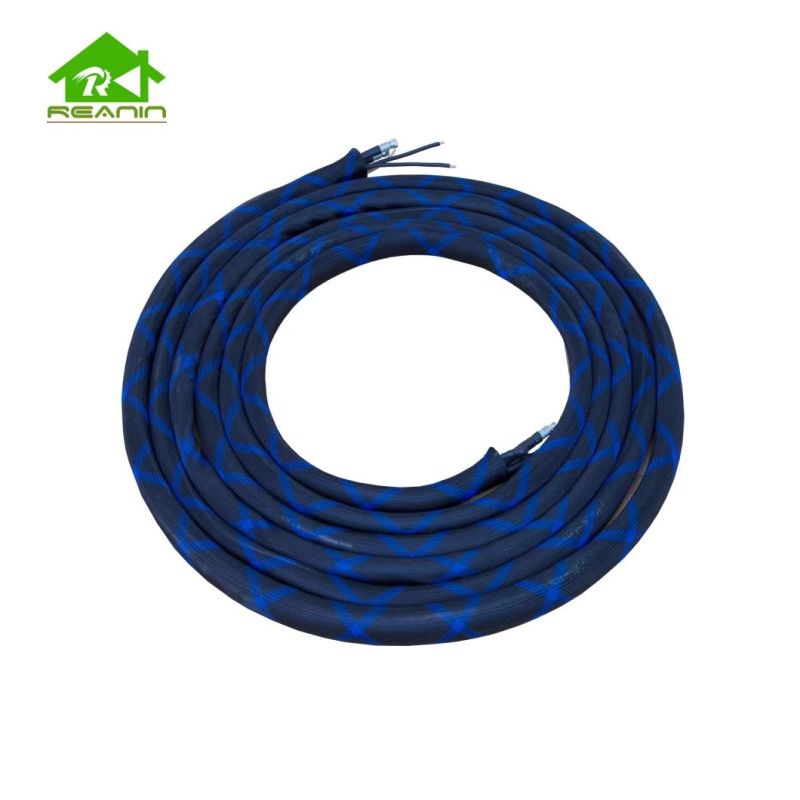

9.The heated hose is wrapped around the heating belt, the heating is fast and uniform, and covered with the insulation and protective cover, which is safe and durable,
10.The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter impurities and crystals in the materials and reduce the occurrence of the blocking gun,
11.High-precision pressure gauges are available in MPA and PSI to meet the needs of different customers,
12.Equipped with an action counter to accurately calculate the amount of raw materials,

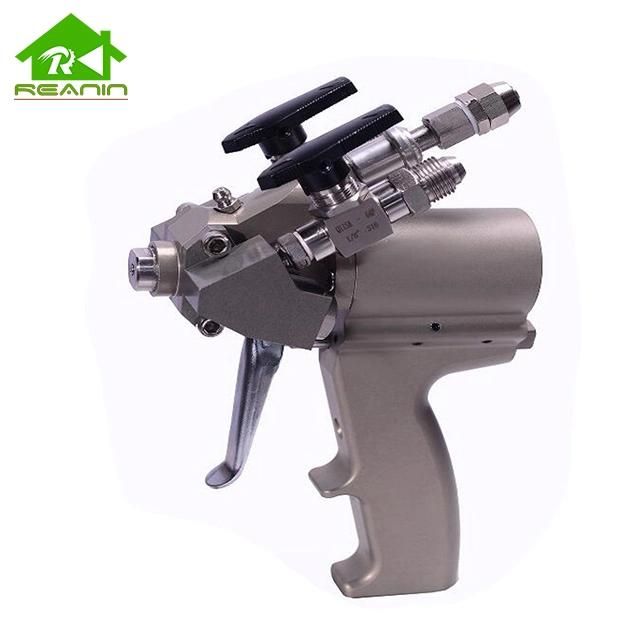

13.The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.



Technical Parameters

Model	Reanin-K7000 polyurethane and polyurea spray machine
Applicable materials	Polyurethane and Polyurea
The ratio of raw material	1:1
Viscosity range of raw materials	200-1000CPS (under working temperature)
Max working pressure	25MPa
Max fluid temperature	80°C
Max output	15kg/min
Max heated hose length	90m
Heater power	6000W×2
Heated hose max power	3500W
Drive mode	Hydraulic
Clean mode	Self-cleaning by air
Voltage (Optional)	Three phase 220V 60Hz or Three phase 380V 50Hz
Whole power	21kw
Pneumatic source	0.5-0.8Mpa 1m³/min

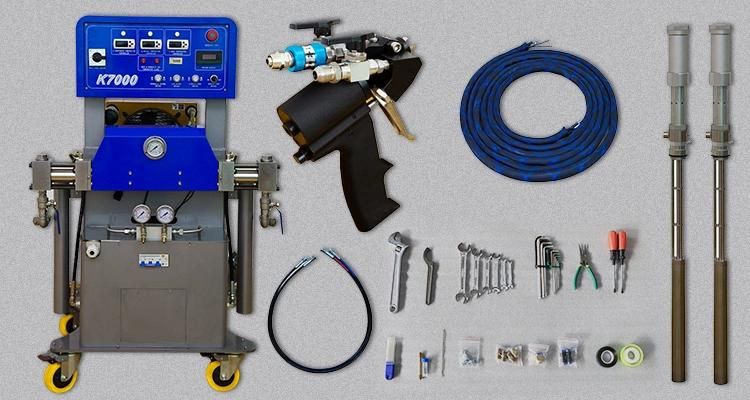

Standard Configuration:



Reanin-K7000 mainframe	1 set
Reaninspray gun	1 set
Transfer pump	2 sets
Heated hose	15m
Transfer pump hose	2 pcs
Whip hose	2 pcs
Air pipe	1 set
Tools and spare parts	1 set
English user manual	1 set

Transportation Parameters (Based on standard configuration):


Model	Reanin-K7000 polyurethane and polyurea spray machine
Package size (LXWXH)	120X90X155cm
Net weight	315kg
Gross weight	383kg

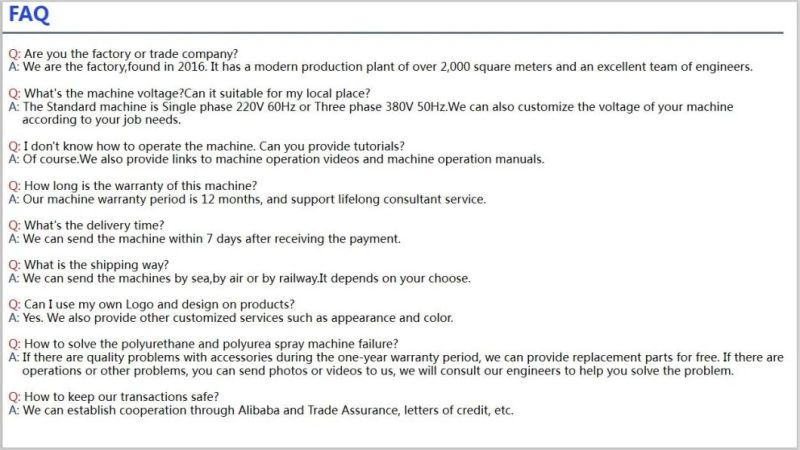

FAQ:


About us:


Shandong Reanin Machinery Co.,Ltd is one of the leading manufacturers of polyurethane and polyurea equipment in China.
It has a modern production plant of over 2,000 square meters and an excellent team of engineers. Our products are exported to more than 30 countries and regions, serving more than one thousand customers around the world.
Shandong Reanin Machinery Co.,Ltd has five carefully designed products for different customers. K2000 and K3000 are pneumatic spray machine, for spraying polyurethane. The K5000 is an ultra-high pressure pneumatic machine that can spraying polyurethane and polyurea both. K6000 and K7000 are hydraulic driven machine for spraying polyurethane and polyurea both.
Shandong Reanin Machinery Co.,Ltd not only provides polyurethane polyurea spray equipment, but also provides related products, such as polyurethane materials, polyurea materials, generator sets and air compressors, etc.
We provide customers with professional polyurethane and polyurea industry solutions. Welcome to contact us!
