Plastic Extrusion Machinery with Fixed Blade Shear The Materials by Rotation

Jiangsu Turui Machinery Co., Ltd.
  • Warranty：1 Year
  • Material Processed：Film&Bottle
  • Plastic Type：PE PP PS
  • Screw：Single-Screw
  • Automation：Automation
  • Computerized：Computerized

Base Info

  • Certification：ISO9001:2008, CE
  • Type：Recycling Granulator
  • Power：22kw-160kw
  • Voltage：380V 50Hz
  • Application：Granules Production
  • Weight：4000kg
  • After-Sales Service Provided：Free Spare Parts, Field Installation
  • Transport Package：Wooden Case and Plastic Films
  • Specification：1.5*0.8*1.8
  • Trademark：TURUI
  • Origin：Jiangsu, China

Description

PP film AgglomeratorPET Chemical fiber cloth AgglomeratorModelGHX100GHX200GHX300GHX400GHX500Volume100L200L300L400L500LEffective volume75L160L225L310L380LSpeed(R/min)1050950950810800Output(KGS/H)200300350500700Motor power(KW)45/5555/7575/90110/90160/132Weight(KGS)11001900190020003500Size(m)1.7*0.75*1.52*0.85*1.62*0.85*1.62*0.85*1.62.3*0.9*1.7Moving blade22244Settled blade66688
Detail Pictures

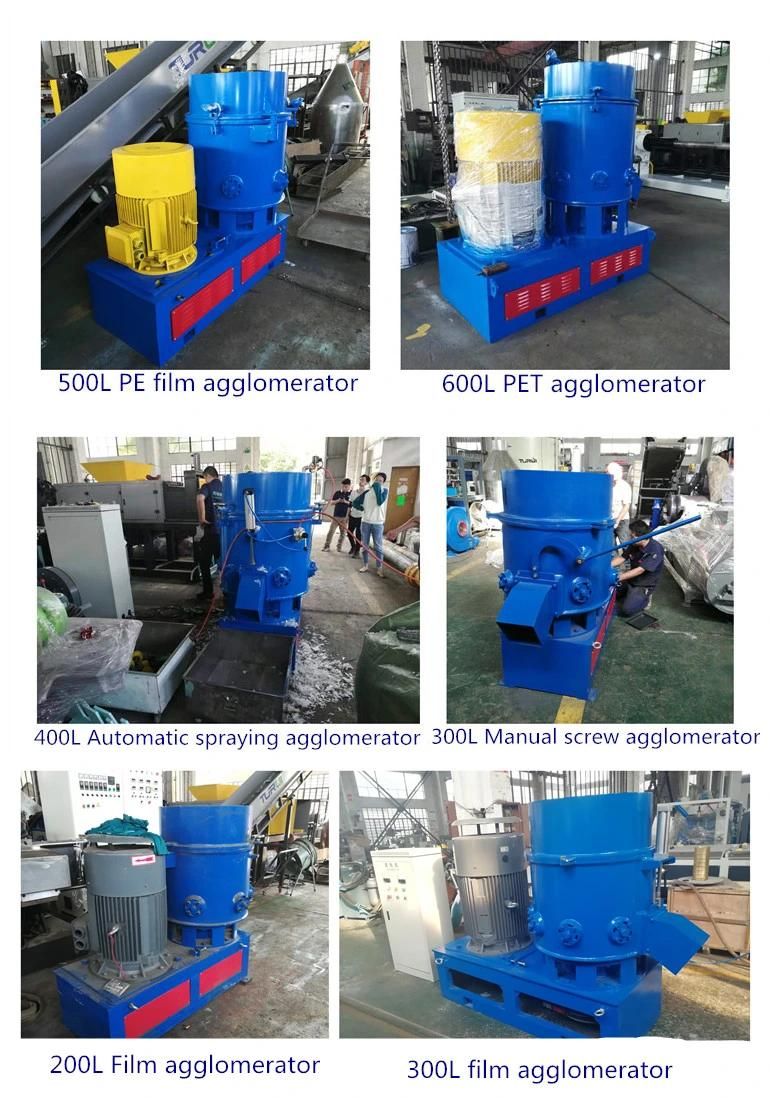

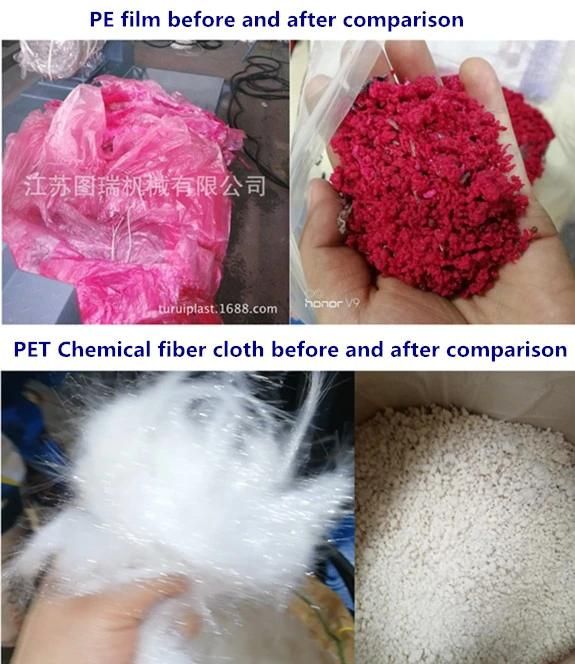

Plastic Extrusion Machinery with Fixed Blade Shear The Materials by RotationParticles show

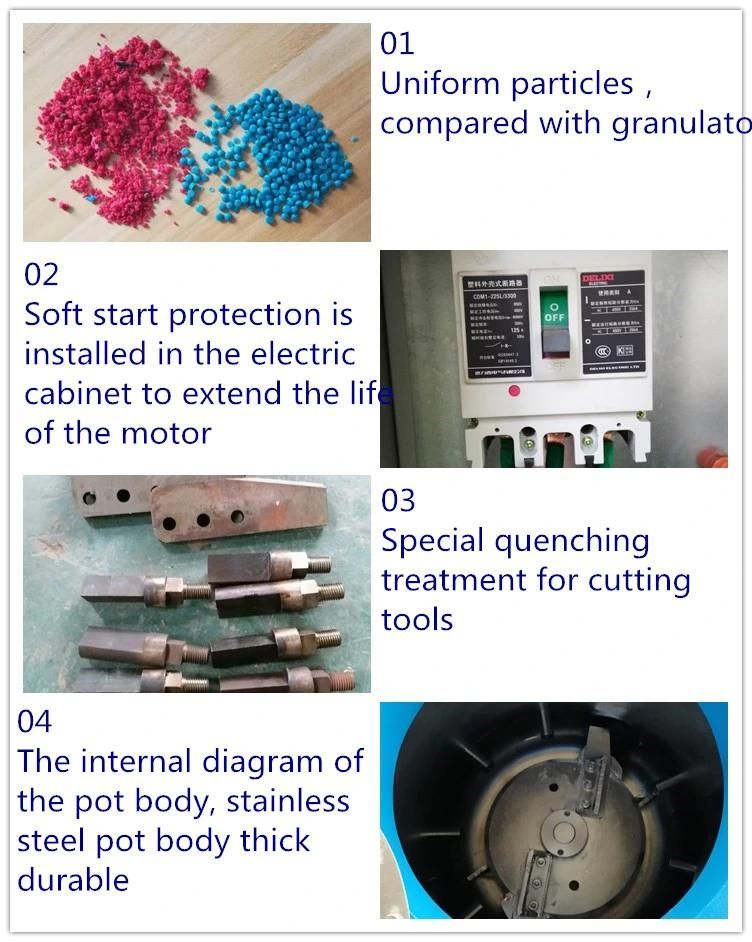

Plastic Extrusion Machinery with Fixed Blade Shear The Materials by RotationProduct Superiority

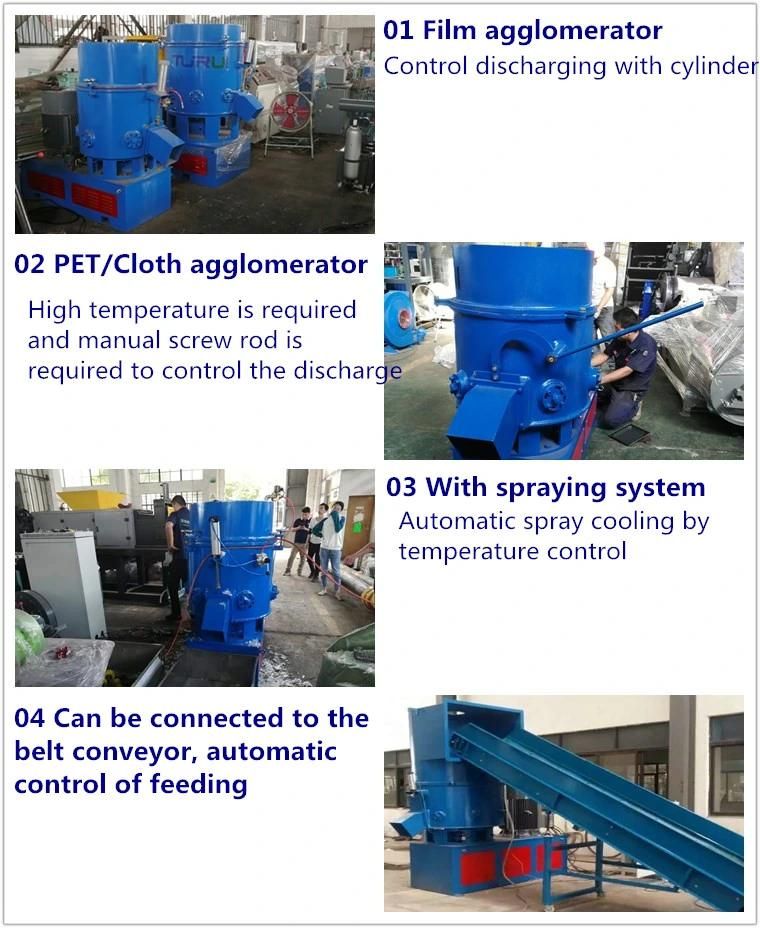

Plastic Extrusion Machinery with Fixed Blade Shear The Materials by RotationProduct Diagram

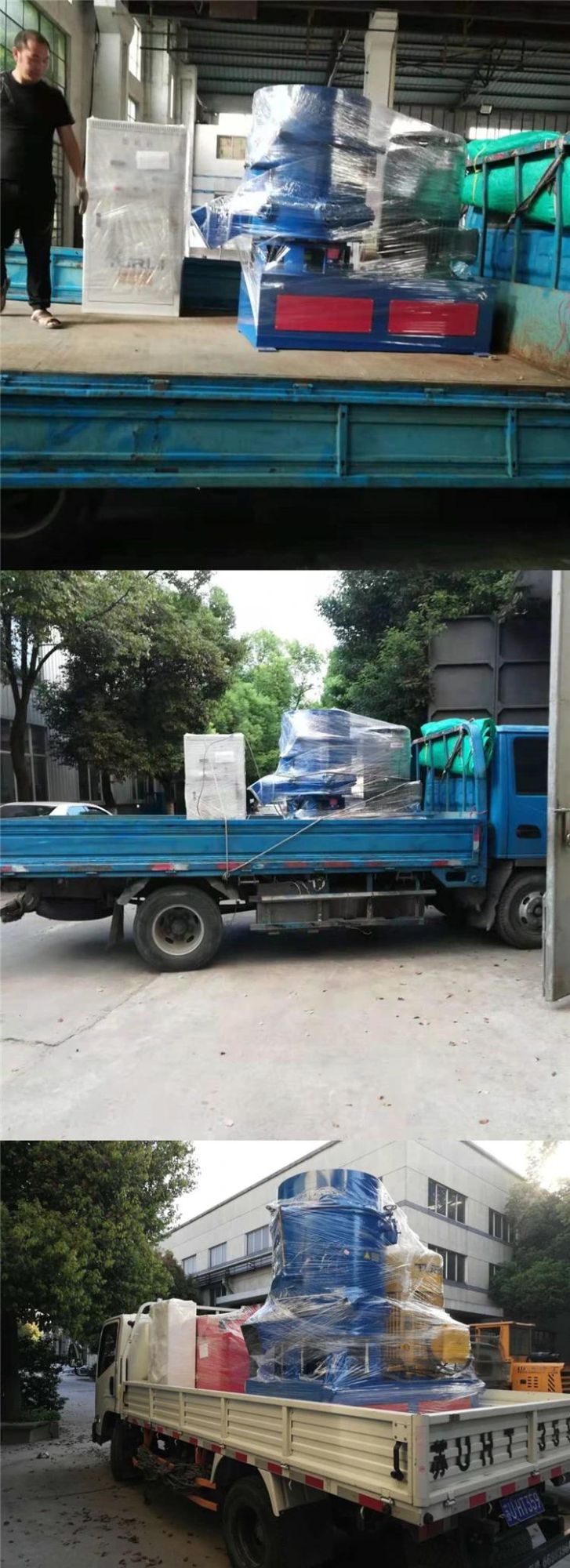

Plastic Extrusion Machinery with Fixed Blade Shear The Materials by RotationShipment Picture
Plastic Extrusion Machinery with Fixed Blade Shear The Materials by RotationAbout us
Plastic Extrusion Machinery with Fixed Blade Shear The Materials by Rotation
