Plastic Single Wall Corrugated Pipe Machine

Qingdao Tongsan Plastic Machinery Co., Ltd.
  • Type：Corrugated Pipe Extruder
  • Plastic Processed：PE,PP,EVA
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw

Base Info

  • Model NO.：SJ65
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Capacity：50-80kg,H
  • Motor Power：30kw
  • Inventer：ABB
  • Temperature Controller：Omron
  • Main Motor：Siemens
  • Qarranty Period：12 Months
  • Transport Package：Sea Worth Package
  • Trademark：Tongsan
  • Origin：China
  • HS Code：84772090
  • Production Capacity：100 Sets One Year

Description

Model
 Pipe DiameterProduction speedExtruder ModelMotor PowerSDBGZ-14
 5-14mm6-10m/min45/287.5kwSDBGZ-50
 9-32mm8-12m/min50/3015kwSDBGZ-63
 16-50mm8-12m/min65/3030kwSDBGZ-110
 32-110mm2-8m/min65/3337kwSDBGZ-160
 50-160mm2-5m/min75/3045kw

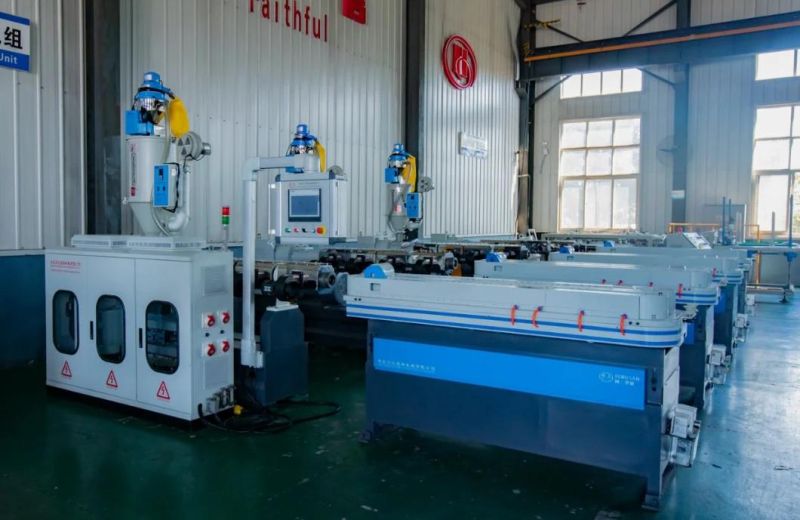

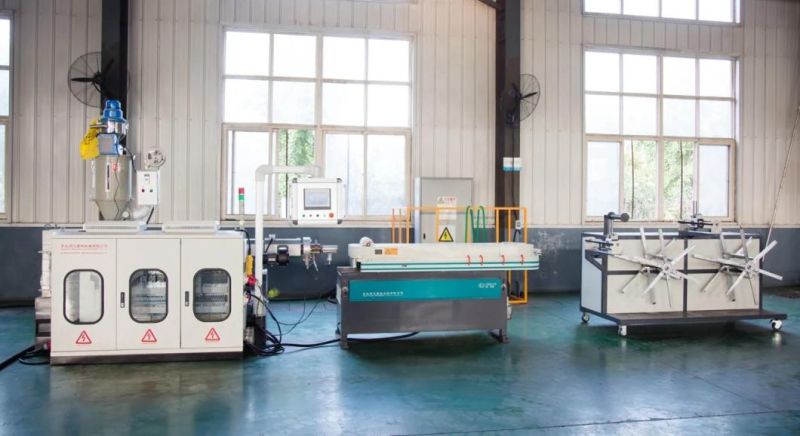

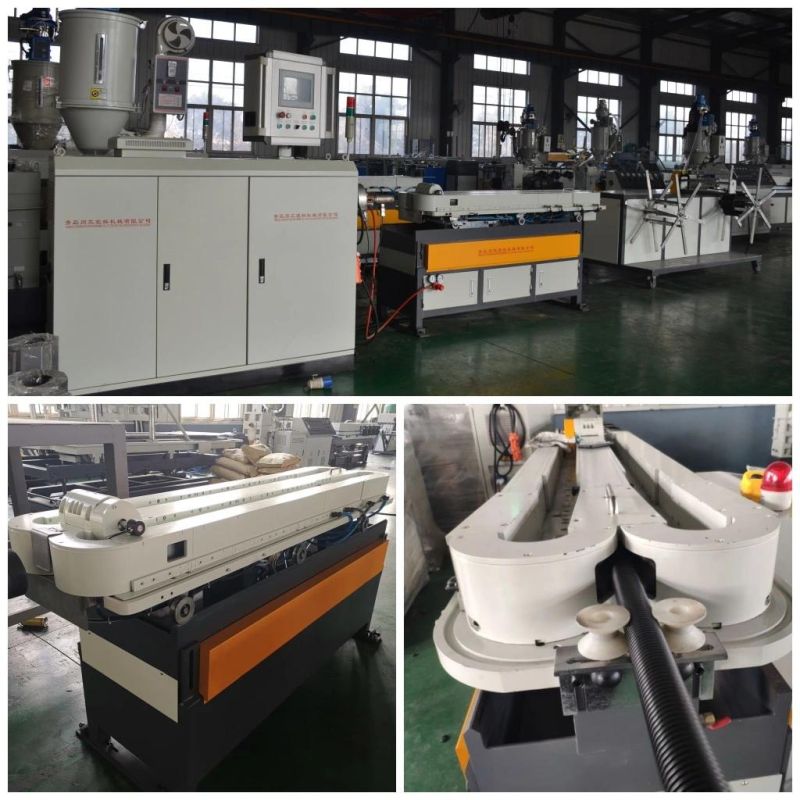

Plastic Single Wall Corrugated Pipe Machine
Plastic Single Wall Corrugated Pipe Machine

-High speed single wall corrugated pipe making machinePipe diameter range

 Pipe diameter range        9mm-50mm9mm-53mmModel of extruder
 sJ45SJ65SJ65BProduction capacity
 20-30kg/h60-80kg/h70-90kg/hPower of extruder
 7.5kw30kw37kwPower of forming machine
 1.1kw4kw4kwPairs of mods
 63pairs72pairs72pairsCooling mode
 water cooling water cooling water coolingProduction speed
 10-20m/min20-25m/min20-25m/min
