• Model NO.：SJ-90x36 SJ-30x25
• Condition：New
• Pipe Diameter Range：110-400mm
• Pipe Application：PE Water and Gas Pipe
• Output：Max.600-700kg,Hr
• Main Driving Power：243kw
• Line Speed：0.1-2.5m,Min
• Electrical Parts Brand：Siemens
• Warranty Time：14monthes
• After -Sale Service：Life-Long Time Technical Support
• Dimension：40000*5000*3800mm
• Weight：22t
• Transport Package：Machine Covered by PE Film; Mould in Wooden Case
• Specification：Follow Customers′ Need
• Trademark：WEIER
• Origin：Qingdao City Shandong Province, China
• HS Code：84772090
• Production Capacity：20 Units Per Year

Basic Info.

Model NO. SJ-90x36 SJ-30x25 Condition New Pipe Diameter Range 110-400mm Pipe Application PE Water and Gas Pipe Output Max.600-700kg/Hr Main Driving Power 243kw Line Speed 0.1-2.5m/Min Electrical Parts Brand Siemens Warranty Time 14monthes After -Sale Service Life-Long Time Technical Support Dimension 40000*5000*3800mm Weight 22t Transport Package Machine Covered by PE Film; Mould in Wooden Case Specification Follow Customers′ Need Trademark WEIER Origin Qingdao City Shandong Province, China HS Code 84772090 Production Capacity 20 Units Per Year

Product Description

110mm-400mm PE water and gas pipe making machine with CE certificateDiscreption of PE water and gas pipe machine
This PE Pipe Production Line is mainly used for producing PE pipes, diameter range: 16-630mm, etc
Process flow of PE water and gas pipe production line:
Raw material + additive mixing vacuum feeding machine hopper dryer single screw extruder color code extruder mould and calibrator vacuum forming machine cooling tank haul-off machine cutting machine discharging rack

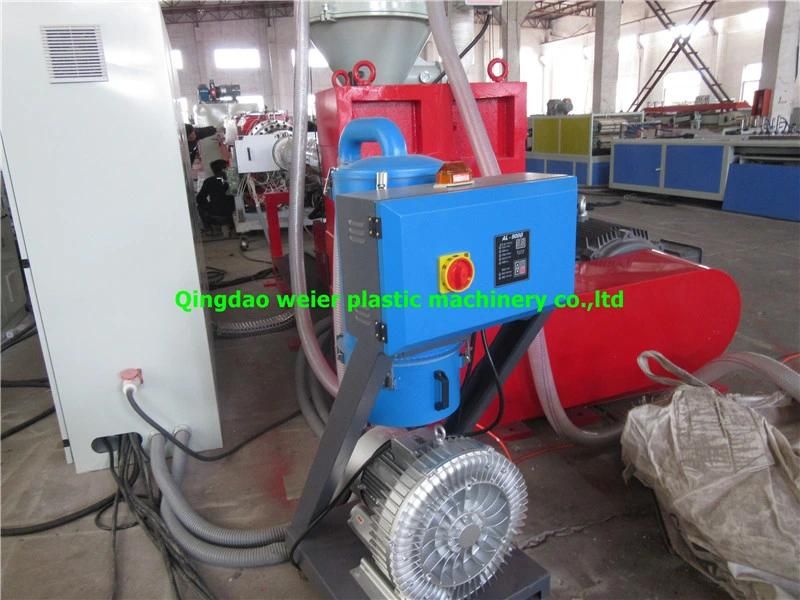

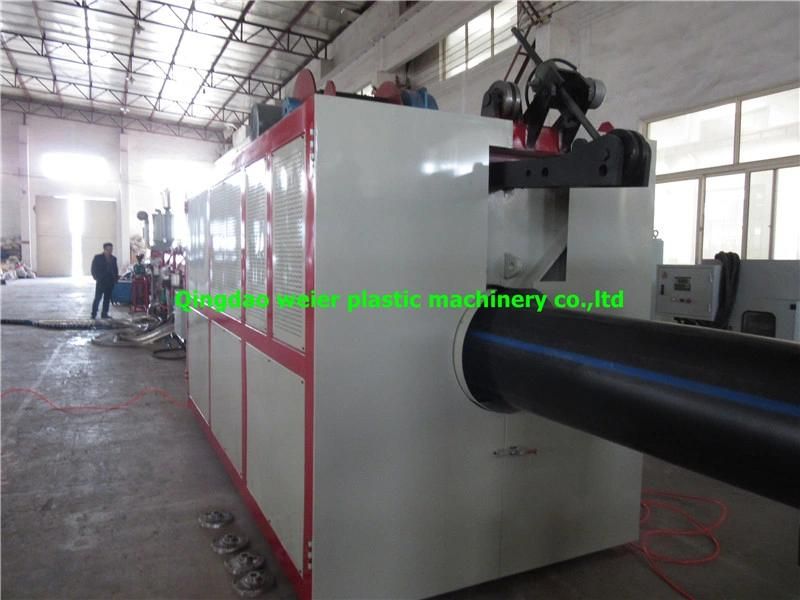

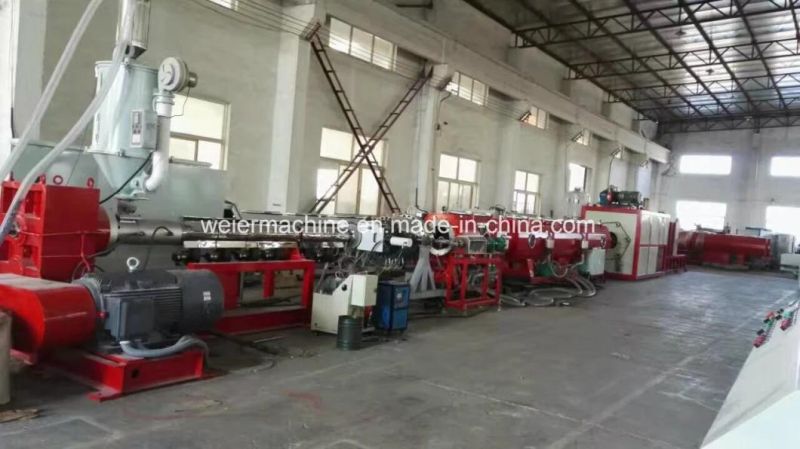

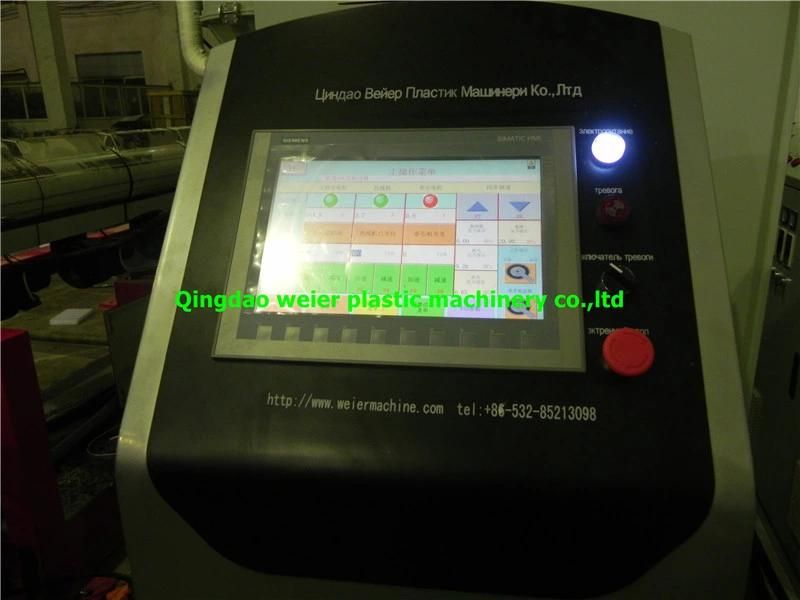

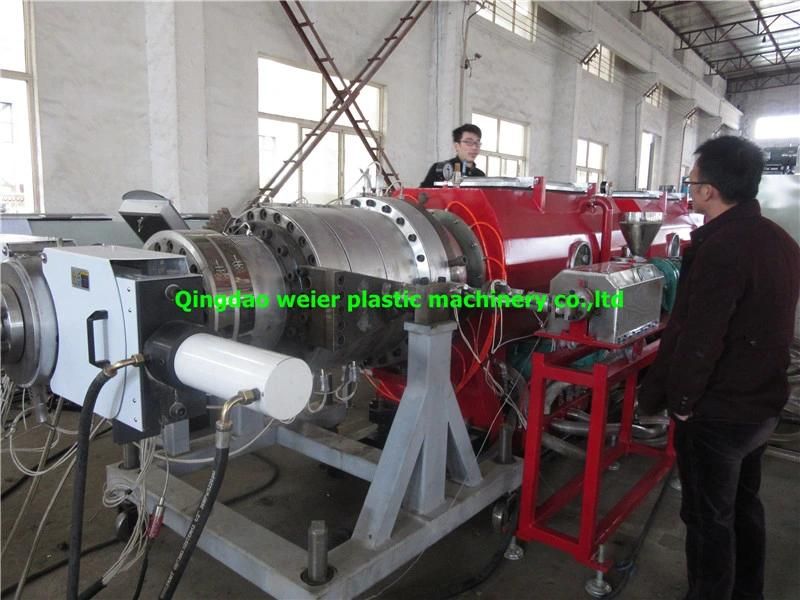

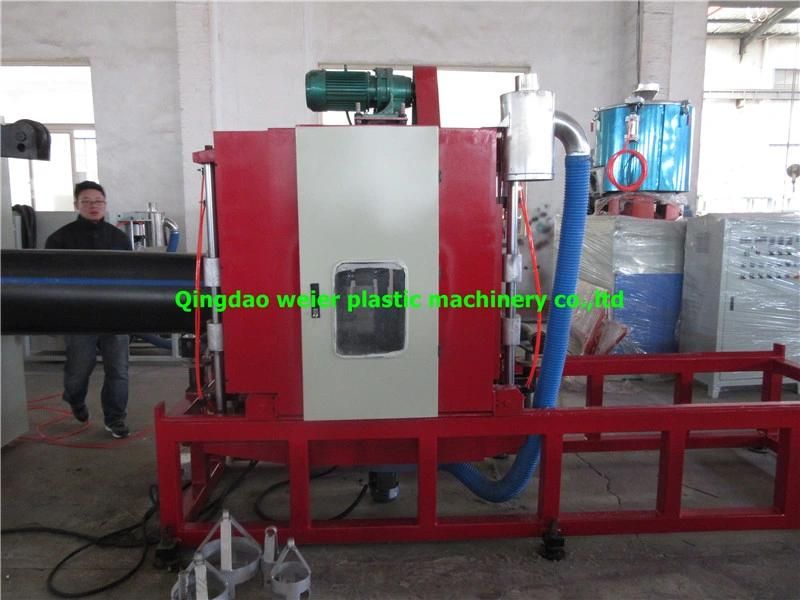

Photos of PE water and gas pipe machine



Parameter of PE pipe production line

pipe diameter	main machine	MAX hauling speed	motor power	MAX capacity
16-63mm	SJ65/30	12m/min	55kw	150kg/h
20-110	SJ65/33	10m/min	75kw	180kg/h
75-160	SJ75/30	8m/min	110kw	350kg/h
90-250	SJ75/33	5m/min	110kw	350kg/h
110-315	SJ90/33	3m/min	160kw	450kg/h
160-450	SJ90/33	2m/min	160kw	450kg/h
315-630	SJ120/33	1.6m/min	280kw	850kg/h
450-800	SJ150/33	0.8m/min	315kw	1000kg/h
