• Model NO.：ABLD100
• Certification：CE
• Screw Diameter：100mm
• Machine Lifespan：>20years
• Weight：16.5 Tons
• Delivery Time：70 Work Days
• Max Product Volume：120 L
• Screw L/D Ratio：28
• Clamping Force：600kn
• Mold Stroke：550-1350mm
• Machine Size：5.4*2.5*4.5
• Output of HDPE：200kg,H
• Screw Drive Power：55kw
• Template Size：1150*1150mm
• Voltage：220V,380V,415V,440V 3-Phases
• Transport Package：Film Packing
• Specification：ABLD100
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：up to Product

extruder1Screw diameter100mm2L/D ratio24:13Screw speed15~50r.p.m.4Drive motor45Kw5Heating zone with cooling fan6 zone6Output/Capacity170 Kg/hr(HDPE  particle)8Heating capacity25.1 kw9Vertical adjustment of head500mm10Forward/Backward adjustment of  head500mm11Groove feed barrel cylinderHave IKV12Gear boxHard gear decelerator13Ladder and safety railsHaveAccumulator  Head1Accumulator capacity20L(15kgHDPE)2DesignFirst in and first out3Heating zone6 zone4Heating capacity25.1kw5Max die&pin diameter450mm6Die head axis with pre-blowØ120mm7Accumulator push-out stroke measurementTransducer  Italy Gefran8Injection pressure12 Mpa9Extruder stopHaveCLAMPING UNIT1Tie barTwo tie bar2Platen size900(W)X1400(H)3Length of mold900-960mm4Clamping force780KN5Close/Open stroke880-1700mm6Mold weightMax.  5000 kg7Clamping stroke measurementTransducer  Italy Gefran8Hydraulic valveTaiwan Hitech9Number of hydraulic cylinder110High pressure14 Mpa11Support parts for platen movementLiner GuideHYDRAULIC SYSTEM1Main motor/vice motorAC15Kw/15Kw2Hydraulic  valveTaiwan Hitech3Hydraulic pumpTaiwan Hitech4Oil tank capacity850L5Operating pressure12 Mpa6Cooling water for oilfixed7Control of oil levelbe observed dipstickPNEUMATIC SYSTEM1Operating pressure0.8 Mpa2Blow pressure0.8 Mpa3Needle blow circuitHigh & low pressure4Intermittent blowHave5Controlled support air for parisonHave6Air ValvesAIRTAC7Quick exhaust for support airHavePARISON CONTROL1ProgrammerJAPAN MOOG2Servo valve
MOOG
 3Servo cylinderIntergret of die head4Hydraulic pack
 TAIWAN YOSHE Variable Displacement Piston Pumps
 ELECTRICITY1Contactor
 Schneider
 2Total connected load (approx.)
 114kw/h3Average energy consumption (approx.)
 42 kw/hWATER COOLING1
Machine water consumption
 6000L/h2
Mold water consumption

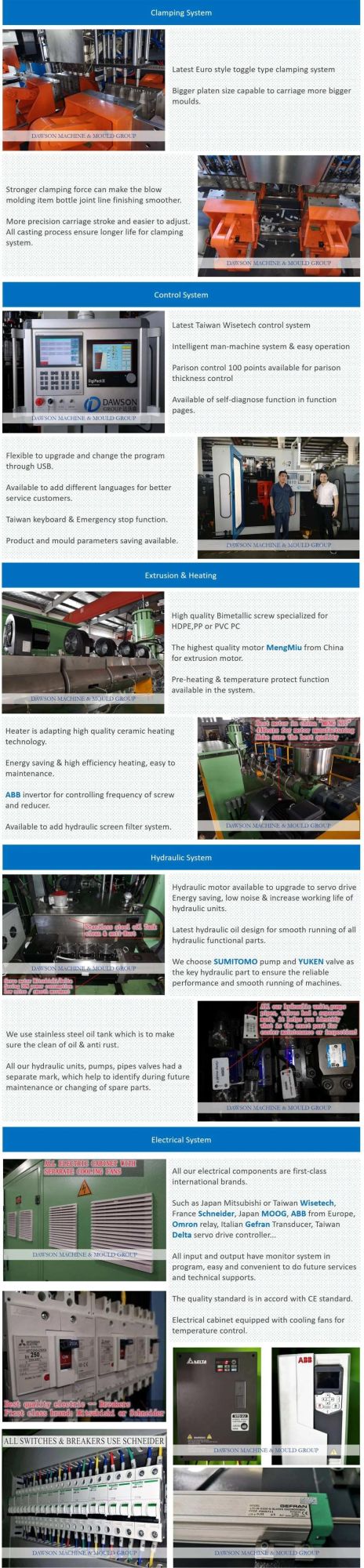

 6000L/hAIR CONSUMPTION1Compressed air consumption1.2 kgf/cm2, 3000 L/minOTHER FEATURES1PLC controlMITSUBISHI2Human machine interfaceHitech3Recipe storage in hard diskAvailableHEATING CONTROL1Power supply to heating elementRelay + ContactorJapan Omron+Korea LG2ControlPLC controle3Type of thermocoupleK Type4Adjustable lower and upper limit alarmHave5Cold start prevention for screwHave6Alarm for thermocouple and heating element breakageHave, heating element breakage by anperemeter7Pre-heating functionHaveDie-ring AND Die-pin1one sets of die & pinOne set according to customer2Test materialBuyer supply 300kg material to seller for machine testingOPTION1Bottom blow (hydraulic) and sealing unit (pneumatic)Double blow pin (including expand & up-down & parison seal)2RobotHave3Machine Dimension6.8×3.3×54Total weight20Detailed Photos



 High quality mould



Company Profile

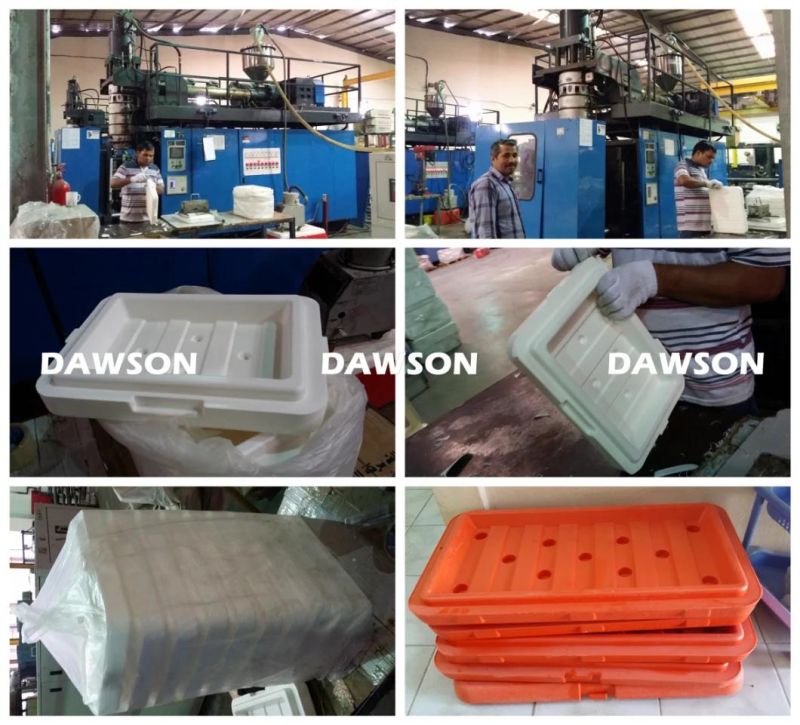

Customer Feedback
 After Sales Service





FAQ



Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
