F2b-Rd-1000 Double Layer Co-Extrusion Rotary Die Head Film Blowing Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：1000mm
  • Screw Diameter：50*2mm

Base Info

  • Automation：Automatic
  • Computerized：Computerized
  • Machine Weight：4000kg
  • Certification：CE, ISO9001:2008
  • Suitable Material：LDPE,HDPE,LLDPE
  • Output：100kg,H
  • Thickness of Film：0.02-0.10mm
  • Screw L/D：30:1
  • Main Motor：15*2kw
  • Transport Package：Wooden Package
  • Specification：4200*3200*6200mm
  • Trademark：HOIN
  • Origin：Ruian, Zhejiang, China
  • HS Code：8477309000
  • Production Capacity：5 Sets,One Month

Description

MODLEF2B-RD-800F2B-RD-1000F2B-RD-1200F2B-RD-1500Suitable materialLDPE LLDPE   HDPELayfat width of film(mm)800100012001500Thickness of film(mm)0.02-0.10Max.extrusion output75kg/h100kg/h120kg/h140kg/hScrew dia(mm)Φ45x2Φ50x2Φ55x2Φ60x2Screw L/D30:1Screw rotation10-100r/minMain motor(kw)11x215x218.5x222x2Dia of orifice(mm)Φ200Φ250Φ300Φ350Rir ring structure form Double air vent air ringRotary traction form  360°continuous rotationTota power(kw)40455570Weight (T)3.5455.5Dimension LxWxH(M)4x3x4.44.2x3.2x4.64.6x3.4x55.2x3.7x6     MODLEF2B-RD-1700F2B-RD-2000F2B-RD-2500F2B-RD-3000Suitable materialLDPE LLDPE   HDPELayfat width of film(mm)1700200025003000Thickness of film(mm)0.03-0.10Max.extrusion output140kg/h175kg/h200kg/h230kg/hScrew dia(mm)Φ60x2Φ70x2Φ80x2Φ90x2Screw L/D30:1Screw rotation10-100r/minMain motor(kw)22x237x245x255x2Dia of orifice(mm)Φ420Φ500Φ600Φ700Rir ring structure form Double air vent air ringRotary traction form  360°continuous rotationTotal power(kw)80120150180Weight (T)68.51113Dimension LxWxH(M)5.2x4x6.28x4.2x89x4.5x9.610x5x11

Machine Pictures for Reference:

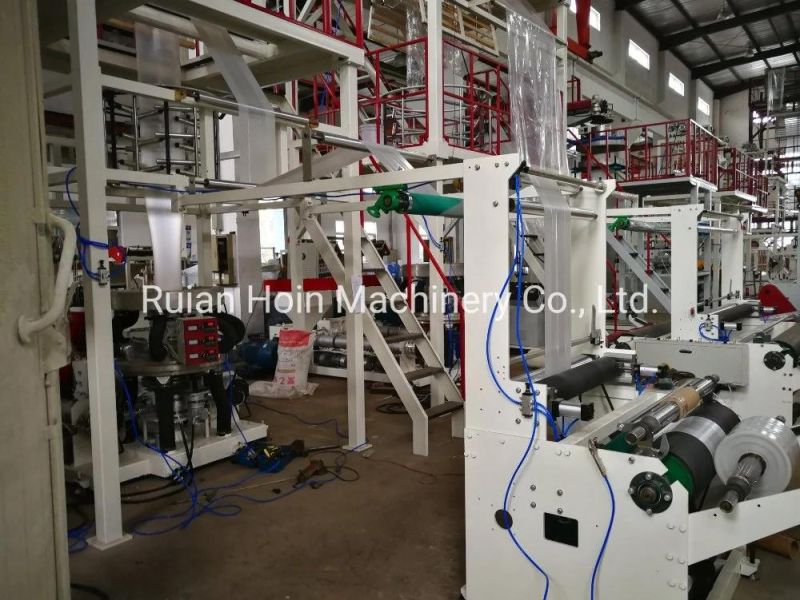

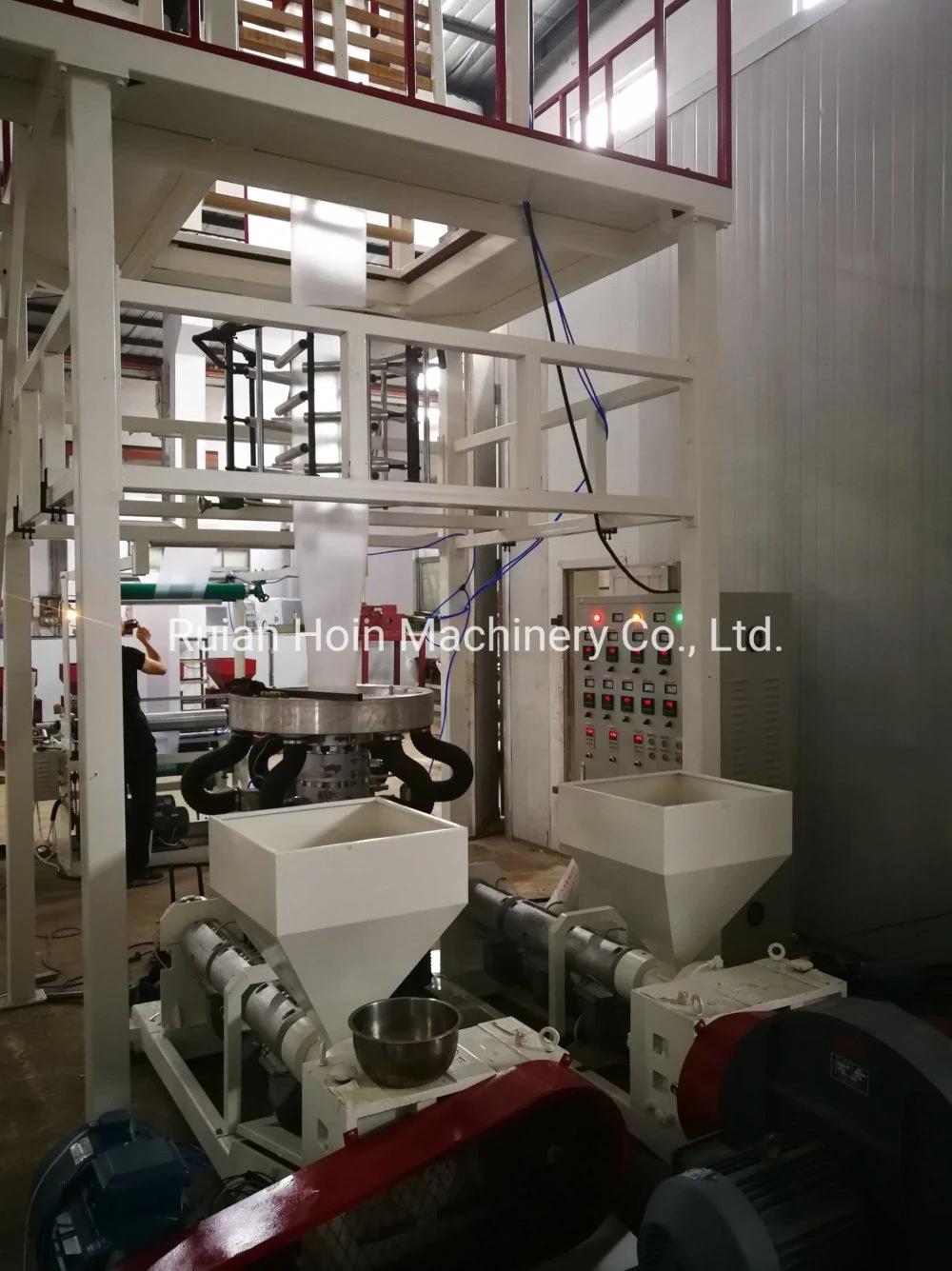

Double Layer Co-Extrusion Rotary Die Head Film Blowing Machines LineDouble Layer Co-Extrusion Rotary Die Head Film Blowing Machines LineDouble Layer Co-Extrusion Rotary Die Head Film Blowing Machines Line

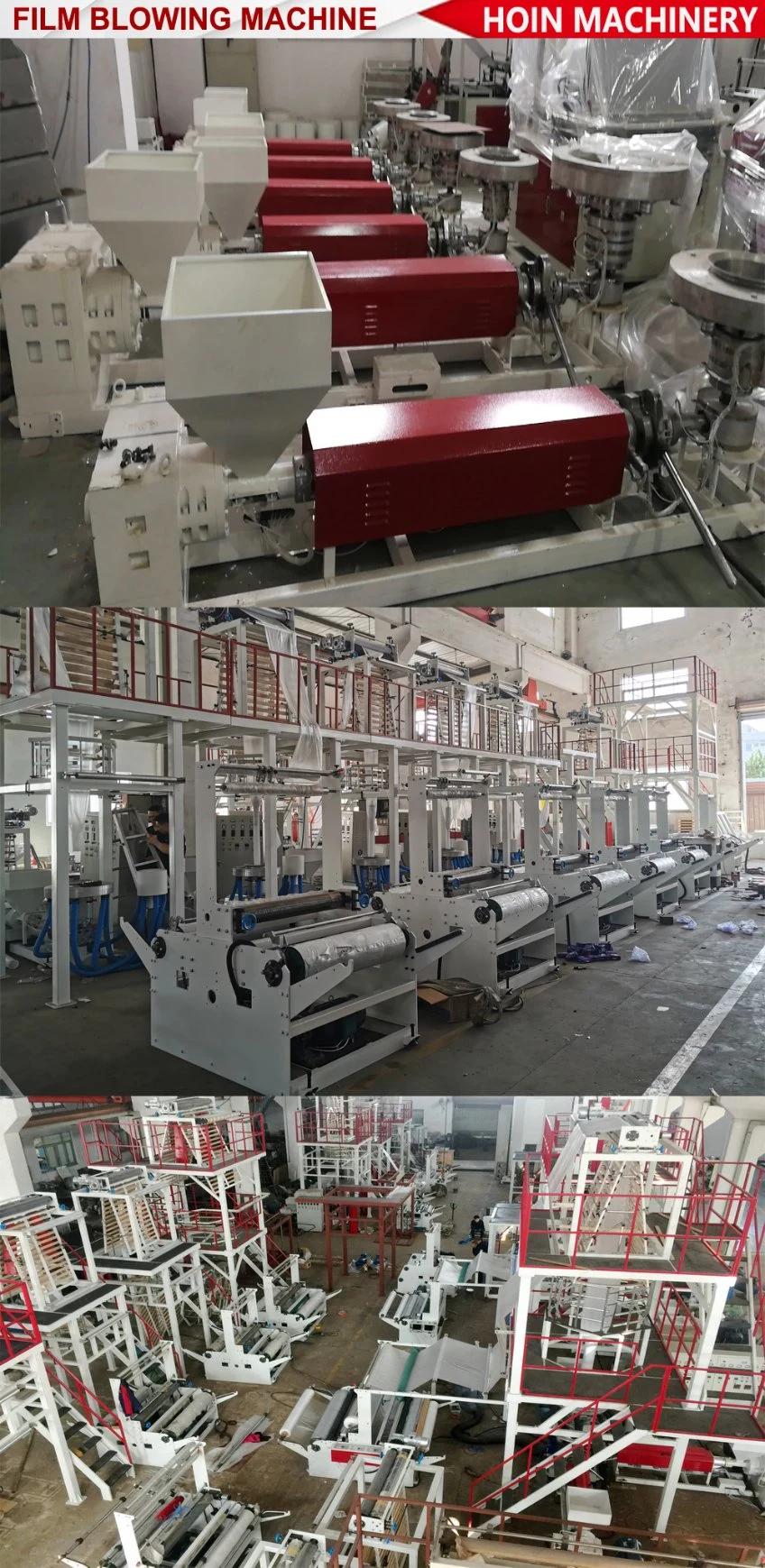

Workshop of HOIN
High Speed PE Film Blowing Machine for HDPE LDPE LLDPEHigh Speed PE Film Blowing Machine for HDPE LDPE LLDPEHigh Speed PE Film Blowing Machine for HDPE LDPE LLDPE

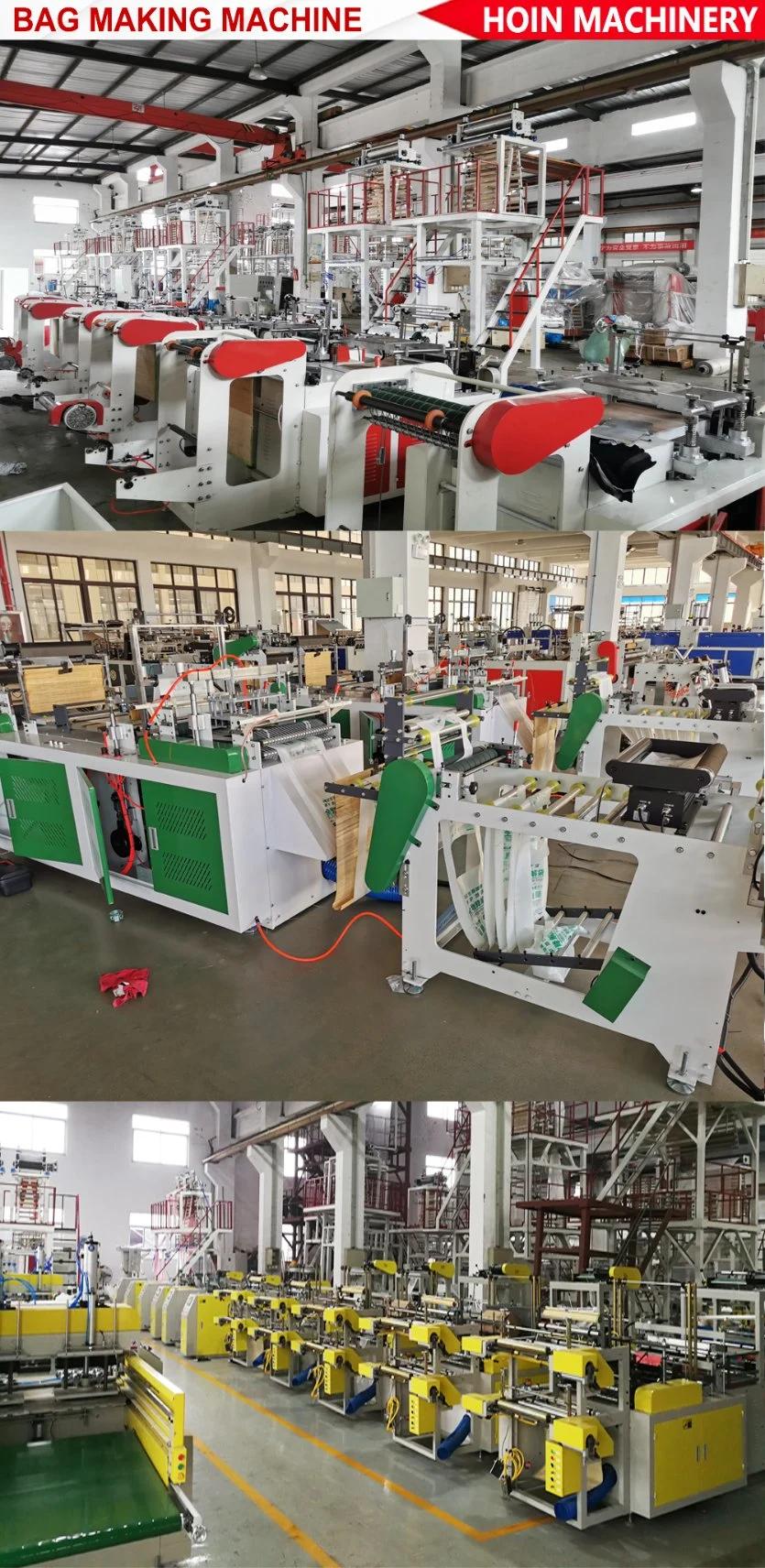

More Products Optional
High Speed PE Film Blowing Machine for HDPE LDPE LLDPEAfter Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
