• Model NO.：KM-A4
• Warranty：1 Year
• Voltage：380V,220V
• Transport Package：Standard Wooden Case
• Specification：ISO, CE, SGS
• Trademark：king machine
• Origin：Zhangjiagang City, Jiangsu Province, China
• HS Code：84223010
• Production Capacity：15sets Per Month

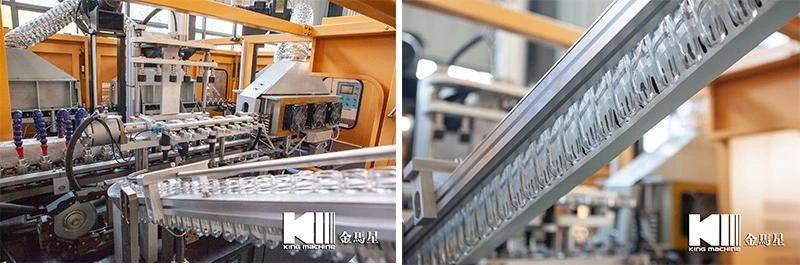

KM-A6S Automatic PET bottle blowing machineProductivityDepend on bottle design9600PCS/HProduct typeBody diameter20mm-100mmHeight50mm-350mmNeck diameter15mm-38mmMoldCavity6cavitiesMold thick240mmMold500*500mmMain machine powerElectrical source power380v 3Phase /220v 3Phase  50/60HZRated Power49kwReally use power14kwAir sourceLP air compressor1.6m3/min 1.0MPa 1set (15KW)HP air compressor1.0m3/min 3.0MPa 2sets (each set 11KW)Air dryer2.0m3/min 3.0MPa 1setCooling waterCooling water15L/minSizeL*W*H1908*1858*1920mmWeight3600kgpreform unscramblerL*W*H2000*950*2480mmWeight250kgResin available PET

1. Feature

1.1 New Auto Preform Unscrambler System
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will
warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.



1.2 New Heating System
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.



 1.3 The Application Of Servo System On Main Transmission
 The transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily when the machine starts and running.

1.4 Servo Technology Innovation On Clamping System & Stretching
*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.

1.5 Easy To Change Bottle Shape
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the
condition of same bottleneck diameter.



1.6 Intelligent Human-Machine Interface
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.






Please feel free to contact with me:
Zhangjiagang King Machine Manufactory Co.,Ltd
Add: NO.22 East Seven Road Donglai Town, Zhangjiagang City, Jiangsu Province, China
website: cnkingmachine.en.made-in-china.com







King Machine Company indtroducton:

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
