• Model NO.：SJ65-FM600
• Machine Weight：3t
• Certification：CE
• Model：Sj-65FM-600
• Sicrew Daimeter：65mm
• Screw Speed：10-110r,Min
• Motor：18.5kw*2
• Max Output：50kg,H
• Single Side Thickness：0.01-0.1mm
• Total Power：40kw
• Machine Dimension：4800*2200*3800
• Transport Package：Wooden Case, Wooden Block, in Nude
• Specification：550mm*2
• Trademark：Fangtai
• Origin：Ruian, China
• HS Code：84778000
• Production Capacity：1 Set, Month

Basic Info.

Model NO. SJ65-FM600 Machine Weight 3t Certification CE Model Sj-65FM-600 Sicrew Daimeter 65mm Screw Speed 10-110r/Min Motor 18.5kw*2 Max Output 50kg/H Single Side Thickness 0.01-0.1mm Total Power 40kw Machine Dimension 4800*2200*3800 Transport Package Wooden Case, Wooden Block, in Nude Specification 550mm*2 Trademark Fangtai Origin Ruian, China HS Code 84778000 Production Capacity 1 Set/ Month

Product Description

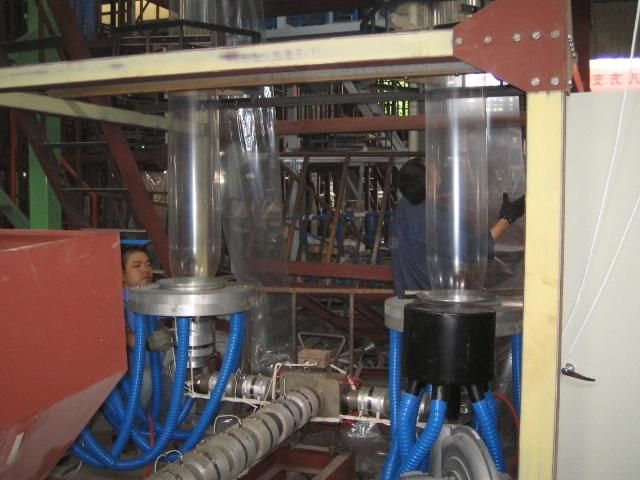

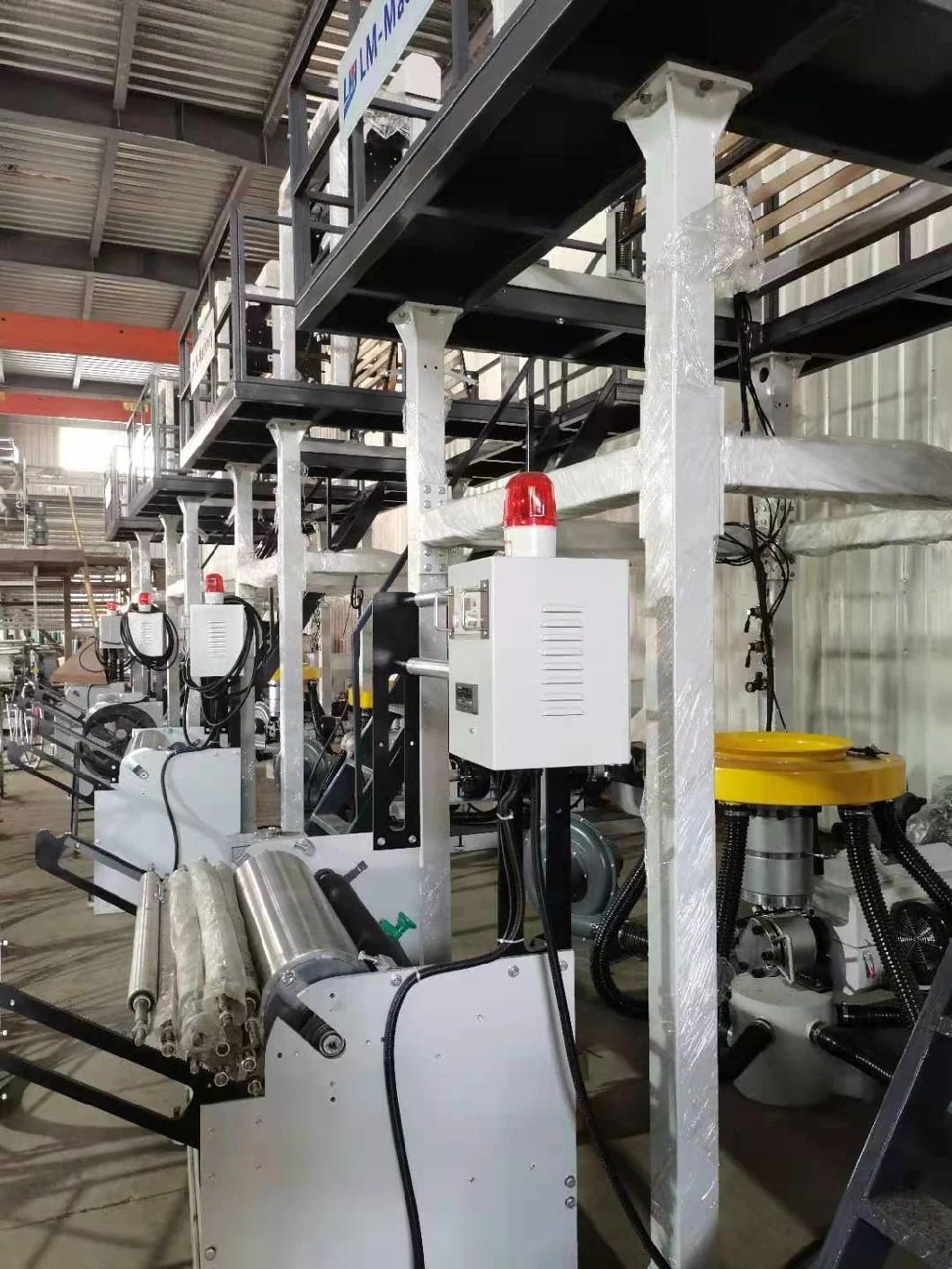

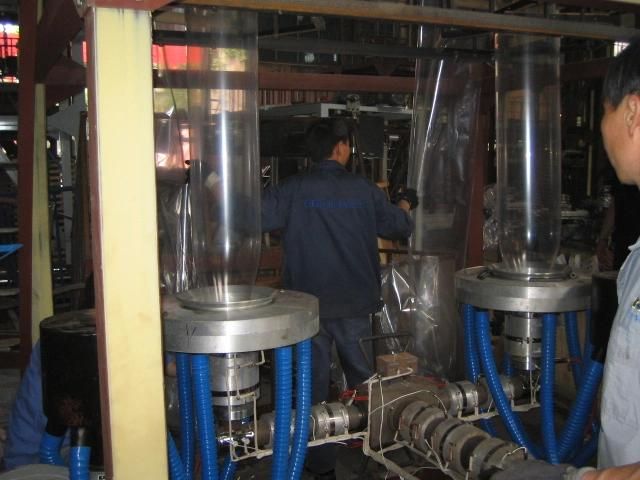

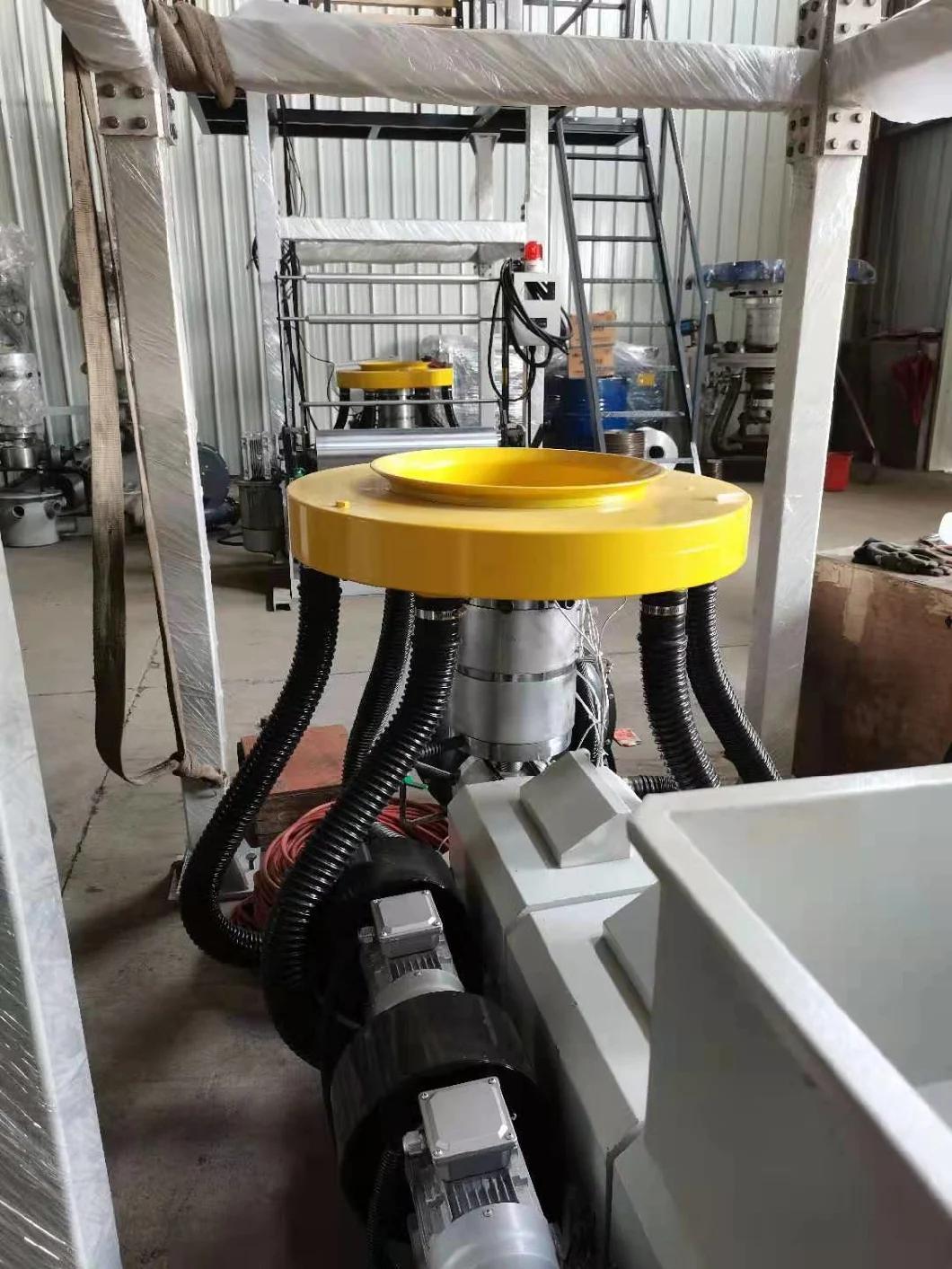

SJ-B50/55/65/65-1 PE High & low-pressure Film Blowing Machine

Use:

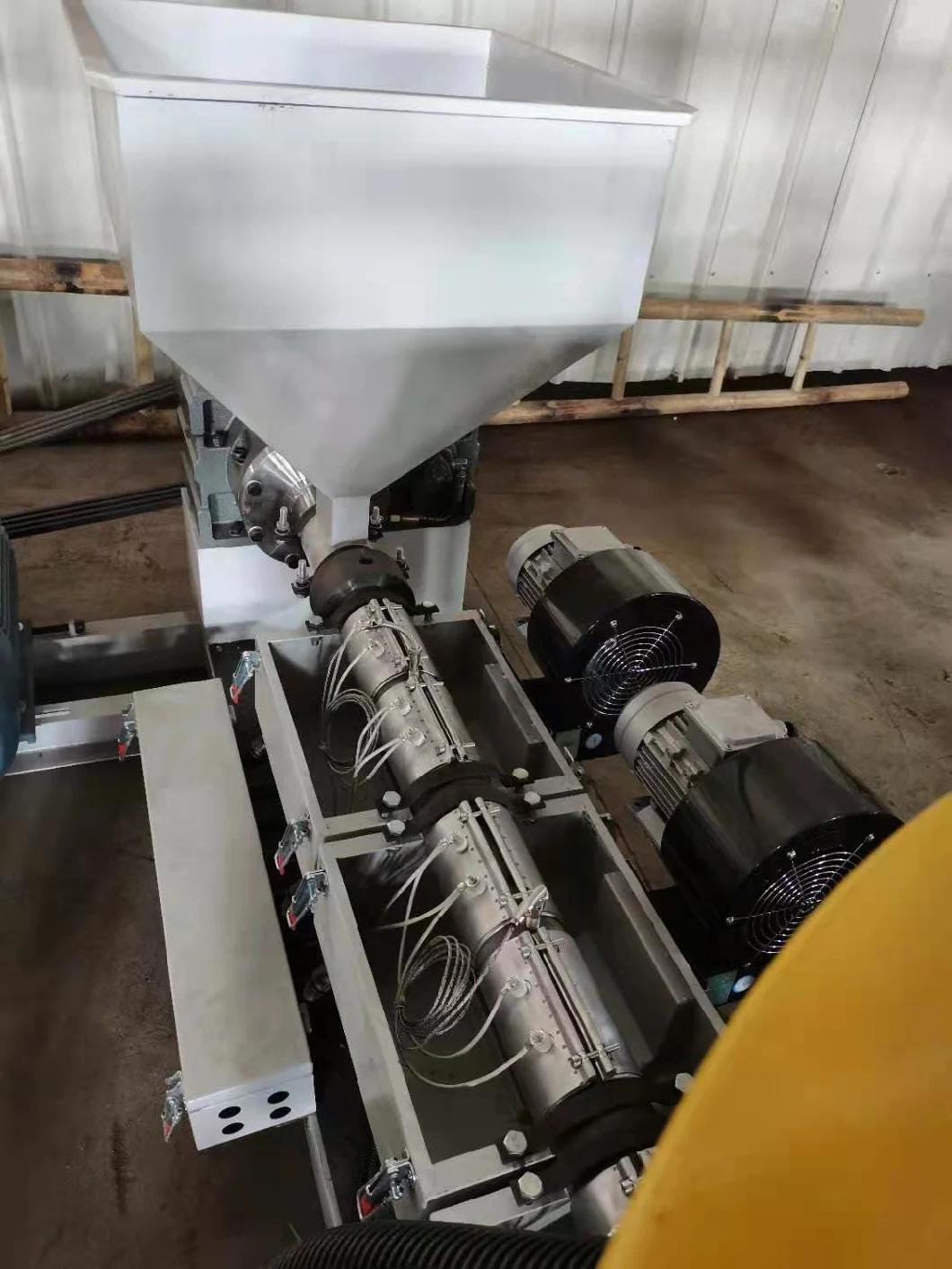

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

OPTIONAL EQUIPMENT:
1) AUTO LOADER
2) AIR SHAFT


Main Technical Variables:

Model	B50	B55	B65	B65-1
Diameter of screw	Φ50	Φ55	Φ60	Φ65
Reduced diameter of film(mm)	100-600	200-800	300-1000	400-1200
Single-face thickness of film(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max. Extrusion(kg/h)	35	50	65	80
L/D	28:1	28:1	28:1	28:1
Power of main motor(kw)	11	15	18.5	22
Power of Traction motor(kw)	1.1	1.1	1.5	1.5
Heating Power(kw)	11	13	19	21
Outline diameter(L*W*H)(mm)	4800*1900*3500	5500*2100*3800	6500*2300*4200	6500*2500*6000
Weight(T)	2T	2.5T	3T	3.2T
