• Model NO.：HJF240
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Export Standard Packing
• Specification：5.4m*1.5m*2
• Trademark：HAIJIA
• Origin：China
• HS Code：8477101090
• Production Capacity：2000 Sets

Basic Info.

Model NO. HJF240 Computerized Computerized Certification CE, ISO9001:2008 Transport Package Export Standard Packing Specification 5.4m*1.5m*2 Trademark HAIJIA Origin China HS Code 8477101090 Production Capacity 2000 Sets

Product Description

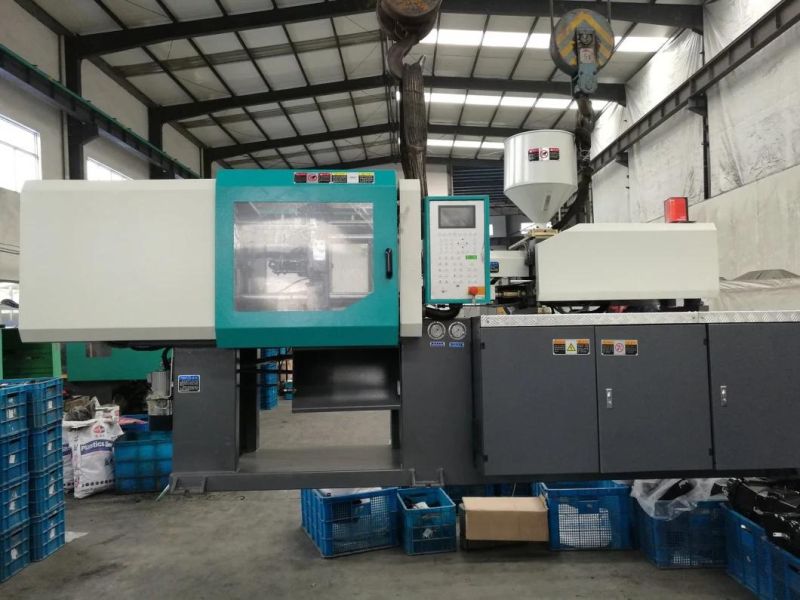

Plastic Injection Molding Machine

Model: HJF140

Specification
Screw Diameter(mm): A: 38   B: 42   C: 45
Screw L/D Ratio(L/D): A: 22.1   B: 21.6   C: 19.5
Shot Size (Theoretical) cm3: A: 193  B: 227   C: 278
Injection Weight (PS) (g):  A: 176  B: 206   C: 252
Injection Rate(g/s):   A: 94  B: 105   C: 135
Injection Pressure(Mpa):  A: 205     B: 159   C: 140
Screw Speed(rpm):  0~220

Clamp Tonnage(KN): 1400
Toggle Stroke(mm): 380
Space Between Tie Bars(mm): 420X420
Max. Mold Height(mm): 450
Min. Mold Height(mm): 170
Ejector Stroke(mm): 120
Ejector Tonnage(KN): 33

Max. Pump Pressure(Mpa): 16
Pump Motor Power(KW): 13
Heater Power(KW): 7.2
Machine Dimension(LXWXH) (m): 4.5X1.2X1.7
Machine Weight(t): 4.2
Oil Tank Capacity(L): 230
