• Model NO.：ZE26
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Wood
• Specification：As required
• Trademark：JOINER
• Origin：Sichuan
• HS Code：8477900000
• Production Capacity：2000PCS,Year

Standard Barrel Parameter Table (selection table)

Model

Size(mm) W.H.L

Hole Diameter(mm)

Center Distance(mm)

JN-20

115.105.132

Φ23

18.4

JN-30

135.115.120

Φ30.6

26

JN-35

140.120.140

Φ36

30

JN-36

160.140.150

Φ36

30

JN-40

175.145.160

Φ41.6

34.5

JN-50

190.150.190

Φ51

42

JN-52

200.155.210

Φ52

43

JN-53

210.160.220

Φ53.3

48

JN-58

220.175.240

Φ58

48

JN-60

210.170.240

Φ60

52

JN-65

210.170.240

Φ63

52

JN-75

260.200.290

Φ71.8

60

JN-85

280.215.320

Φ81.9

67.8

JN-92

310.240.360

Φ92

78

JN-95

310.240.360

Φ94

78

JN-110

330.240.420

Φ109

91.5

JN-125

390.290.500

Φ125

98

JN-135

370.300.410

Φ134

110

2. JOINER supplies cylinder element suitable for the following extruder products lines :
-APV        -KOBE           -OMC
-Buhler      -KraussMaffei      -Theysohn
-Buss       -Berstorff-          -Toshiba
-Clextral     -Labtech          -USEON
-Coperion     -Lantai          - others
-JSW        -Leistritz
-Keya        -Maris

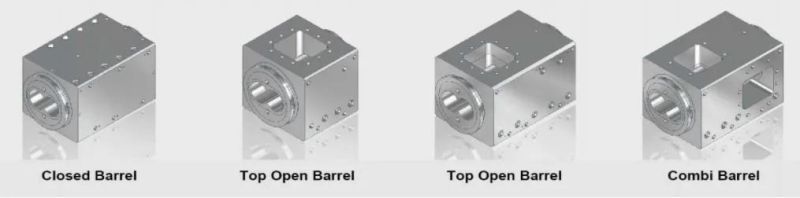

3. Types of  Barrels
Standard for classification: Design geometry           Standard for classification: With inner or not
* Feeding barrel                                                               * Solid barrel
* Closed barrel                                                                 * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting

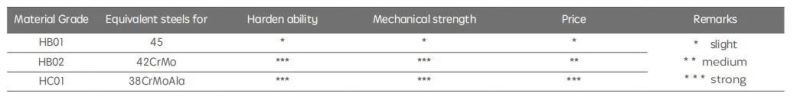

4. We offer a broader choice of materials:

Solid barrels
*Nitrided steel barrels            *Tooling steel barrels        *Bimetallic

Barrel with installed inner
* made of PM-HIP solid          *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.

5. Different Cooling Channel


Example drawing:

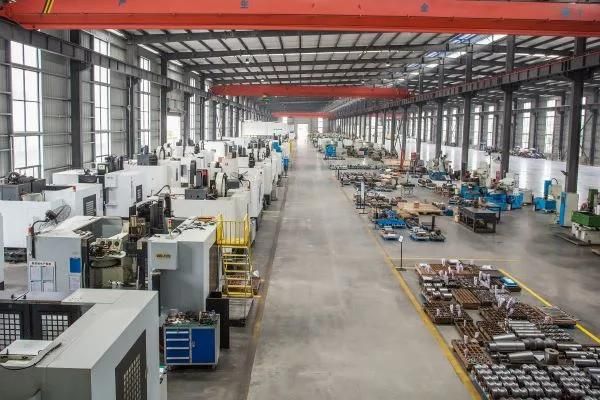

6. Our factory is state-of-the art and spans over 20,000 square meters. The factory houses more than 130 sets of different domestic and foreign high precision production equipment, with the degree of numerical control up to 95%.

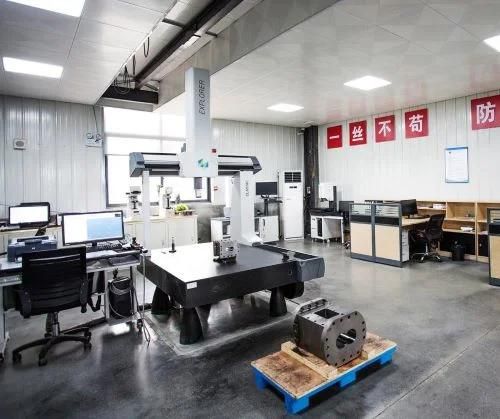

7. We have three coordinate detectors, two dimensional image measuring instruments, a metallographic analyzer, an ultrasonic flaw detector, an element analyzer and more than 10 kinds of advanced detection equipment, which guarantees its quality stability!

8. Service Network Assurance

We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.

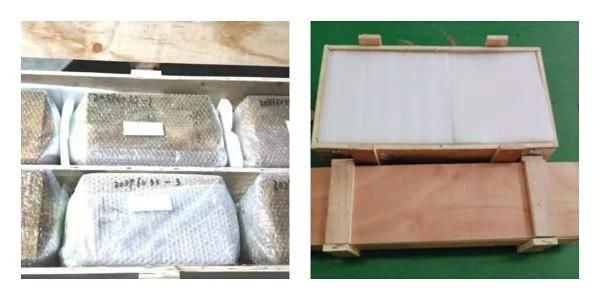

9. Packing details :

    According to your order quantities and products sizes to choose wooden boxes or cartons to pack:

a. Rust-proof oil processing,

b. Oiled paper packages,

c. Bubble wrap package,

d. Special foam packaging,

e. Packing,


10. FRQ

1. Q: Are you a factory or trading company?
 ----A: A factory
2. Q: Where is your factory located? How can I visit there?
-----A: Our factory is located in Chengdu, Sichuan Province, China,
1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport;
All our clients, from domestic or abroad, are warmly welcome to visit us!

3.Q: What makes you different with others?
----A: 1) Our Excellent Service
 For a quick, no hassle quote just send email to us
 We promise to reply with a price within 24 hours - sometimes even within the hour.

2) Our quick manufacturing time
For Normal orders, we will promise to produce within 30 working days.
As a manufacturer, we can ensure the delivery time according to the formal contract.

 4.Q: How about the delivery time?
----A: This depends on the product. Typically standard products are delivered within 45 days.

5. Q: What is the term of payment?
----A: 1) T/T payment;   2) L/C;

6.Q: May I know the status of my order?
----A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
